Parking, License Plate and Side Marker Lamps Do Not Illuminate

  1. CHECK COMBINATION SWITCH INPUT SIGNAL

    With CONSULT-II

    Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "LIGHT SW 1 ST" turns ON-OFF linked with operation of lighting switch.

    When lighting switch is 1ST position : LIGHT SW 1 ST ON

    Without CONSULT-II

    Refer to "COMBINATION SWITCH INSPECTION ".

    OK or NG

    OK : GO TO 2.

    NG : Check combination switch (lighting switch). Refer to "COMBINATION SWITCH INSPECTION ".

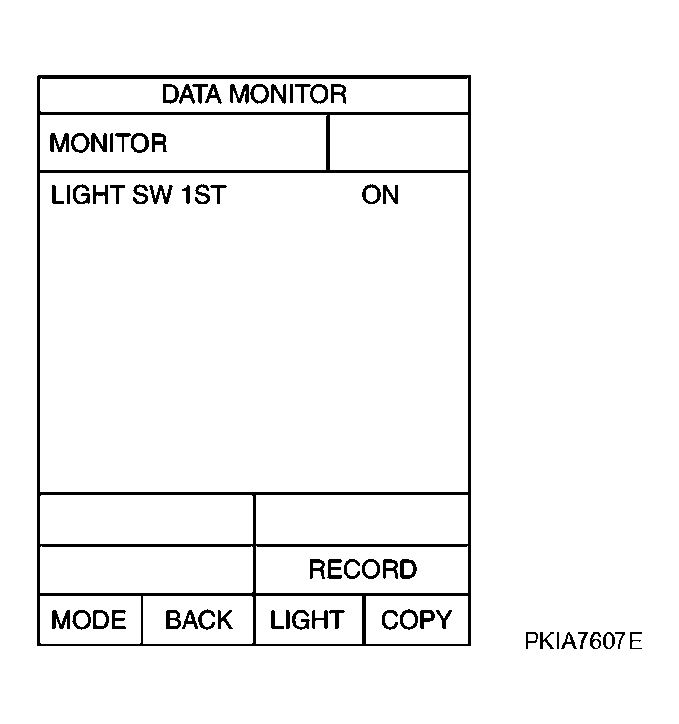

    Fig 1: Identifying Combination Switch
    G04078332Courtesy of NISSAN MOTOR CO., U.S.A.
  2. ACTIVE TEST

    With CONSULT-II

    1. Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
    2. Select "TAIL LAMP" on "SELECT TEST ITEM" screen.
    3. Touch "ON" screen.
    4. Make sure parking, license plate and side marker lamp operation.

      Parking, license plate and side marker lamp should operate.

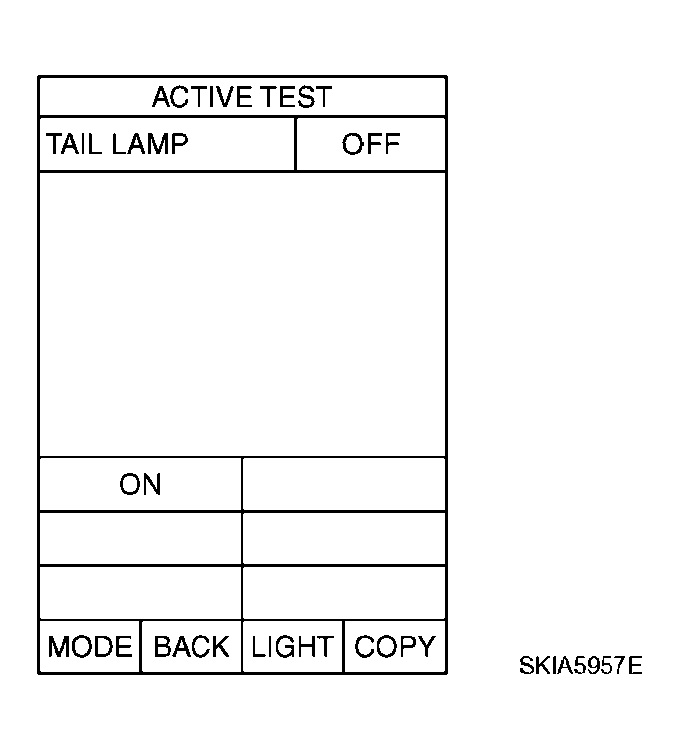

      Fig 2: Identifying License Plate And Side Marker Lamp
      G04078333Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start auto active test. Refer to "AUTO ACTIVE TEST ".
    2. Make sure parking, license plate and side marker lamp operation.

      Parking, license plate and side marker lamp should operate.

    OK or NG

    OK : GO TO 3.

    NG : GO TO  4.

  3. CHECK IPDM E/R
    1. Select "IPDM E/R" on CONSULT-II, and select "DATA MONITOR" on "SELECT DIAG MODE" screen.
    2. Make sure "TAIL & CLR REQ" turns ON when lighting switch is in 1ST position.

      When lighting switch is 1ST position : TAIL & CLR REQ ON

    OK or NG

    OK : Replace IPDM E/R.

    NG : Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".

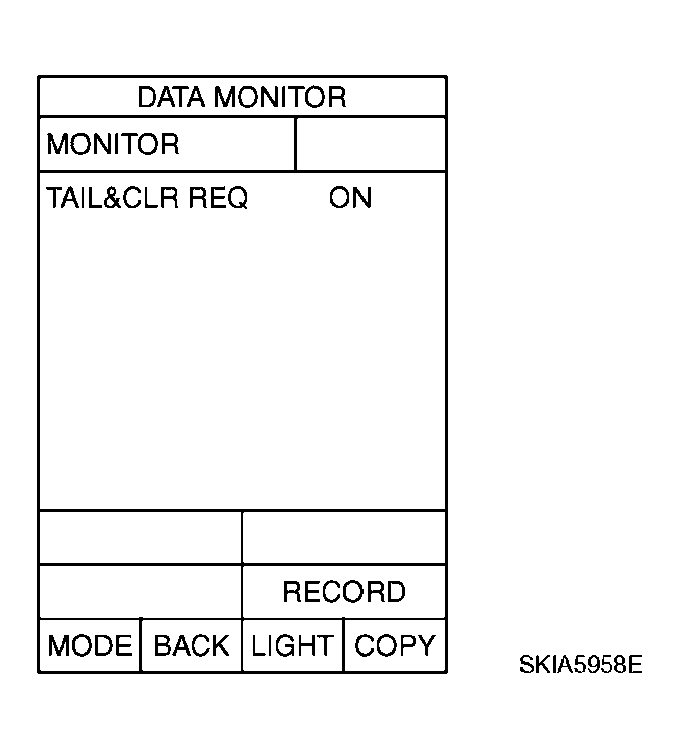

    Fig 3: Identifying License Plate And Side Marker Lamp
    G04078334Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK INPUT SIGNAL

    With CONSULT-II

    1. Turn ignition switch OFF.
    2. Disconnect front side marker, parking lamp, license plate lamp and rear combination lamp connectors.
    3. Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
    4. Select "TAIL LAMP" on "SELECT TEST ITEM" screen.
    5. Touch "ON" screen.
    6. When parking, license plate and side marker is operating, check voltage between front side marker lamp, parking lamp, license plate lamp, rear combination lamp harness connector and ground.

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Disconnect front side marker, parking lamp, license plate lamp and rear combination lamp connectors.
    3. Start auto active test. Refer to "AUTO ACTIVE TEST ".
    4. When parking, license plate and side marker is operating, check voltage between front side marker lamp, parking lamp, license plate lamp, rear combination lamp harness connector and ground.
      VOLTAGE SPECIFICATION

      (+) (-) Voltage
      Front side marker lamp connector Terminal
      RH E22 1 Ground Battery voltage
      LH E42

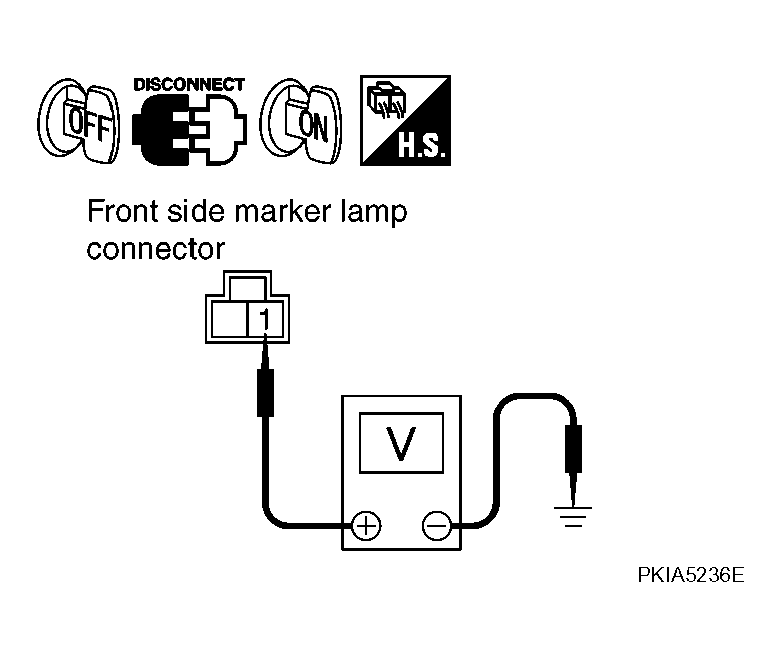

      Fig 4: Identifying Input Signal
      G04078335Courtesy of NISSAN MOTOR CO., U.S.A.
      VOLTAGE SPECIFICATION

      (+) (-) Voltage
      Parking lamp connector Terminal
      RH E23 2 Ground Battery voltage
      LH E43

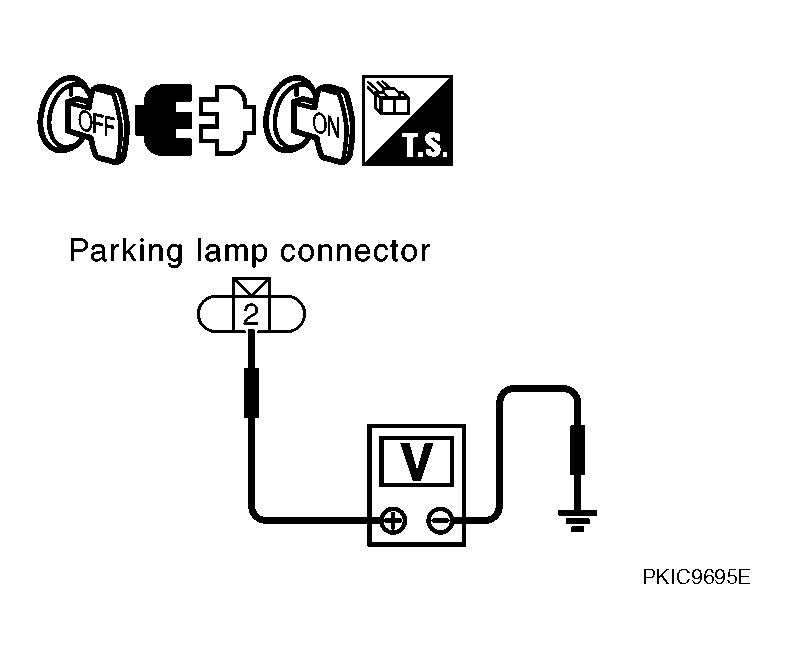

      Fig 5: Identifying Parking Plug Connector
      G04078336Courtesy of NISSAN MOTOR CO., U.S.A.
      TERMINALS VOLTAGE SPECIFICATIONS

      (+) (-) Voltage
      License plate lamp connector Terminal
      RH D111 1 Ground Battery voltage
      LH D110

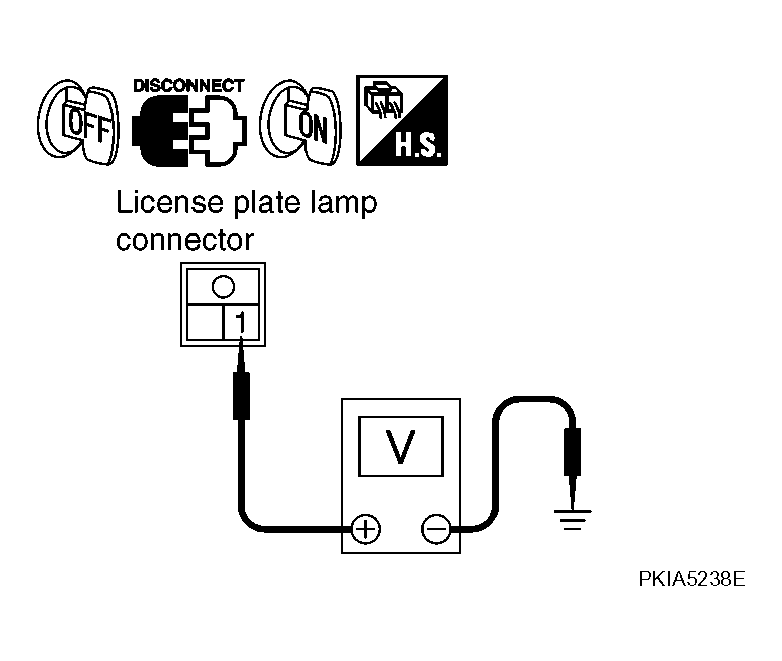

      Fig 6: Identifying License Plate Lamp Connector
      G04078337Courtesy of NISSAN MOTOR CO., U.S.A.
      VOLTAGE SPECIFICATION

      (+) (-) Voltage
      Rear combination lamp (Side marker) connector Terminal
      RH B219 1 Ground Battery voltage
      LH B57

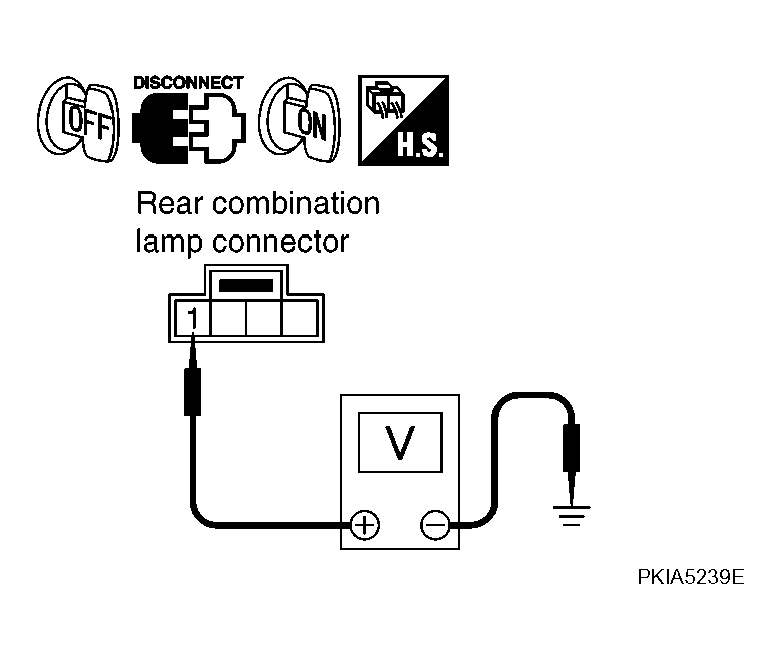

      Fig 7: Identifying Rear Combination Lamp Connector
      G04078338Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : GO TO  6.

    NG : GO TO 5.

  5. CHECK PARKING, LICENSE PLATE AND SIDE MARKER LAMPS CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect IPDM E/R connector.
    3. Check continuity between IPDM E/R harness connector and front side marker lamp harness connector.
      VOLTAGE SPECIFICATION

      IPDM E/R Front side marker lamp Continuity
      Connector Terminal Connector Terminal
      E7 22 RH E22 1 Yes
      LH E42

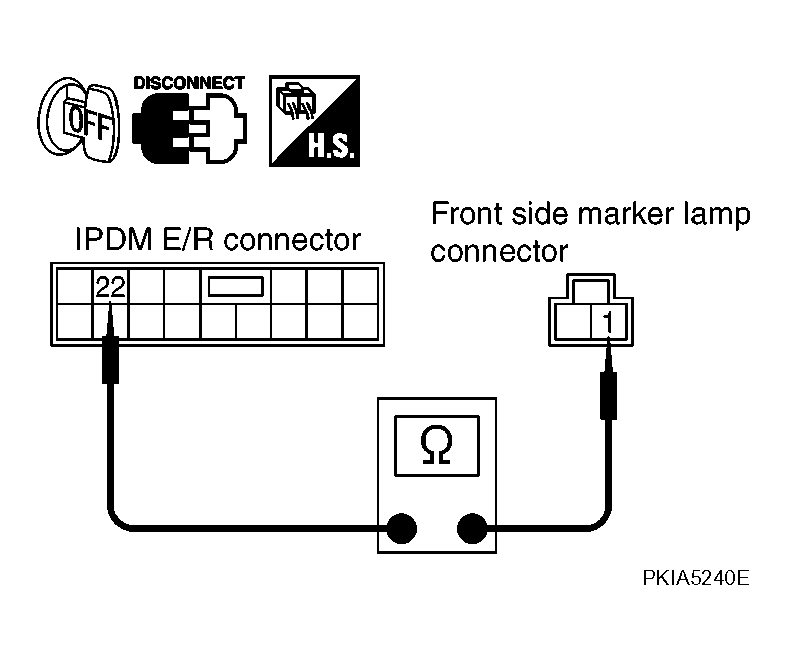

      Fig 8: Identifying Front Side Marker Lamp Connector
      G04078339Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check continuity between IPDM E/R harness connector and parking lamp harness connector.
      CONNECTOR SPECIFICATION

      IPDM E/R Parking lamp Continuity
      Connector Terminal Connector Terminal
      E7 22 RH E23 2 Yes
      LH E43

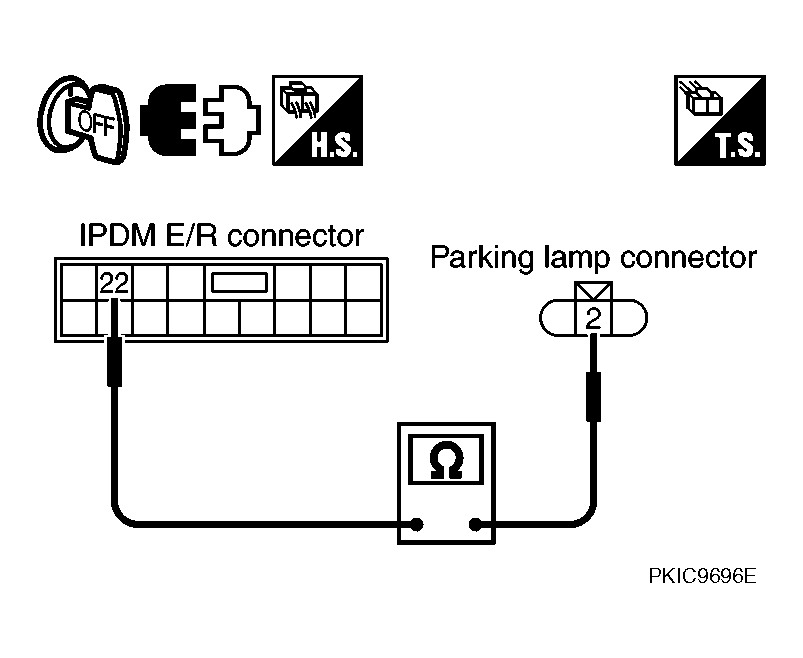

      Fig 9: Identifying Parking Lamp Connector
      G04078340Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Check continuity between IPDM E/R harness connector and license plate lamp harness connector.
      CONNECTOR SPECIFICATION

      IPDM E/R License plate lamp Continuity
      Connector Terminal Connector Terminal
      E7 22 RH D111 1 Yes
      LH D110

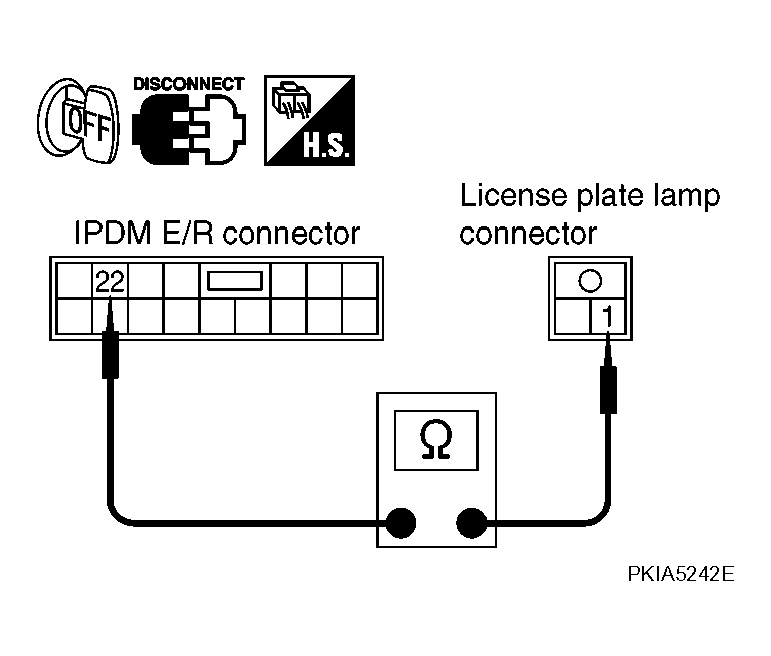

      Fig 10: Identifying License Plate Lamp Connector
      G04078341Courtesy of NISSAN MOTOR CO., U.S.A.
    6. Check continuity between IPDM E/R harness connector and rear combination lamp harness connector.
      CONNECTOR SPECIFICATION

      IPDM E/R Rear combination lamp (Side marker) Continuity
      Connector Terminal Connector Terminal
      E7 22 RH B219 1 Yes
      LH B57

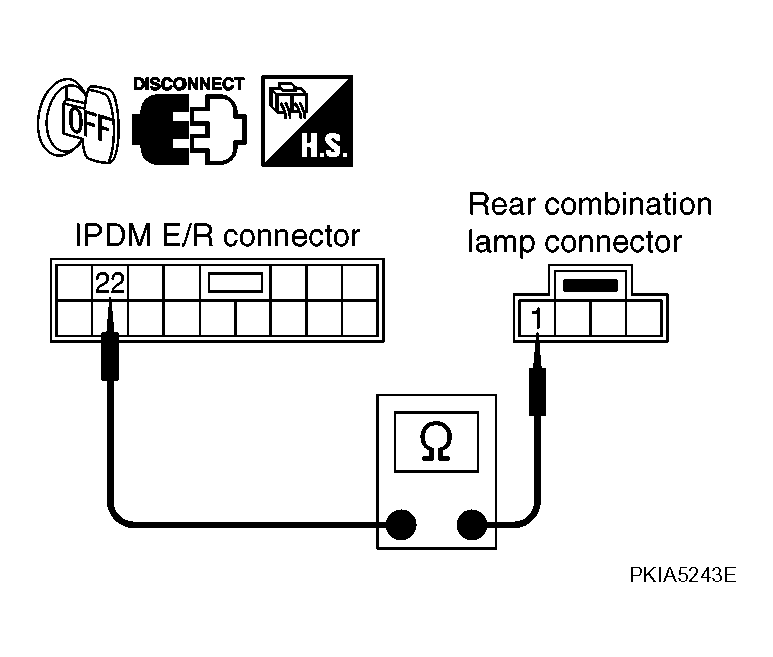

      Fig 11: Identifying Rear Combination Lamp Connector
      G04078342Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : Replace IPDM E/R.

    NG : Repair harness or connector.

  6. CHECK GROUND
    1. Turn ignition switch OFF.
    2. Check continuity between front side maker lamp harness connector and ground.
      CONNECTOR SPECIFICATION

      Front side marker lamp connector Terminal Ground Continuity
      RH E22 2 Yes
      LH E42

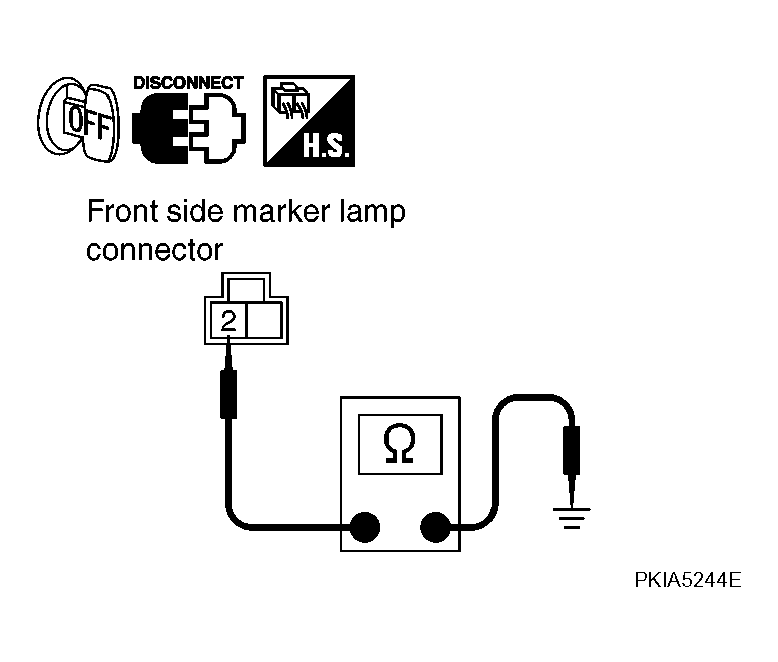

      Fig 12: Identifying Front Side Marker Lamp Connector
      G04078343Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between parking lamp harness connector and ground.
      CONNECTOR SPECIFICATION

      Parking lamp connector Terminal Ground Continuity
      RH E23 3 Yes
      LH E43

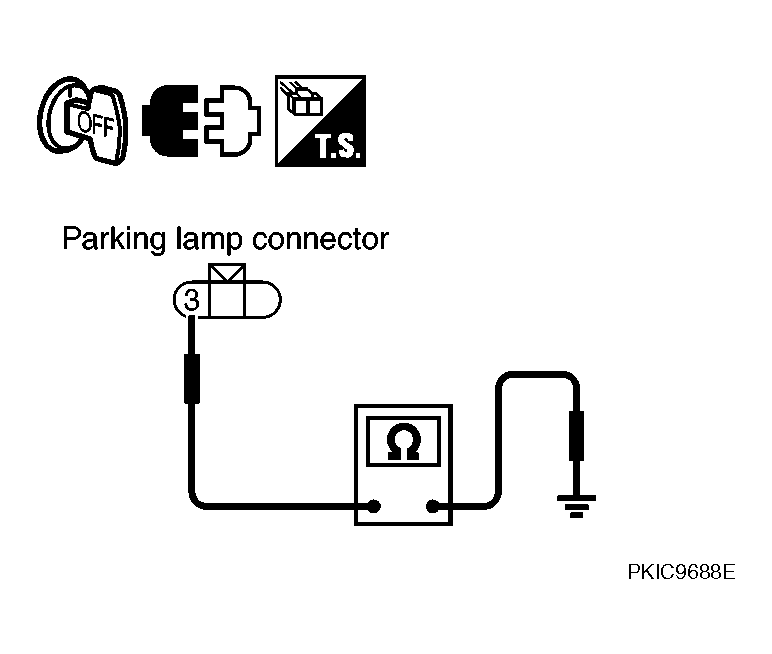

      Fig 13: Identifying Parking Lamp Connector
      G04078344Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check continuity between license plate lamp harness connector and ground.
      CONNECTOR SPECIFICATION

      License plate lamp connector Terminal Ground Continuity
      RH D111 2 Yes
      LH D110

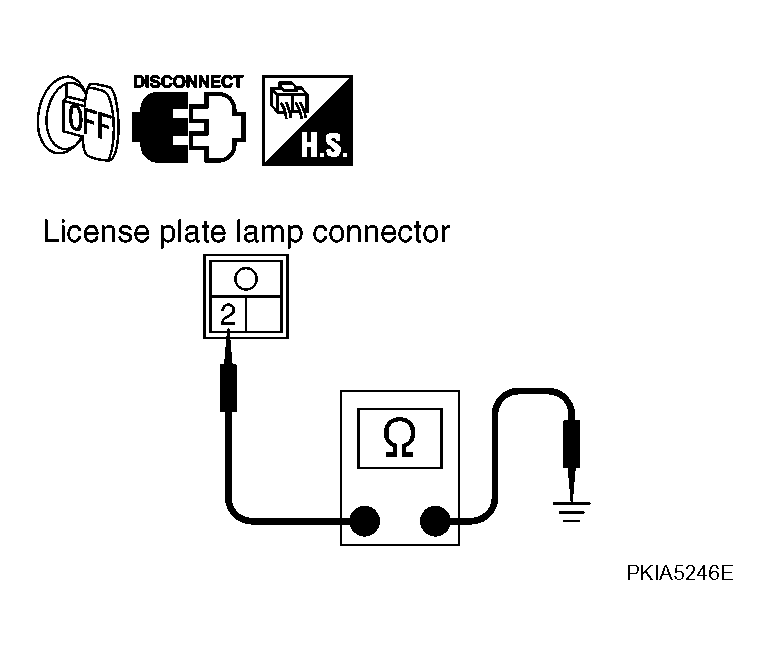

      Fig 14: Identifying Continuity Between License Plate Lamp Harness Connector And Ground
      G04078345Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Check continuity between rear combination lamp harness connector and ground.
      CONNECTOR SPECIFICATION

      Rear combination lamp (Side marker) connector Terminal Ground Continuity
      RH B219 2 Yes
      LH B57

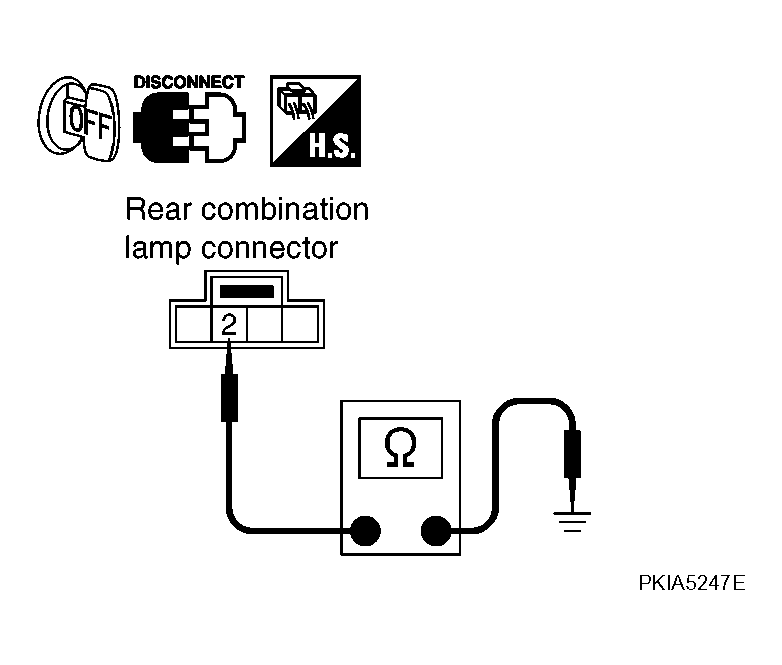

      Fig 15: Identifying Continuity Between Rear Combination Lamp Harness Connector And Ground
      G04078346Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : Check bulb.

    NG : Repair harness or connector.
