Wiring Diagram - ROOM/L -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

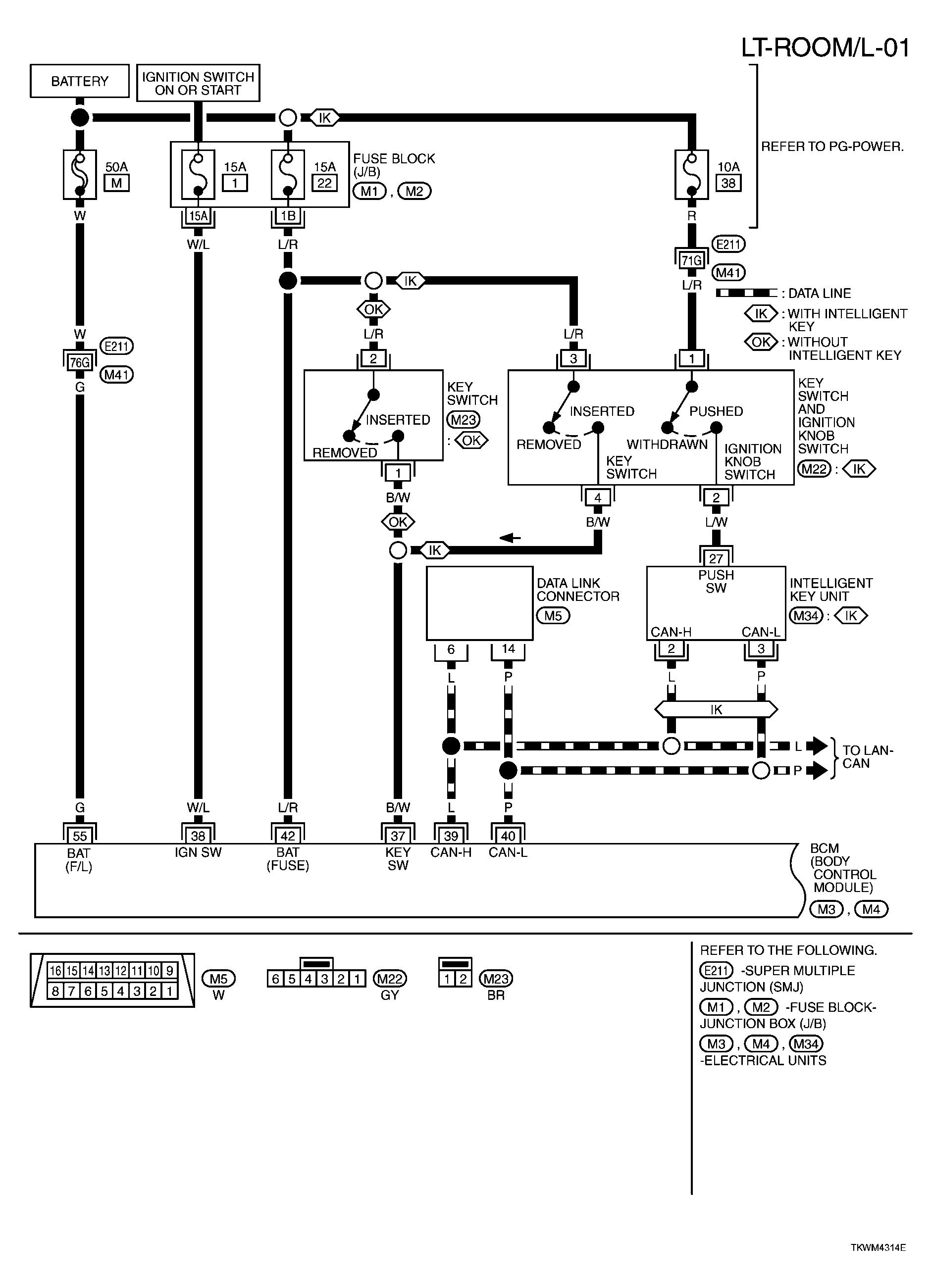

Fig 1: LT-Room/L-01 - Wiring Diagram

G04078360

Courtesy of NISSAN MOTOR CO., U.S.A.

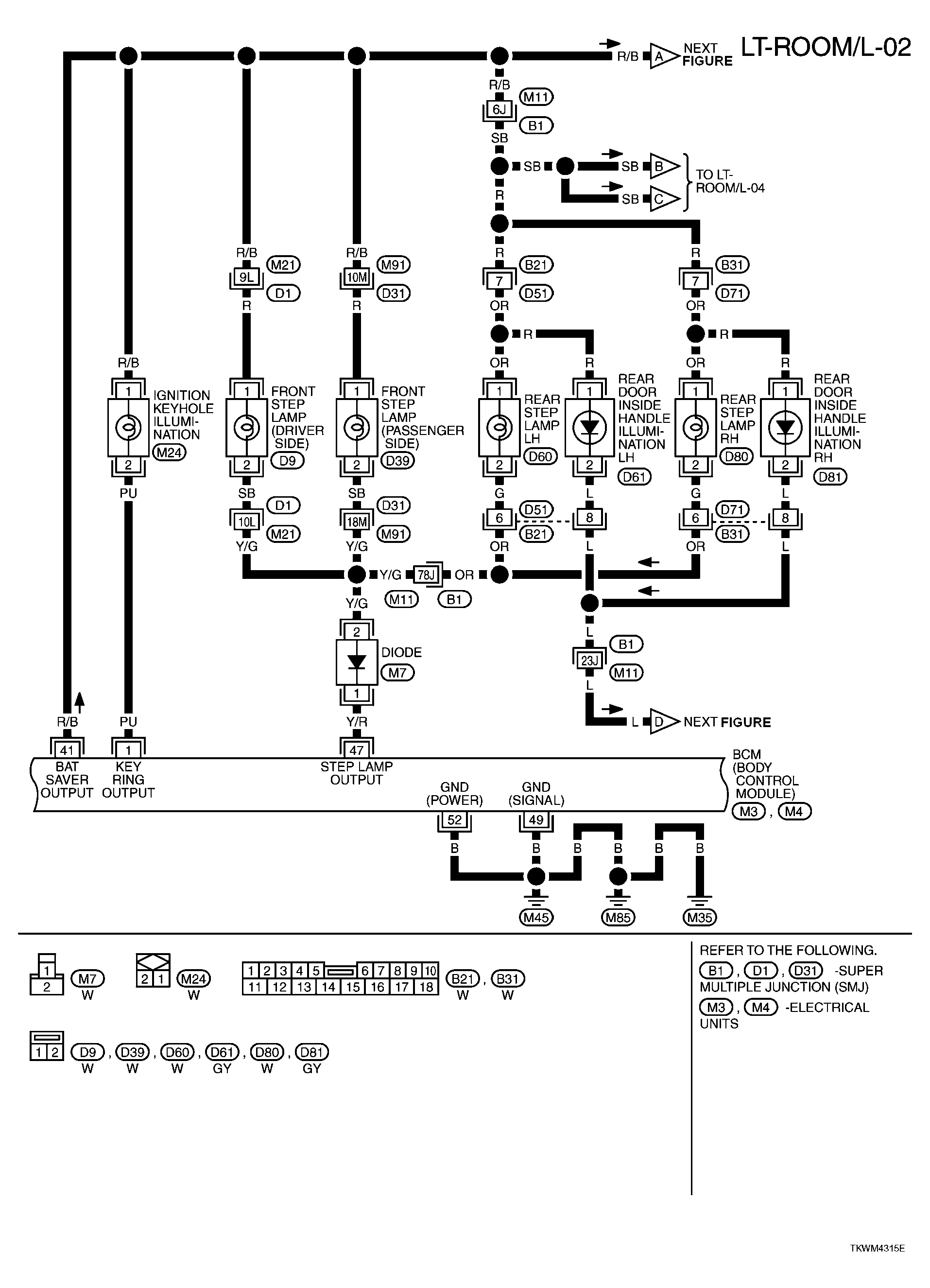

Fig 2: LT-Room/L-02 - Wiring Diagram

G04078361

Courtesy of NISSAN MOTOR CO., U.S.A.

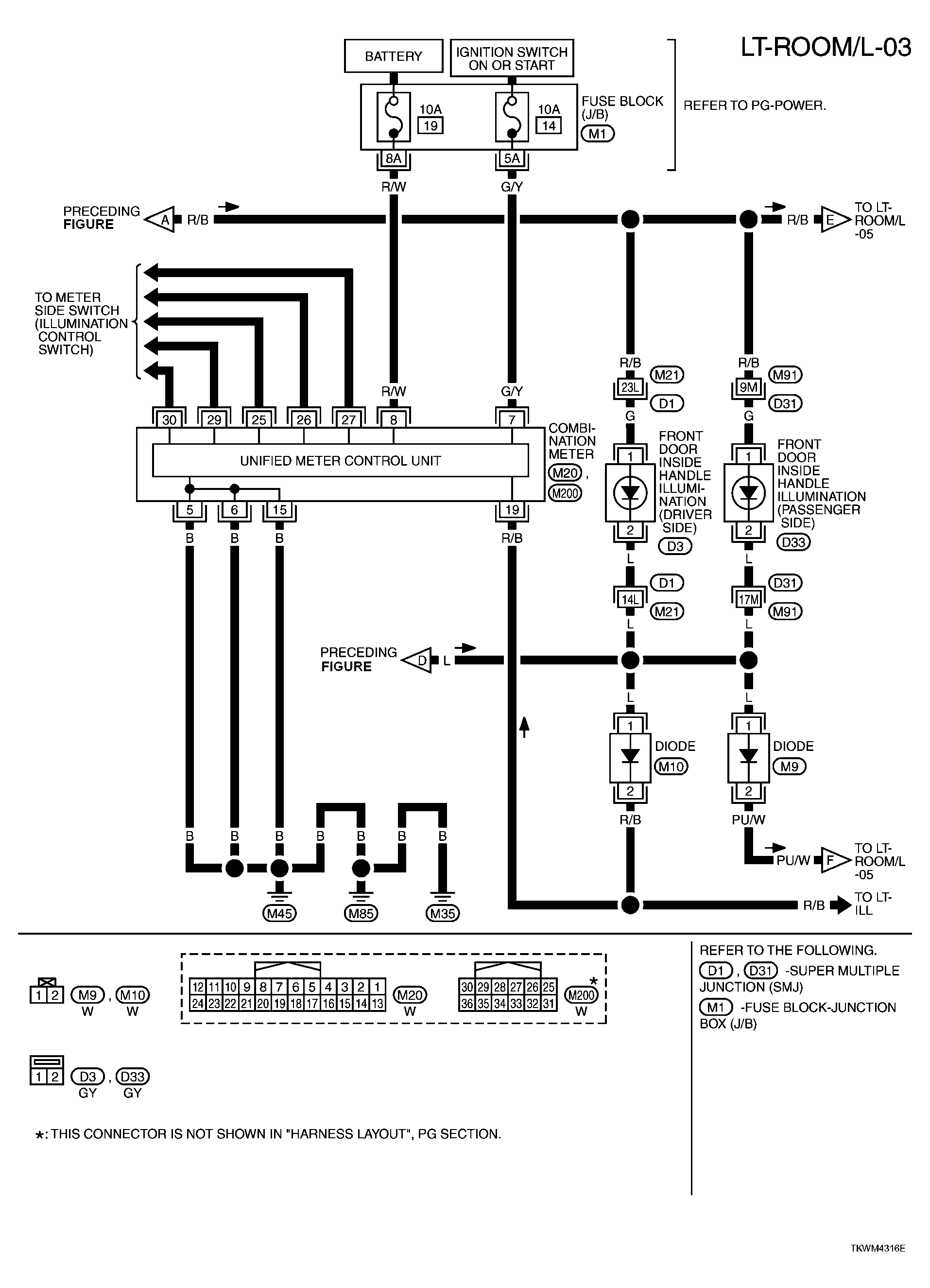

Fig 3: LT-Room/L-03 - Wiring Diagram

G04078362

Courtesy of NISSAN MOTOR CO., U.S.A.

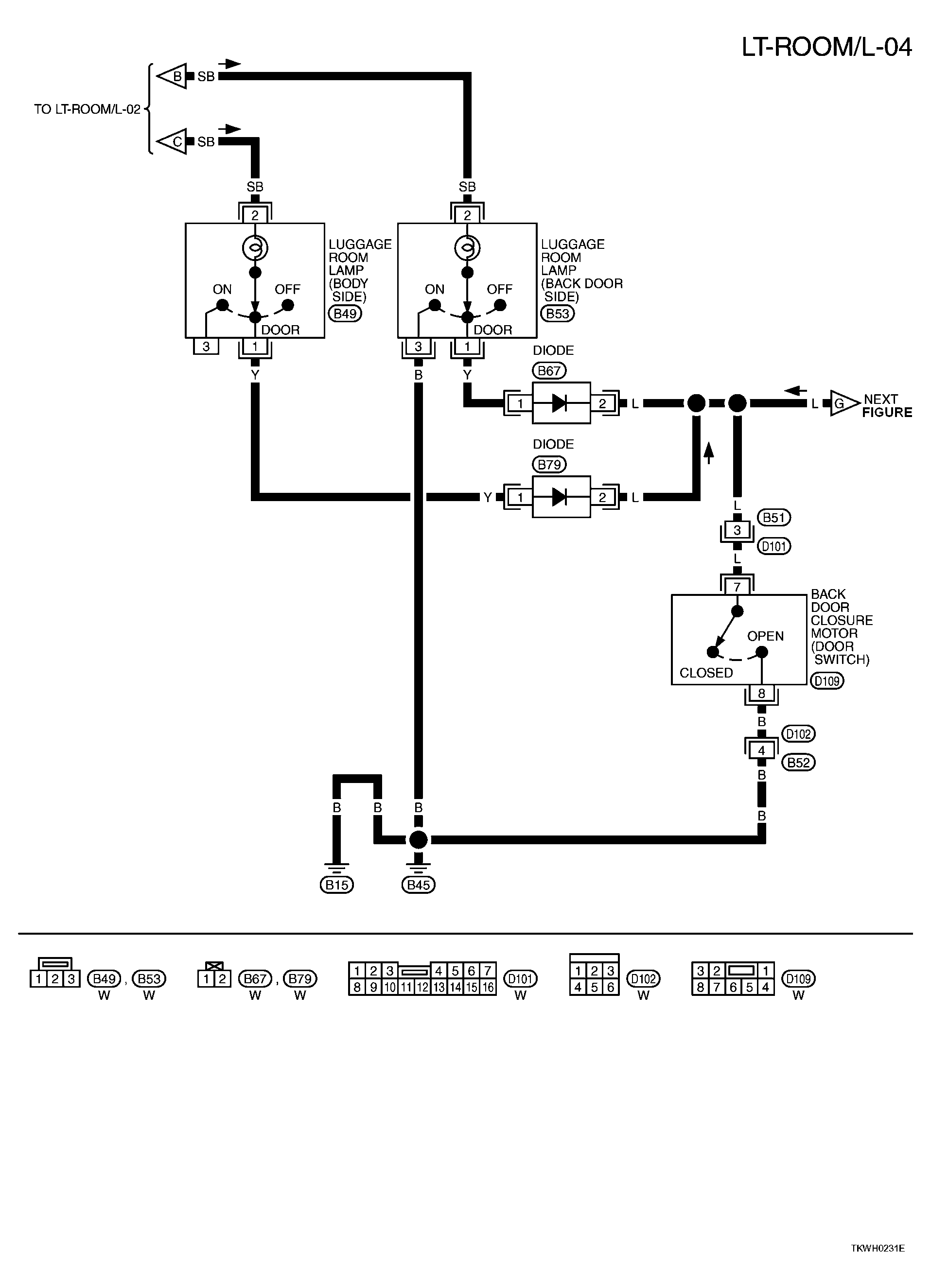

Fig 4: LT-Room/L-04 - Wiring Diagram

G04078363

Courtesy of NISSAN MOTOR CO., U.S.A.

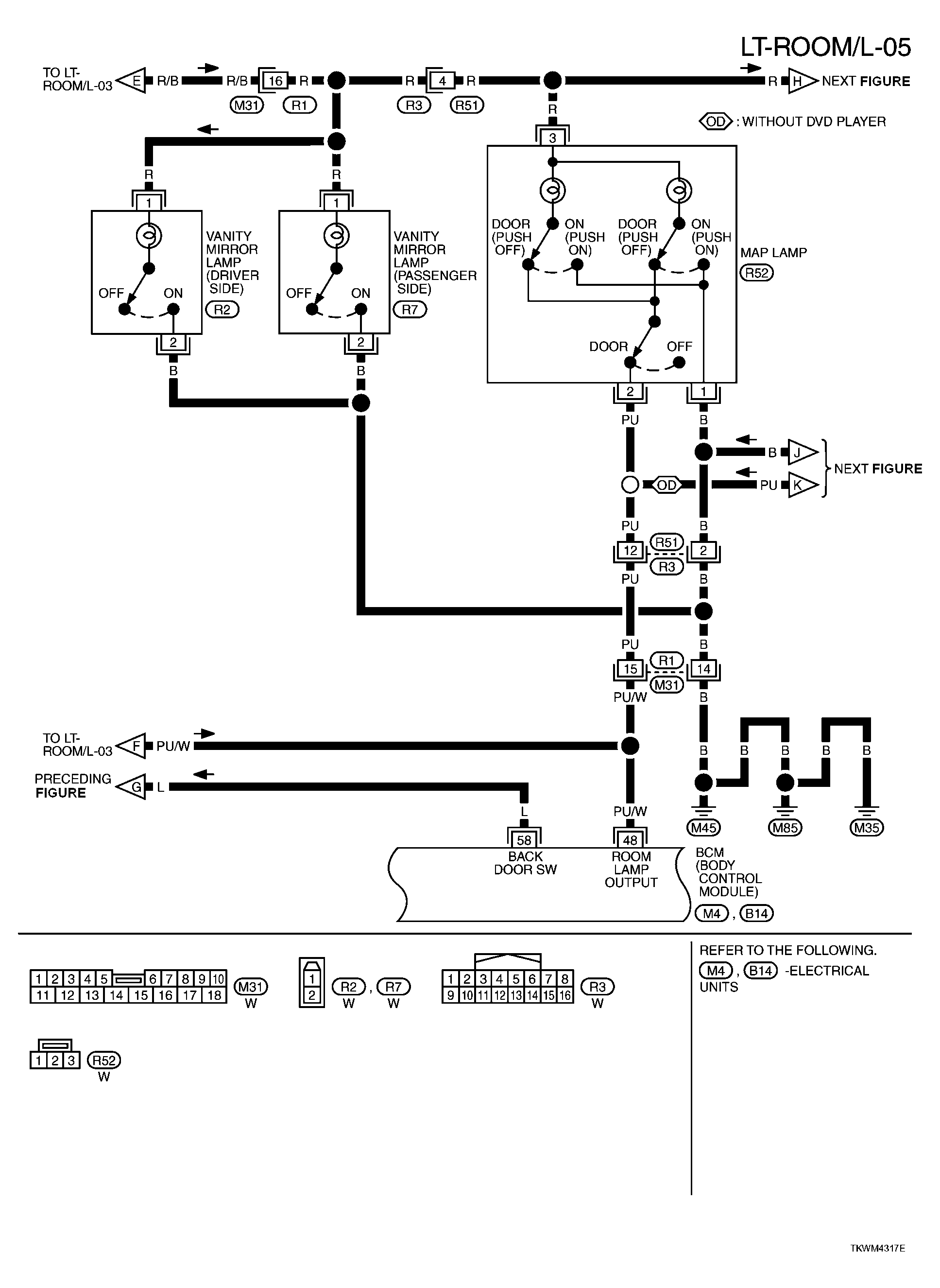

Fig 5: LT-Room/L-05 - Wiring Diagram

G04078364

Courtesy of NISSAN MOTOR CO., U.S.A.

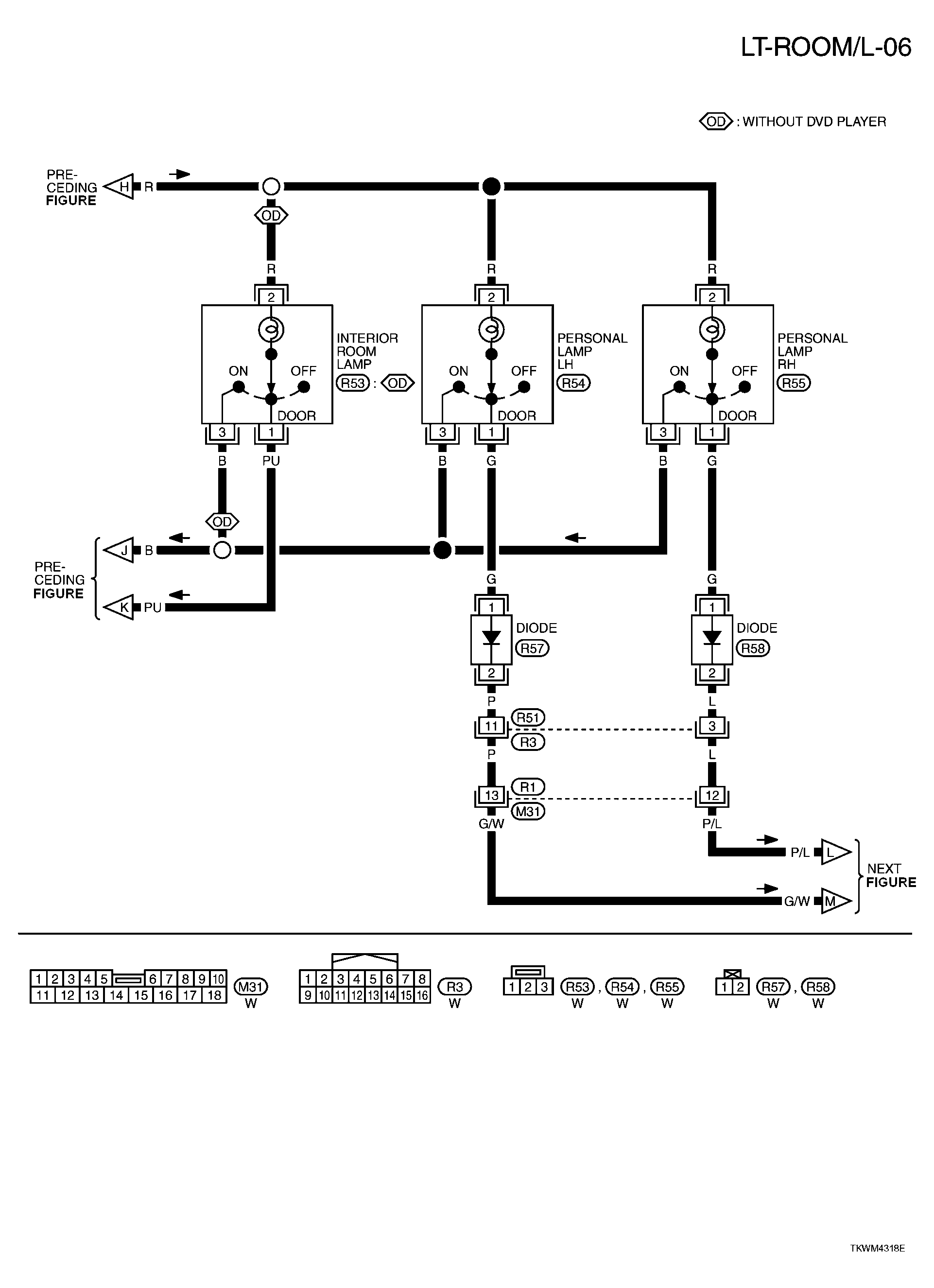

Fig 6: LT-Room/L-06 - Wiring Diagram

G04078365

Courtesy of NISSAN MOTOR CO., U.S.A.

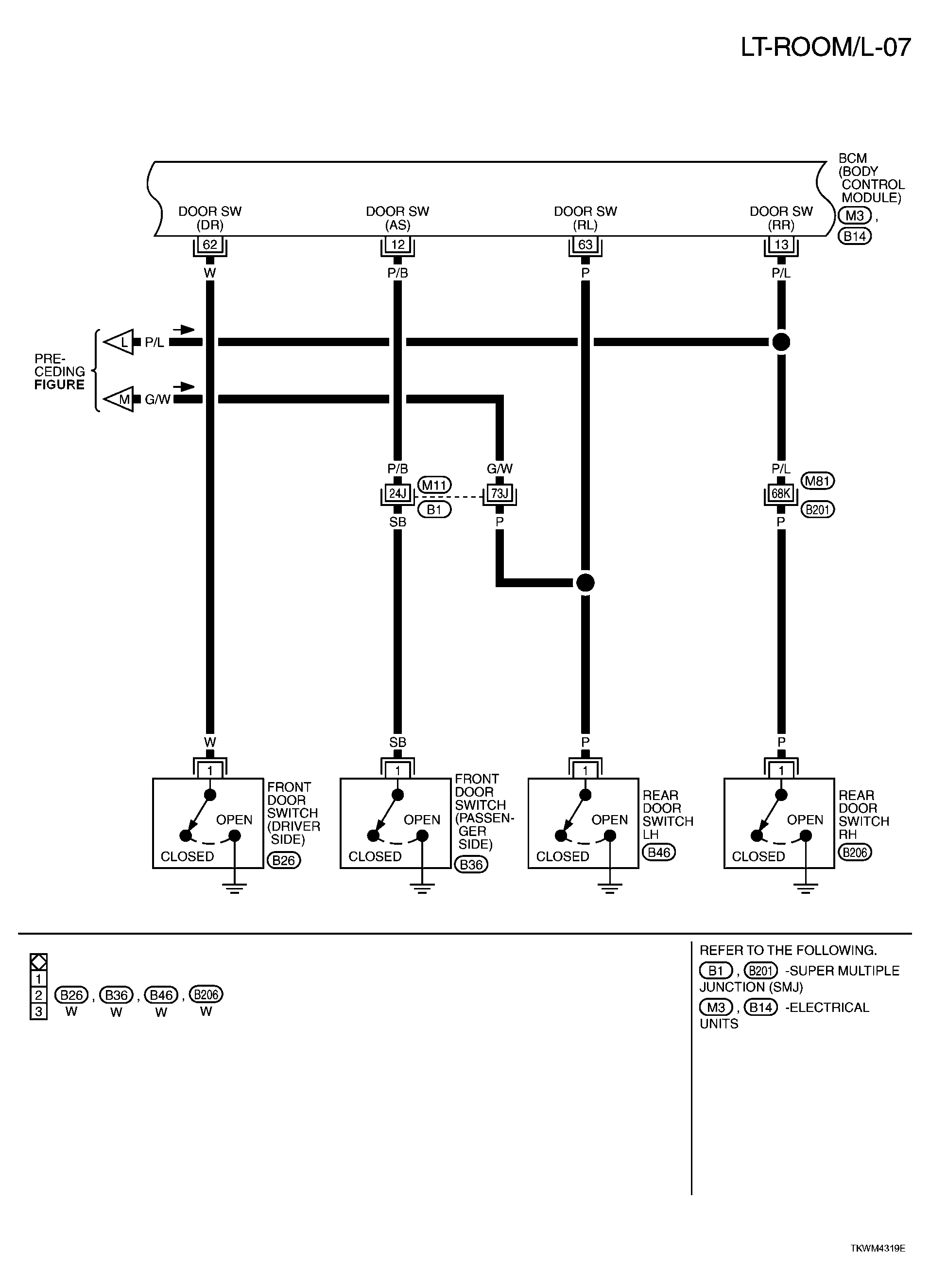

Fig 7: LT-Room/L-07 - Wiring Diagram

G04078366

Courtesy of NISSAN MOTOR CO., U.S.A.

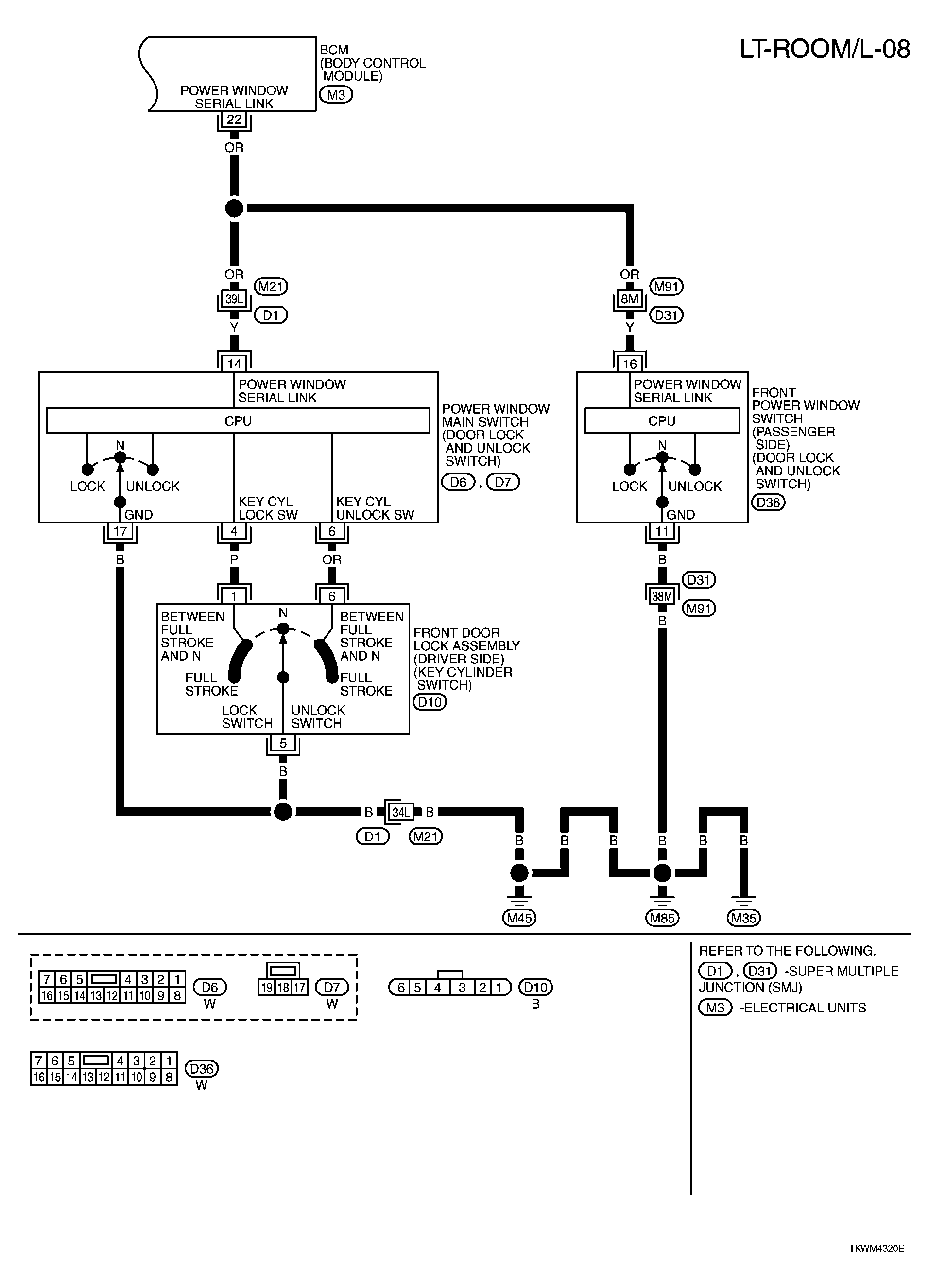

Fig 8: LT-Room/L-08 - Wiring Diagram

G04078367

Courtesy of NISSAN MOTOR CO., U.S.A.
