Wiring Diagram - ILL -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

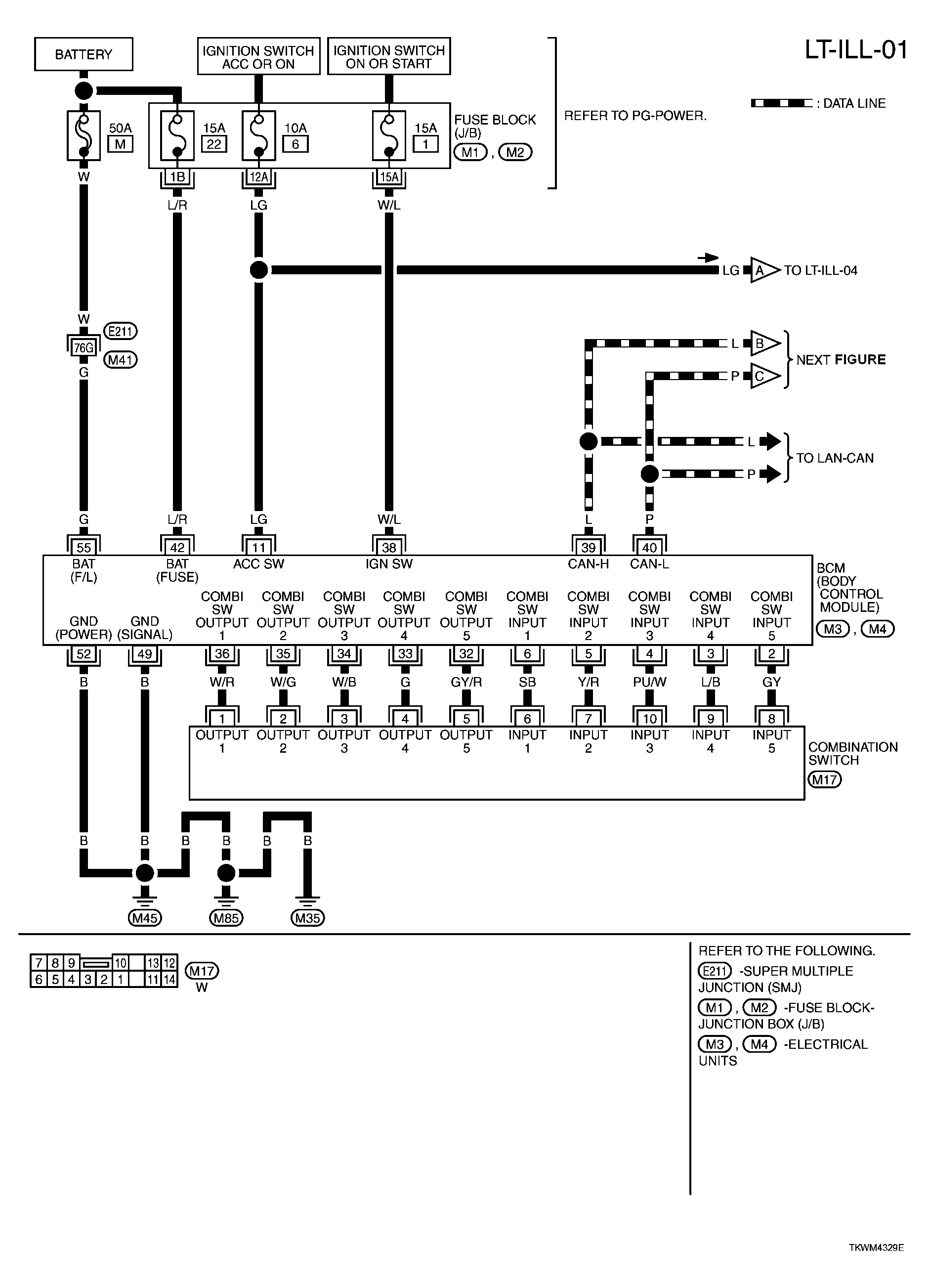

Fig 1: LT-ILL-01 - Wiring Diagram

G04078413

Courtesy of NISSAN MOTOR CO., U.S.A.

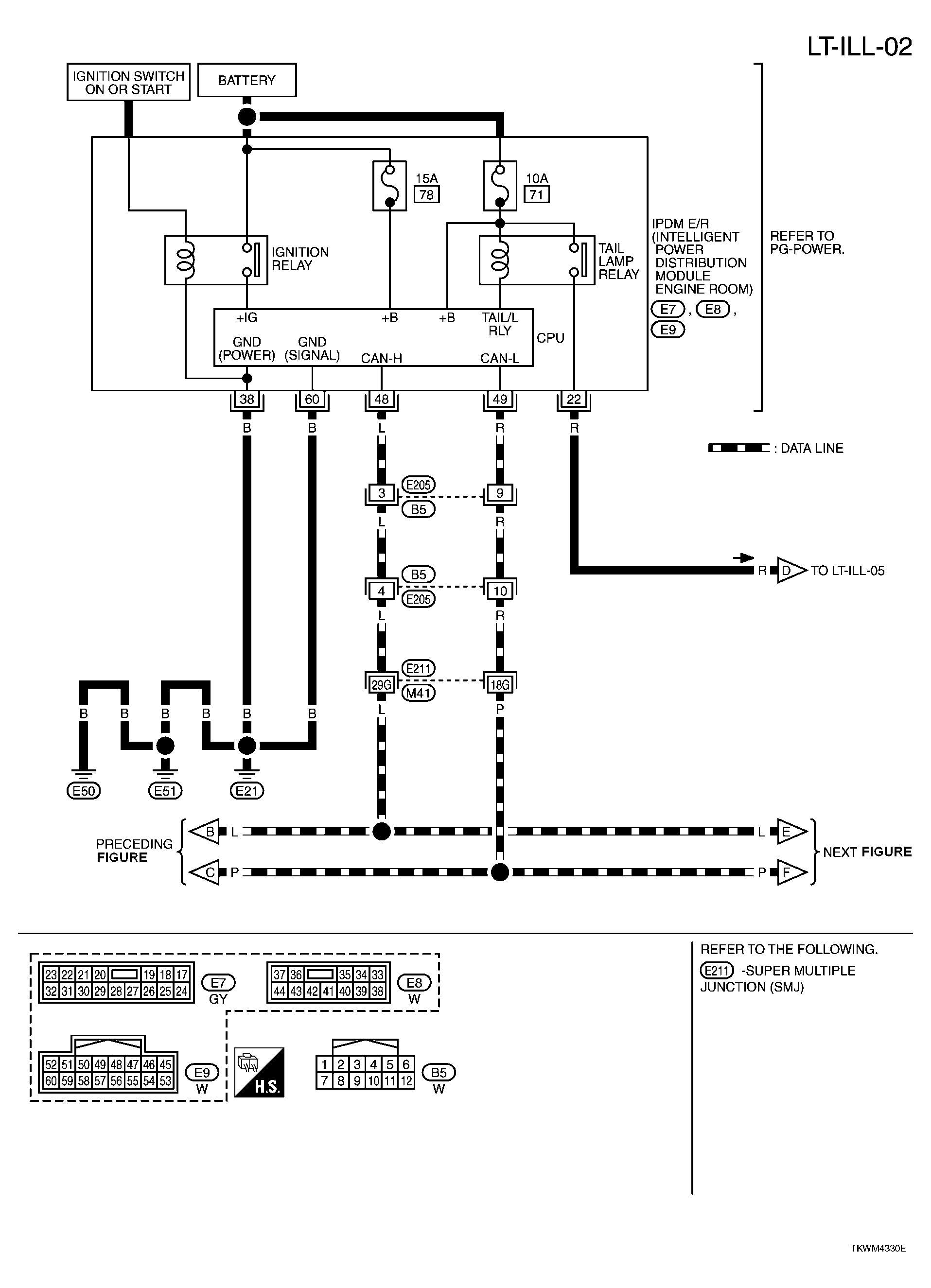

Fig 2: LT-ILL-02 - Wiring Diagram

G04078414

Courtesy of NISSAN MOTOR CO., U.S.A.

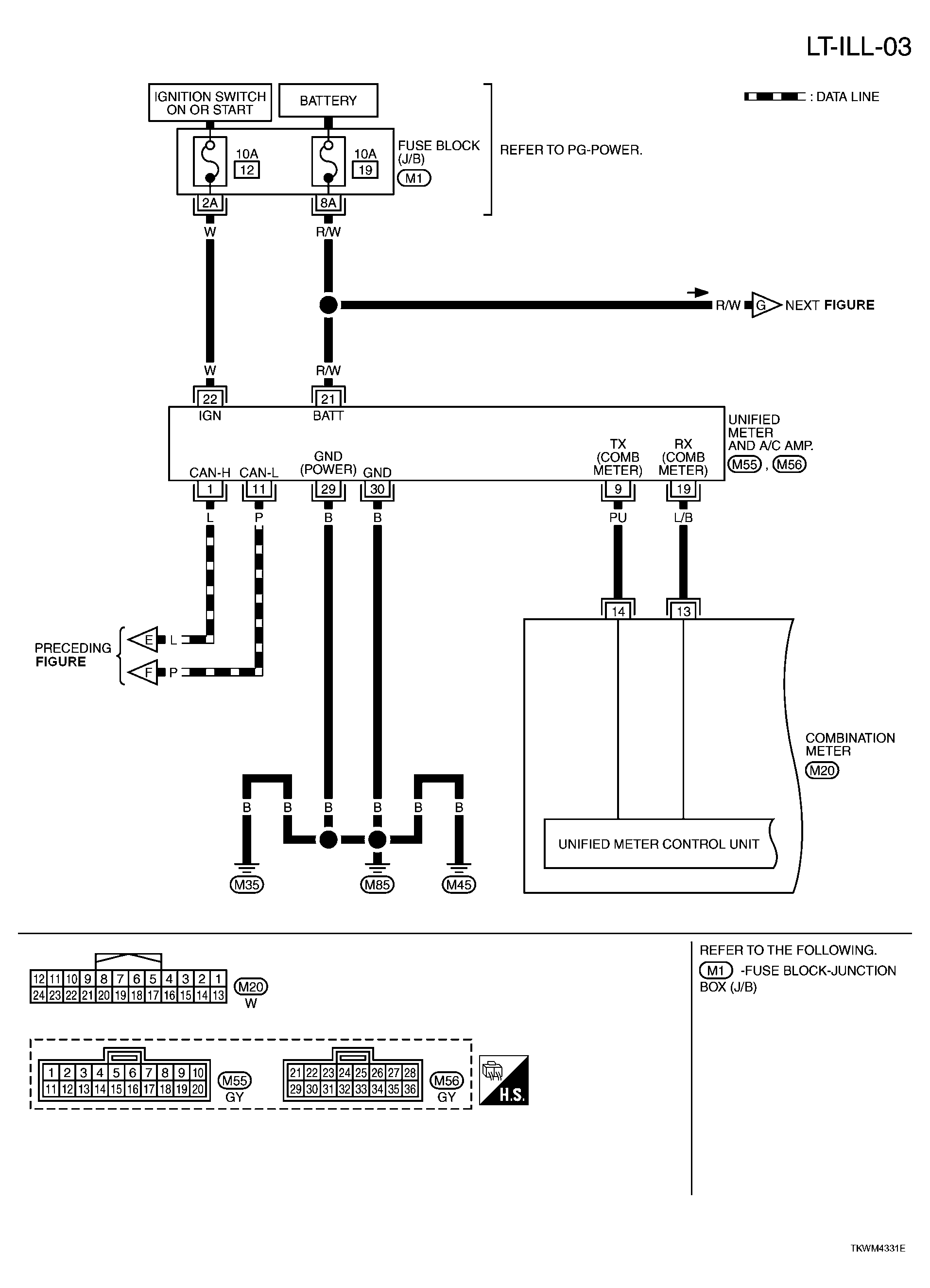

Fig 3: LT-ILL-03 - Wiring Diagram

G04078415

Courtesy of NISSAN MOTOR CO., U.S.A.

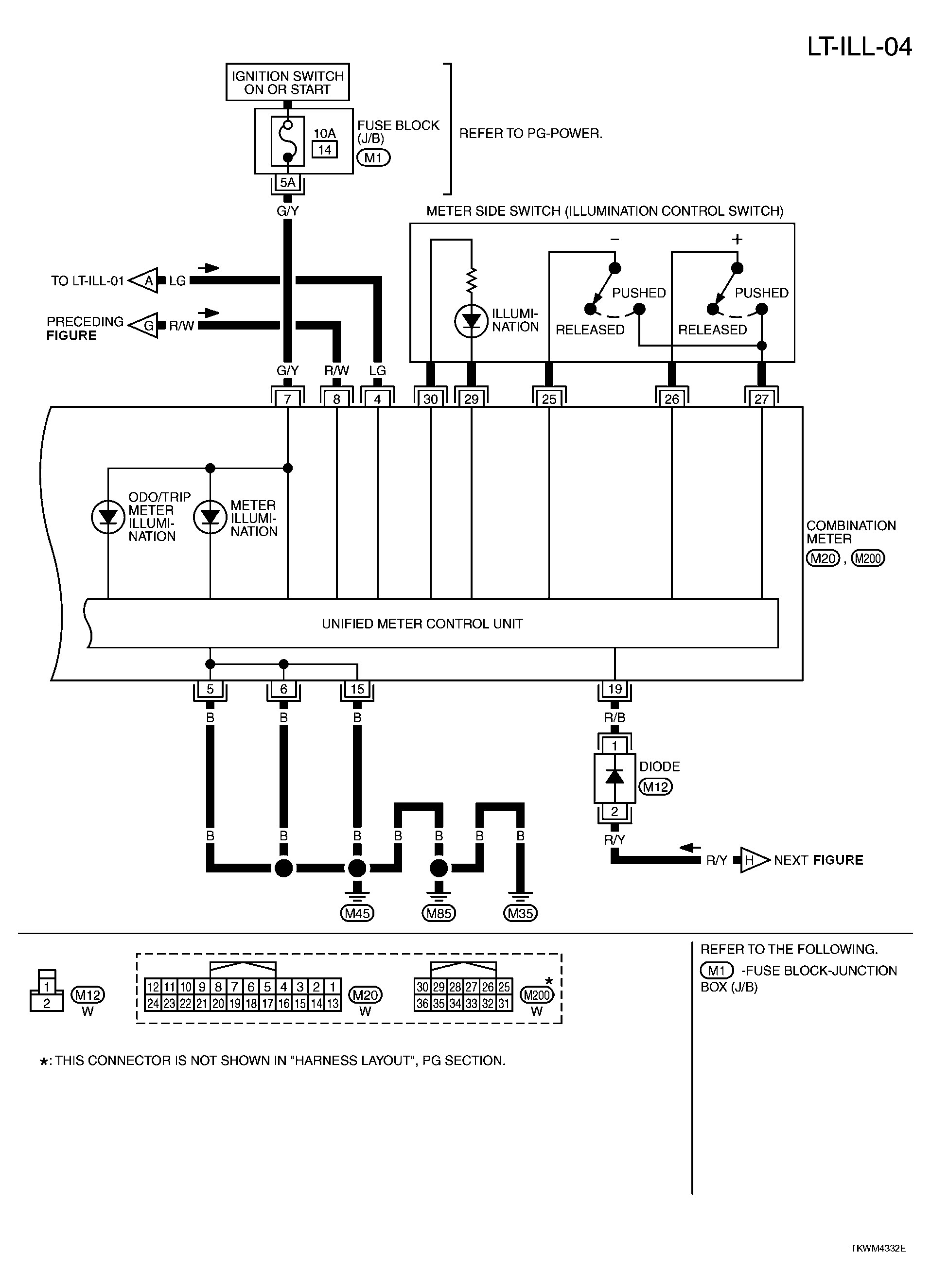

Fig 4: LT-ILL-04 - Wiring Diagram

G04078416

Courtesy of NISSAN MOTOR CO., U.S.A.

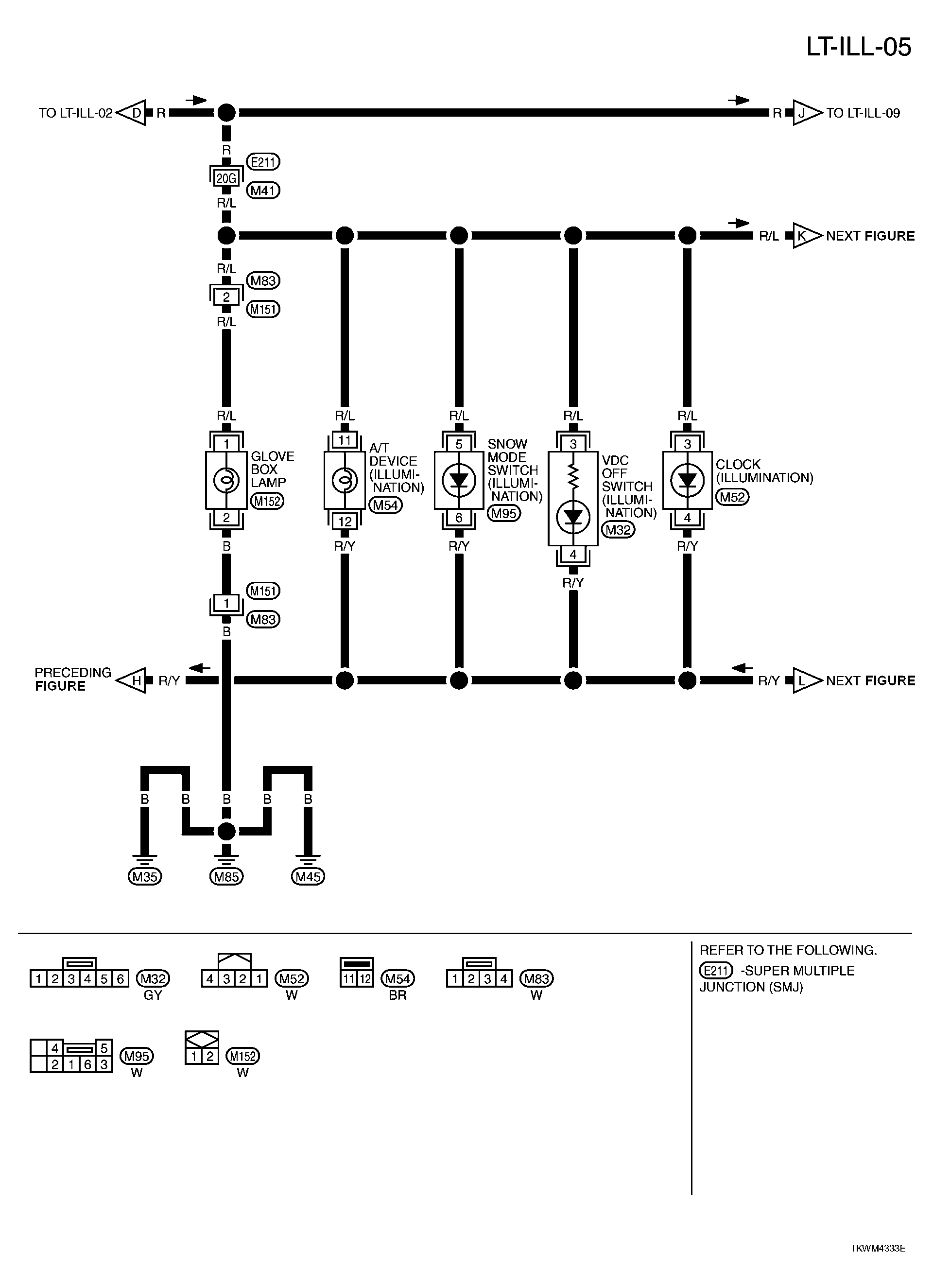

Fig 5: LT-ILL-05 - Wiring Diagram

G04078417

Courtesy of NISSAN MOTOR CO., U.S.A.

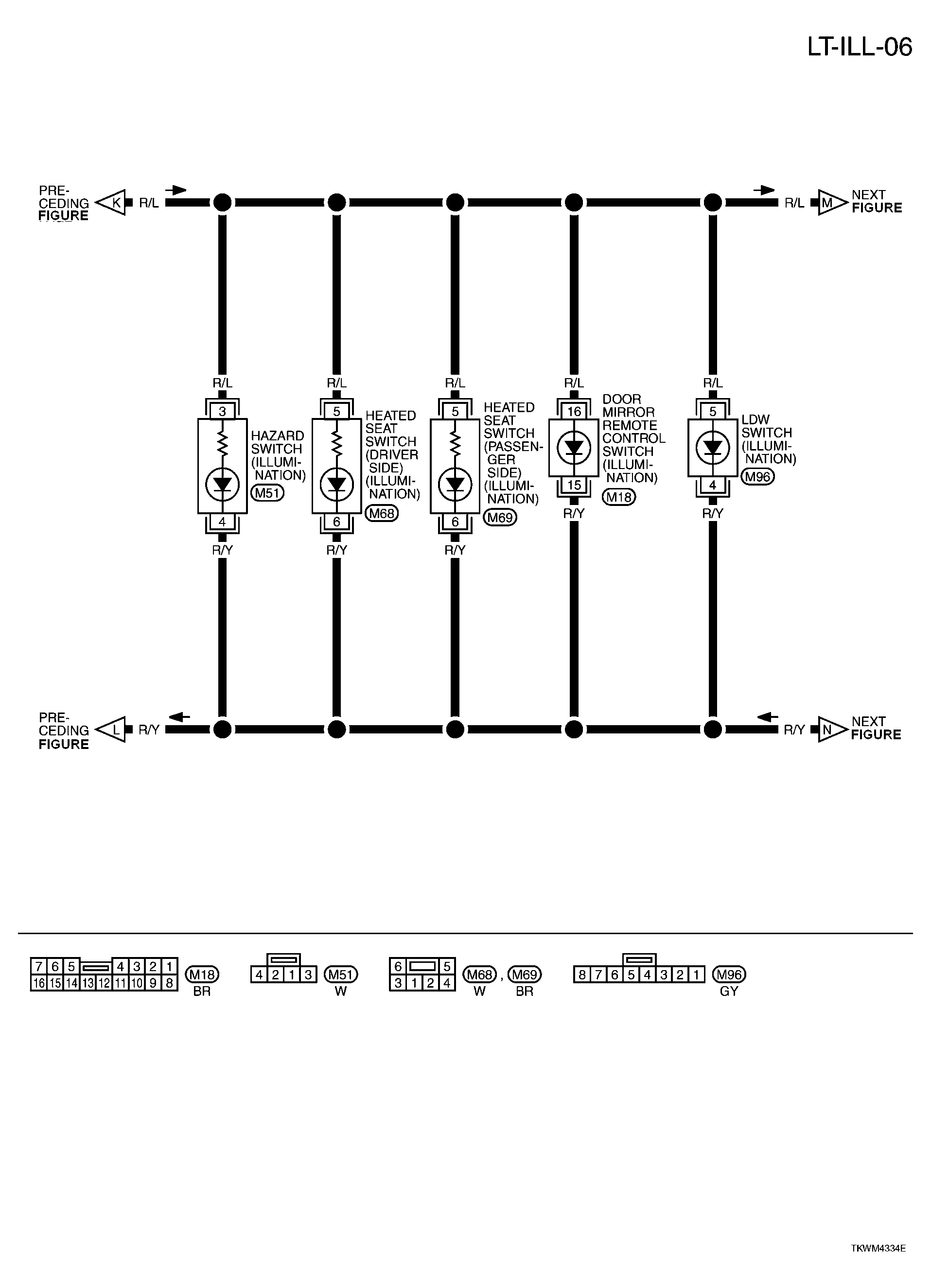

Fig 6: LT-ILL-06 - Wiring Diagram

G04078418

Courtesy of NISSAN MOTOR CO., U.S.A.

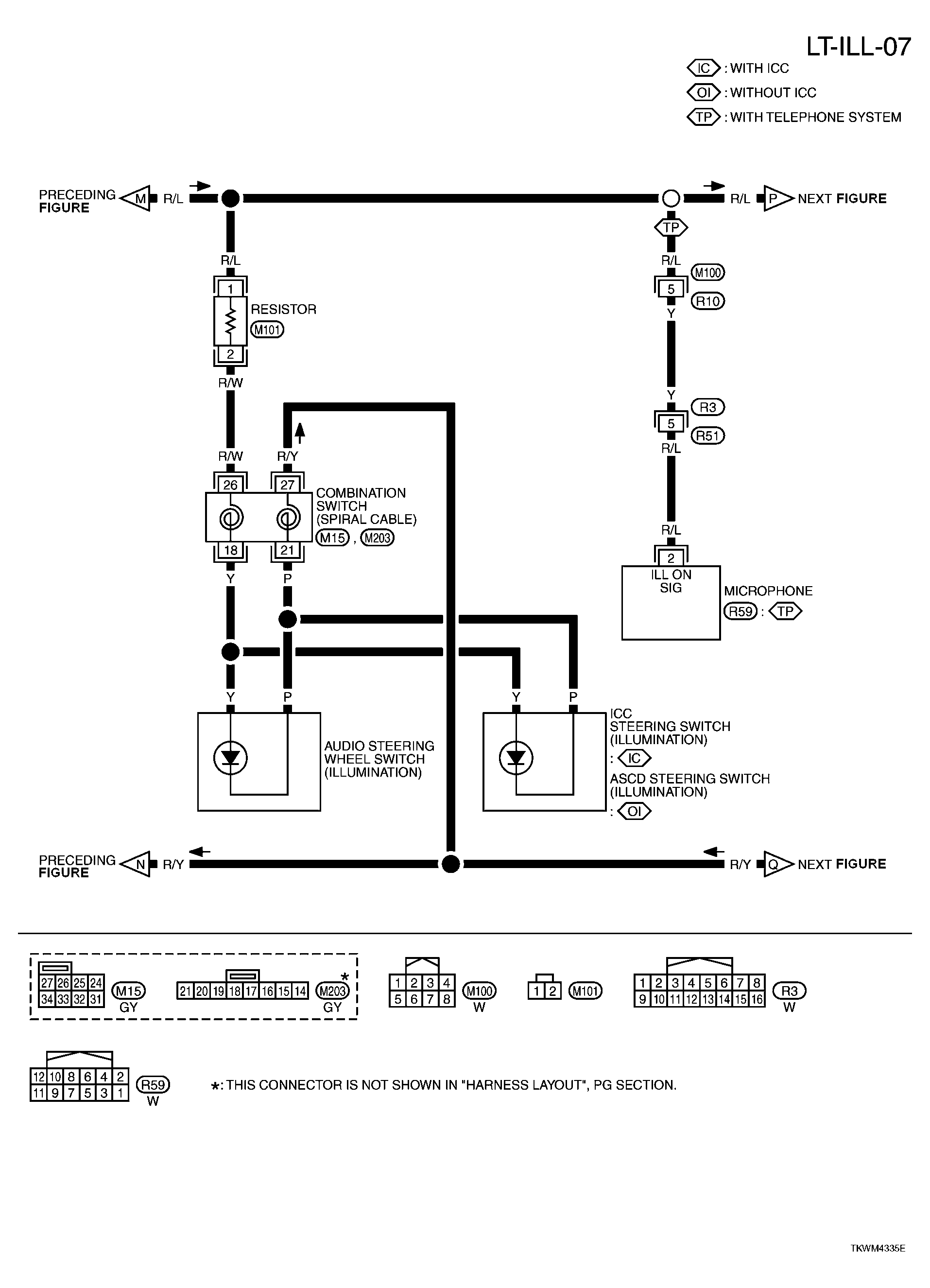

Fig 7: LT-ILL-07 - Wiring Diagram

G04078419

Courtesy of NISSAN MOTOR CO., U.S.A.

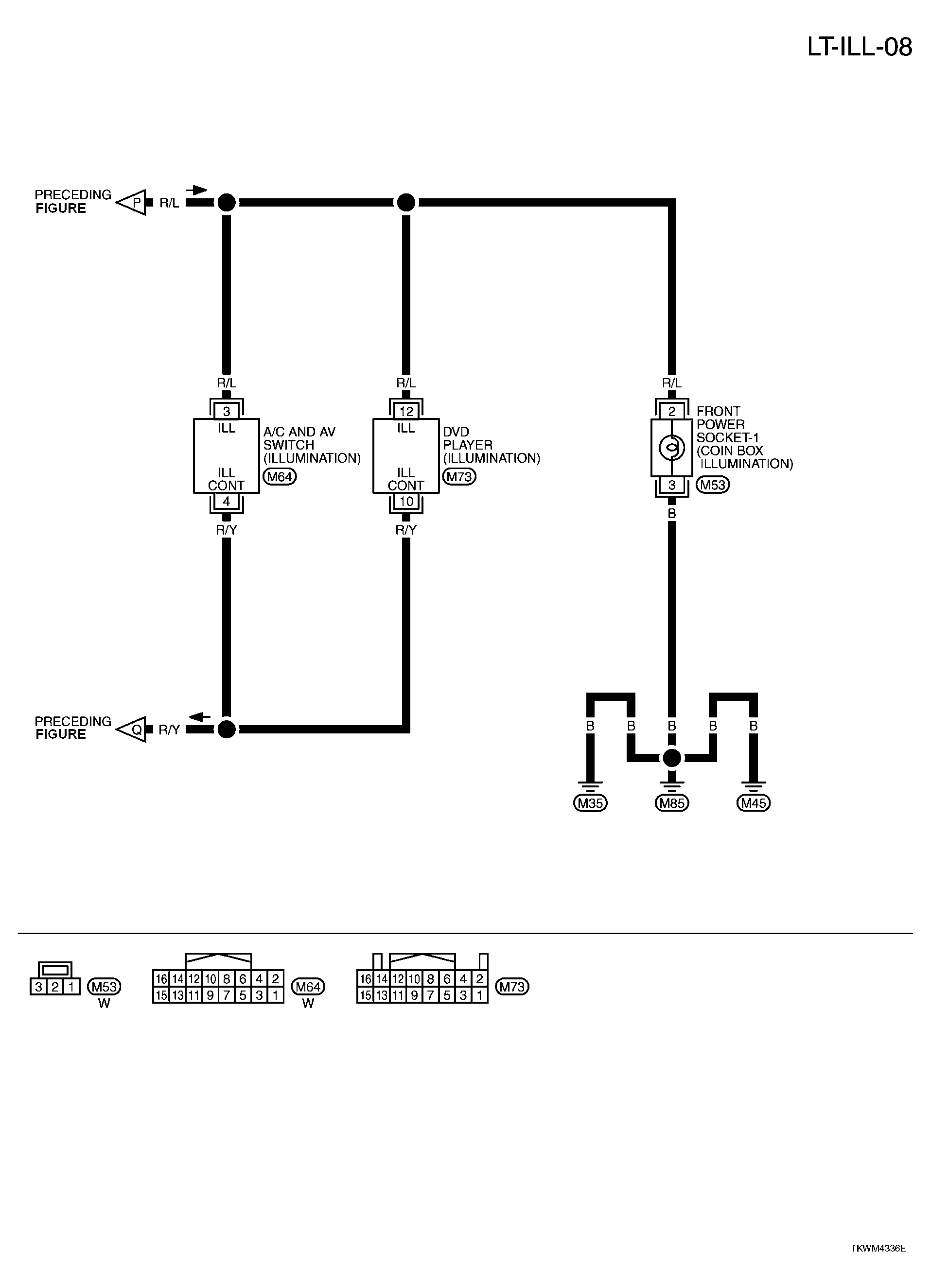

Fig 8: LT-ILL-08 - Wiring Diagram

G04078420

Courtesy of NISSAN MOTOR CO., U.S.A.

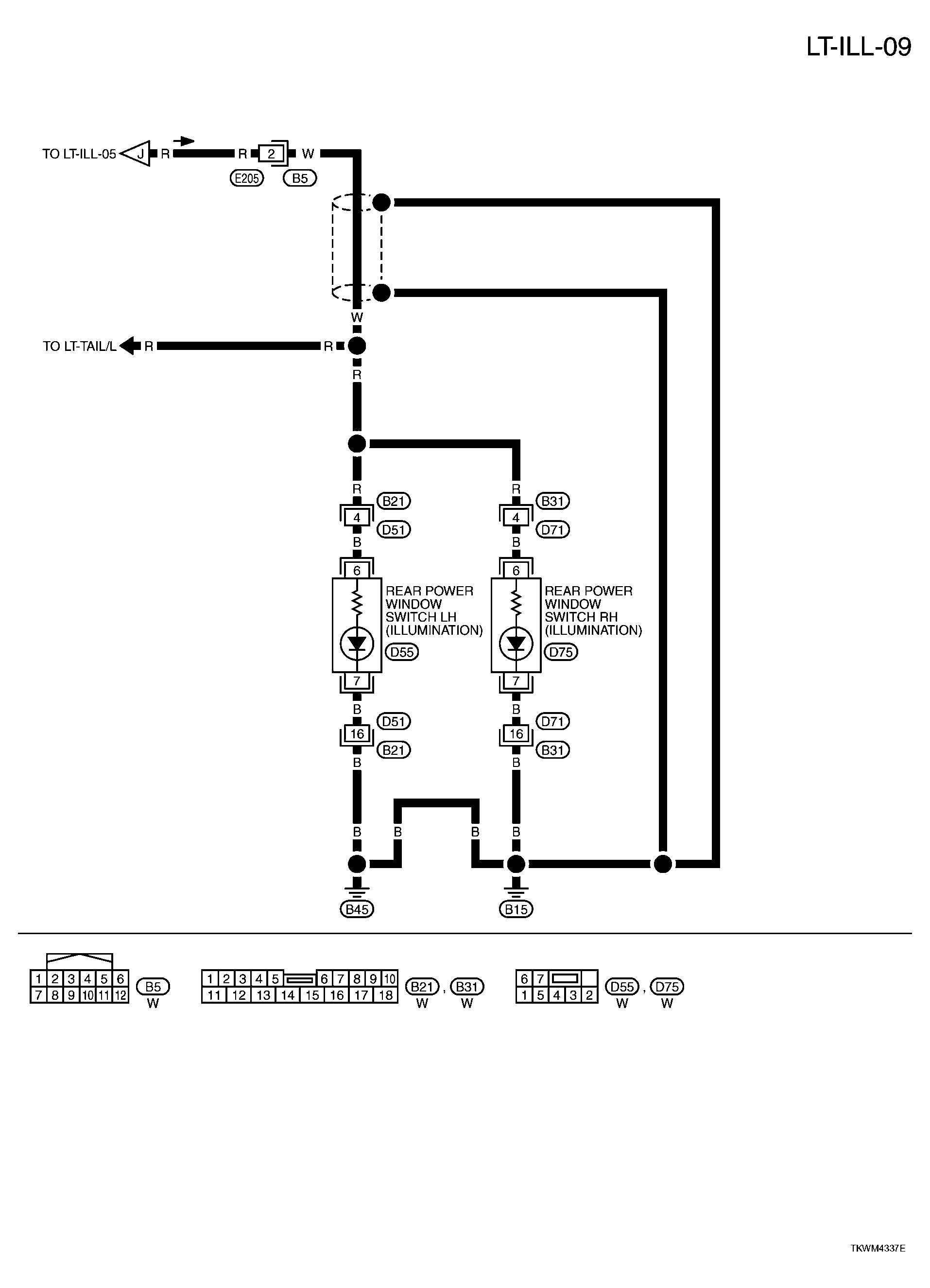

Fig 9: LT-ILL-09 - Wiring Diagram

G04078421

Courtesy of NISSAN MOTOR CO., U.S.A.
