Coin Box Illumination

  1. Remove instrument clock finisher. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Turn bulb socket left to release lock and remove it.

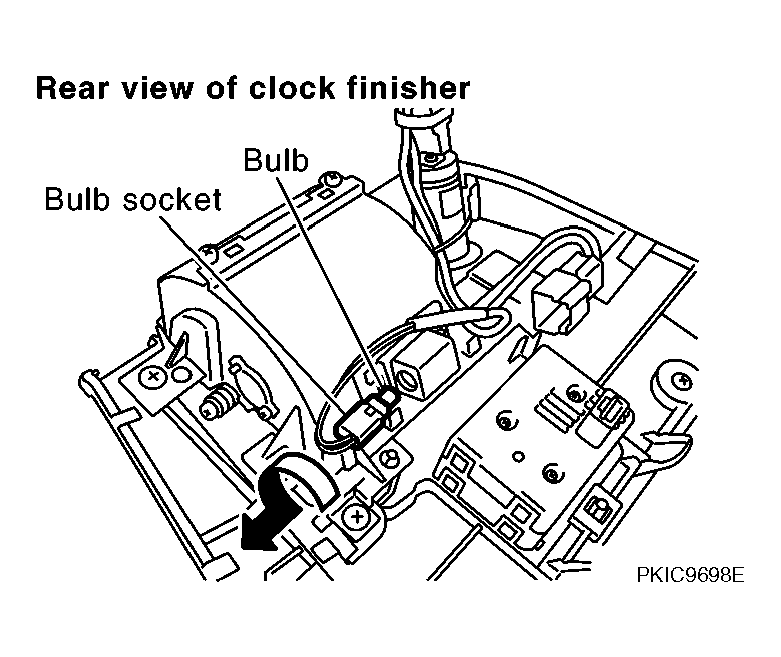

    Fig 1: Identifying Instrument Clock Finisher
    G04078424Courtesy of NISSAN MOTOR CO., U.S.A.

    Coin box illumination : 12 V - 1.4 W

  3. Installation is the reverse order of removal.
