A/T Device Illumination

  1. Remove A/T console finisher. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Turn bulb socket left to release lock and remove it.

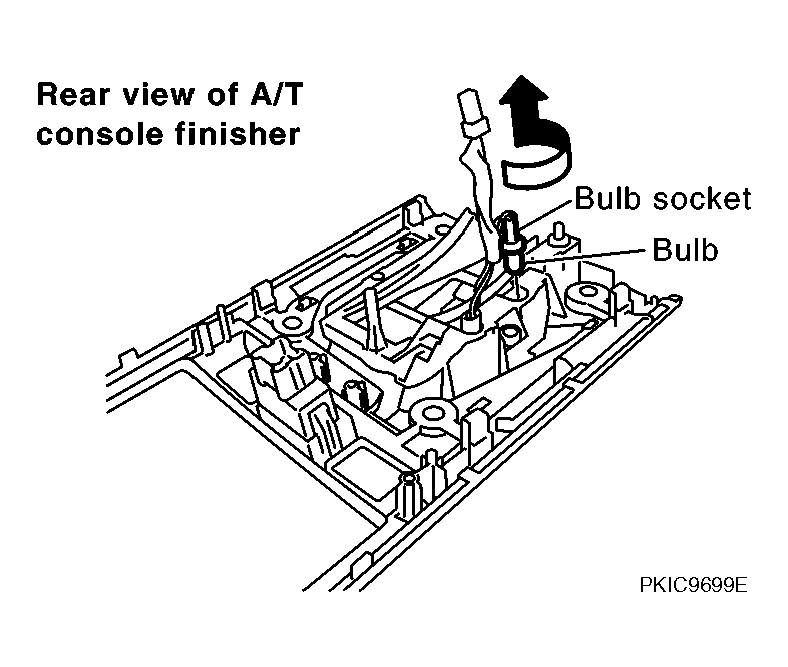

    Fig 1: Identifying A/T Console Finisher
    G04078423Courtesy of NISSAN MOTOR CO., U.S.A.

    A/T device illumination : 12 V - 1.4 W

  3. Installation is the reverse order of removal.
