Removal and Installation: Removal

  1. Remove steering column cover. Refer to "INSTRUMENT PANEL ASSEMBLY ".

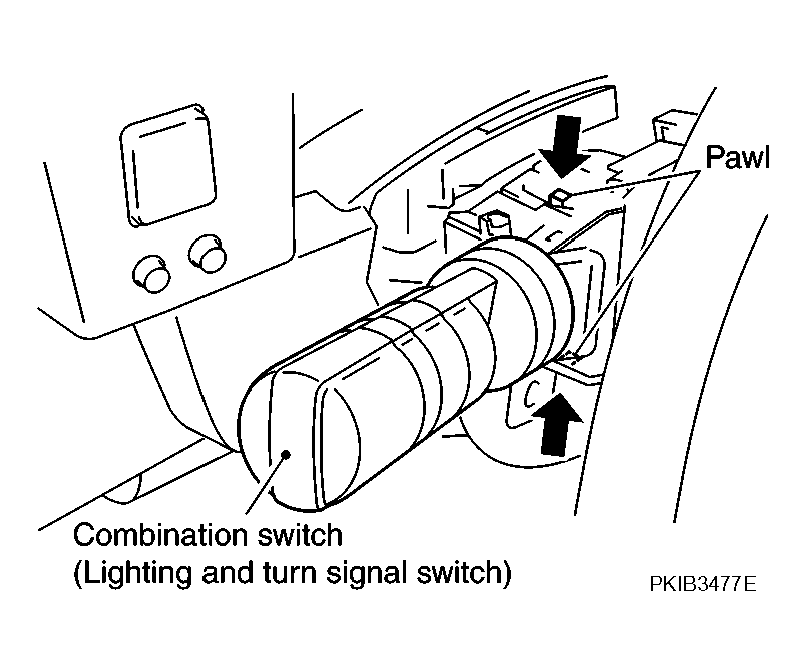

  2. While pressing pawls in direction as shown in the figure, pull lighting and turn signal switch toward driver door and disconnect from the base.
    Fig 1: Identifying Steering Column Cover
    G04078279Courtesy of NISSAN MOTOR CO., U.S.A.
