Wiring Diagram - H/AIM -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

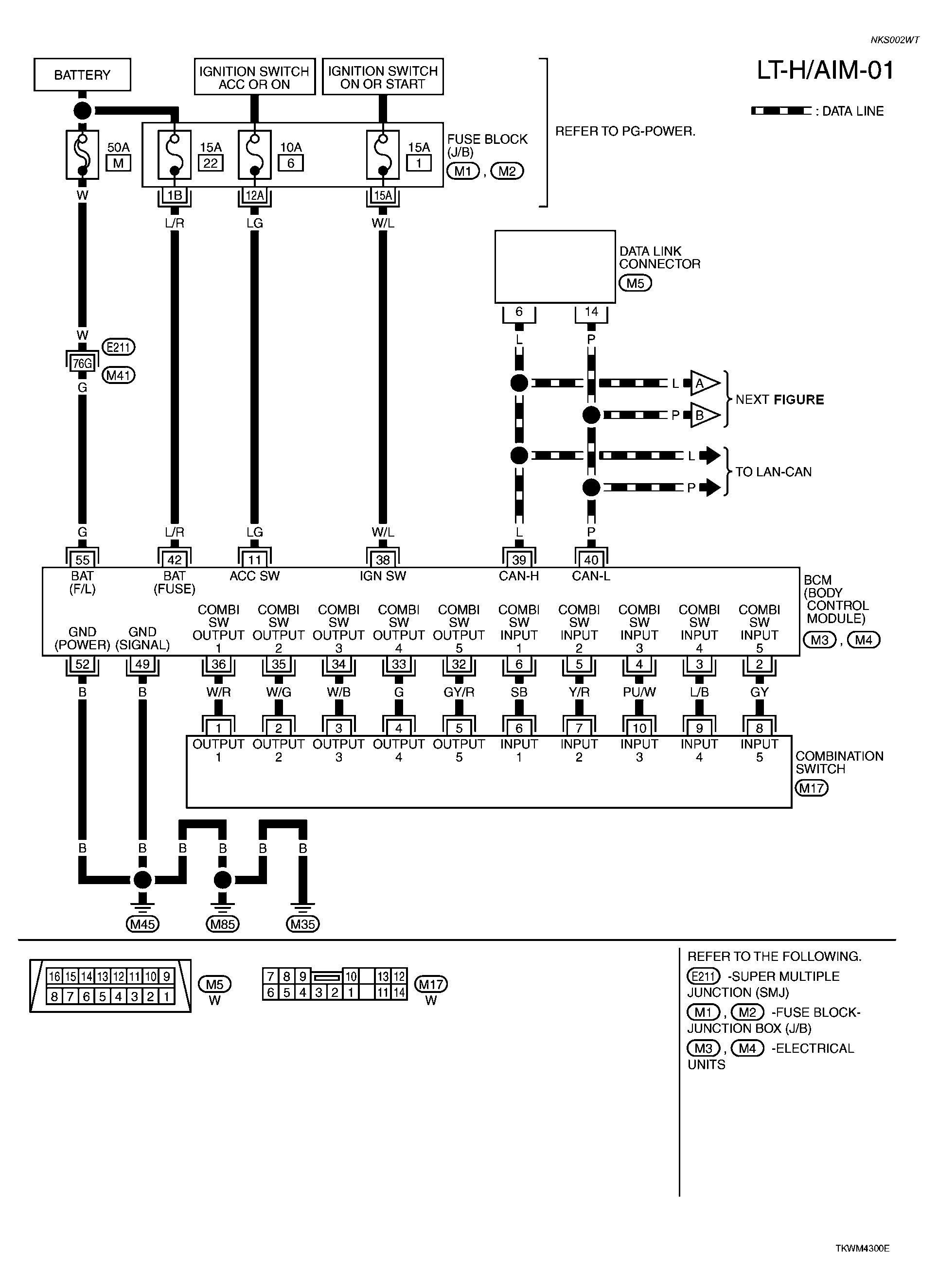

Fig 1: LT-H/AIM-01 - Wiring Diagram
G04078218Courtesy of NISSAN MOTOR CO., U.S.A.

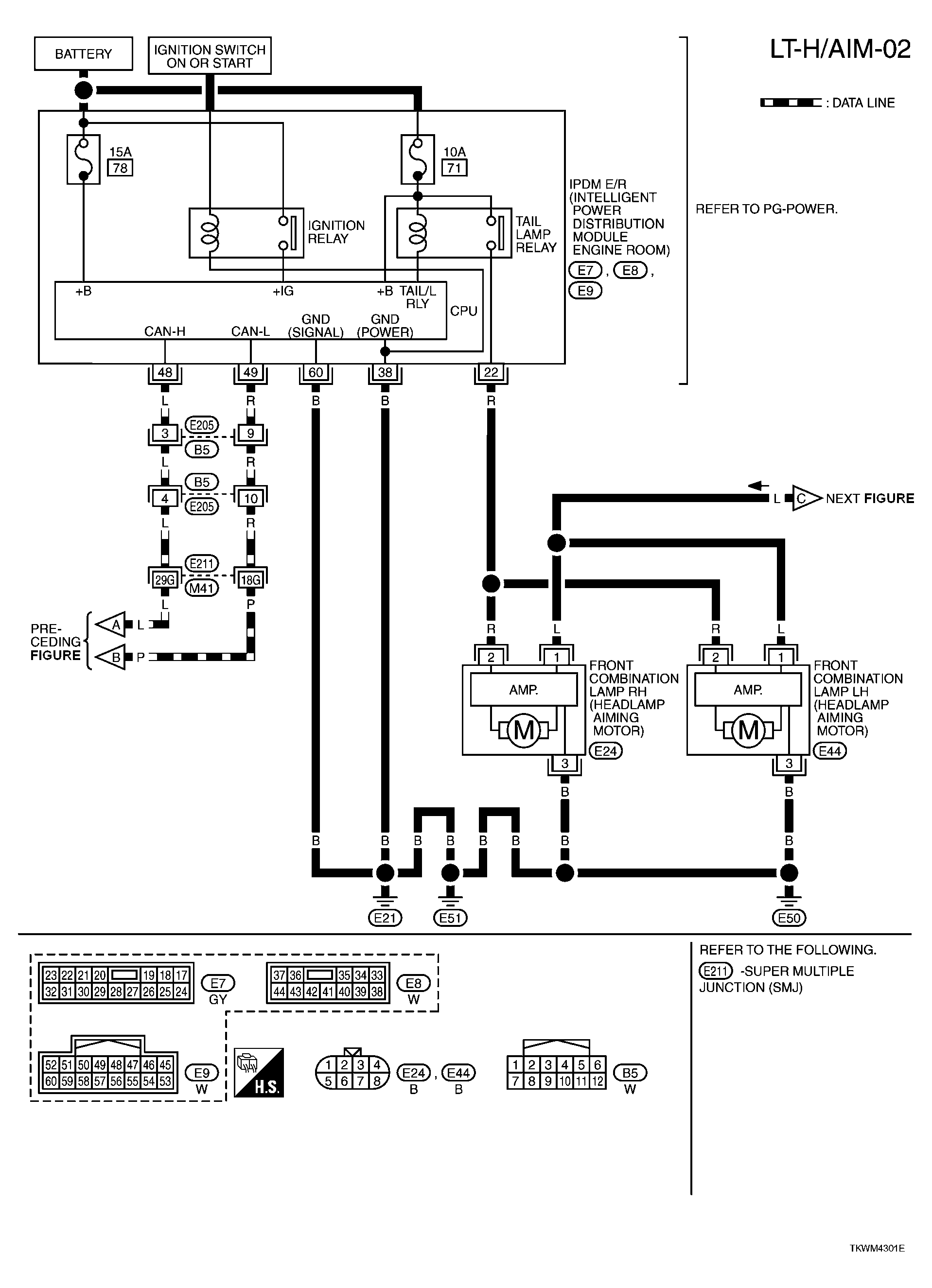

Fig 2: LT-H/AIM-02 - Wiring Diagram
G04078219Courtesy of NISSAN MOTOR CO., U.S.A.

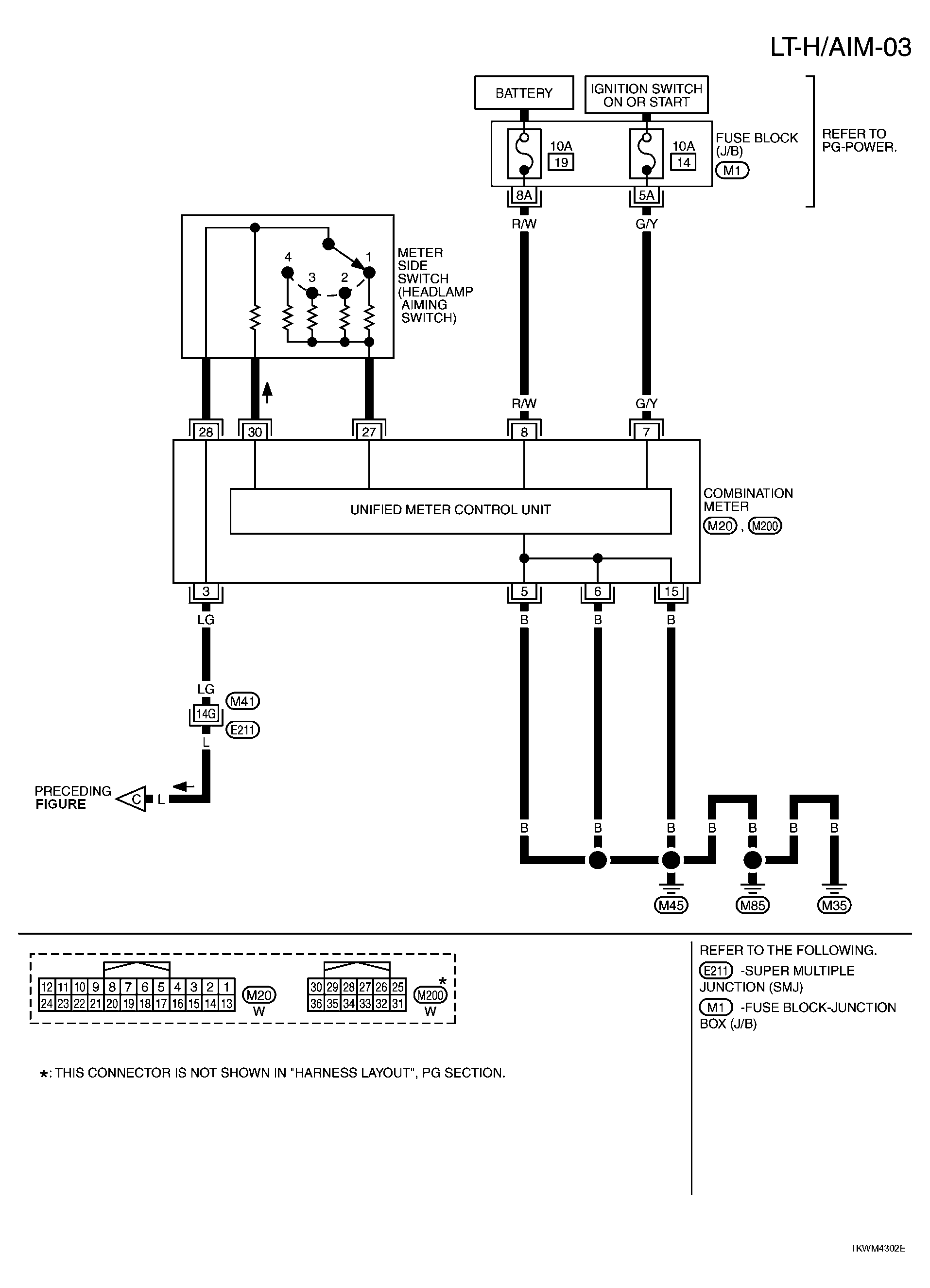

Fig 3: LT-H/AIM-03 - Wiring Diagram
G04078220Courtesy of NISSAN MOTOR CO., U.S.A.
