Wiring Diagram - F/FOG -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

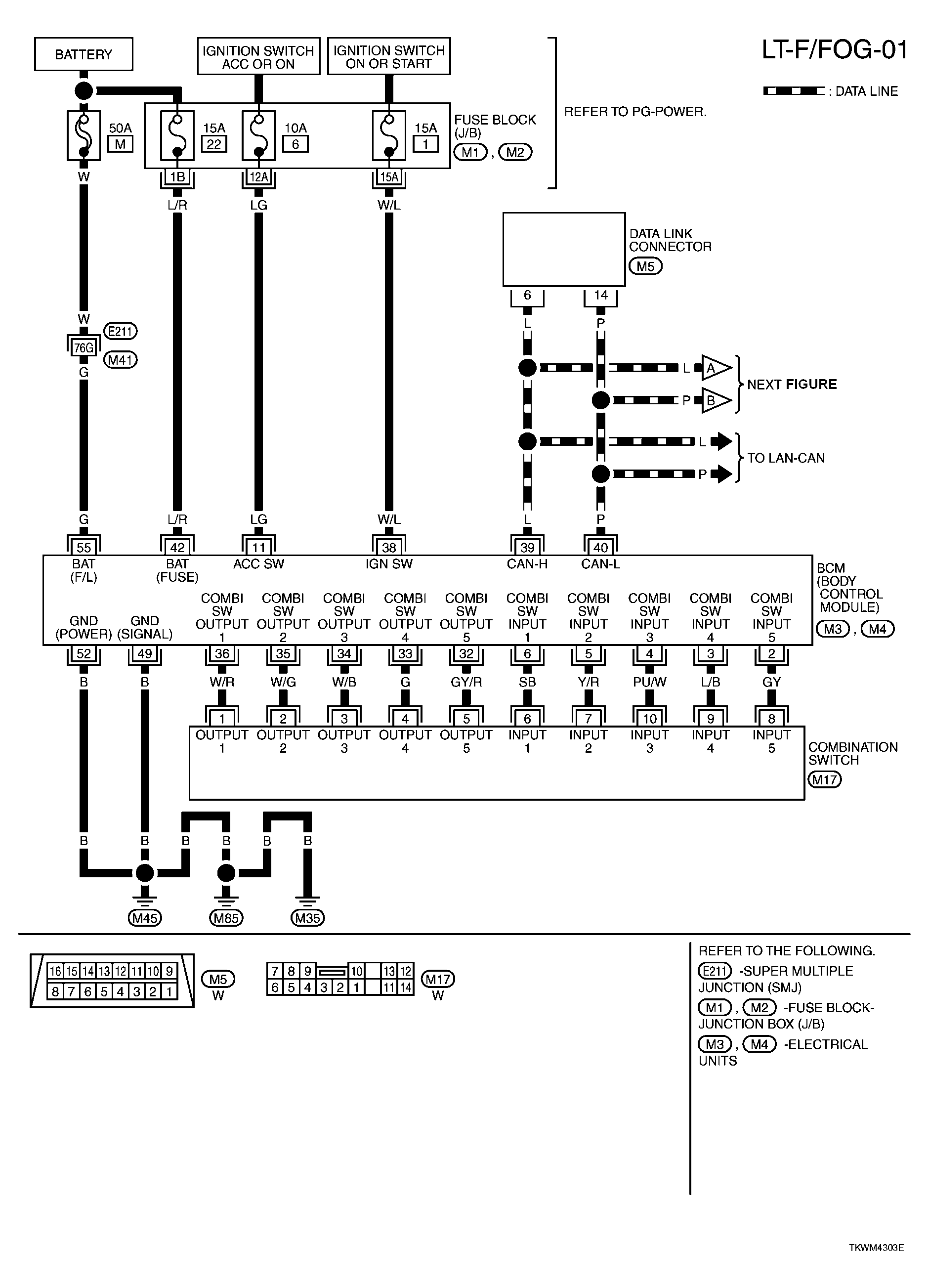

Fig 1: LT-F/FOG-01 - Wiring Diagram
G04078224Courtesy of NISSAN MOTOR CO., U.S.A.

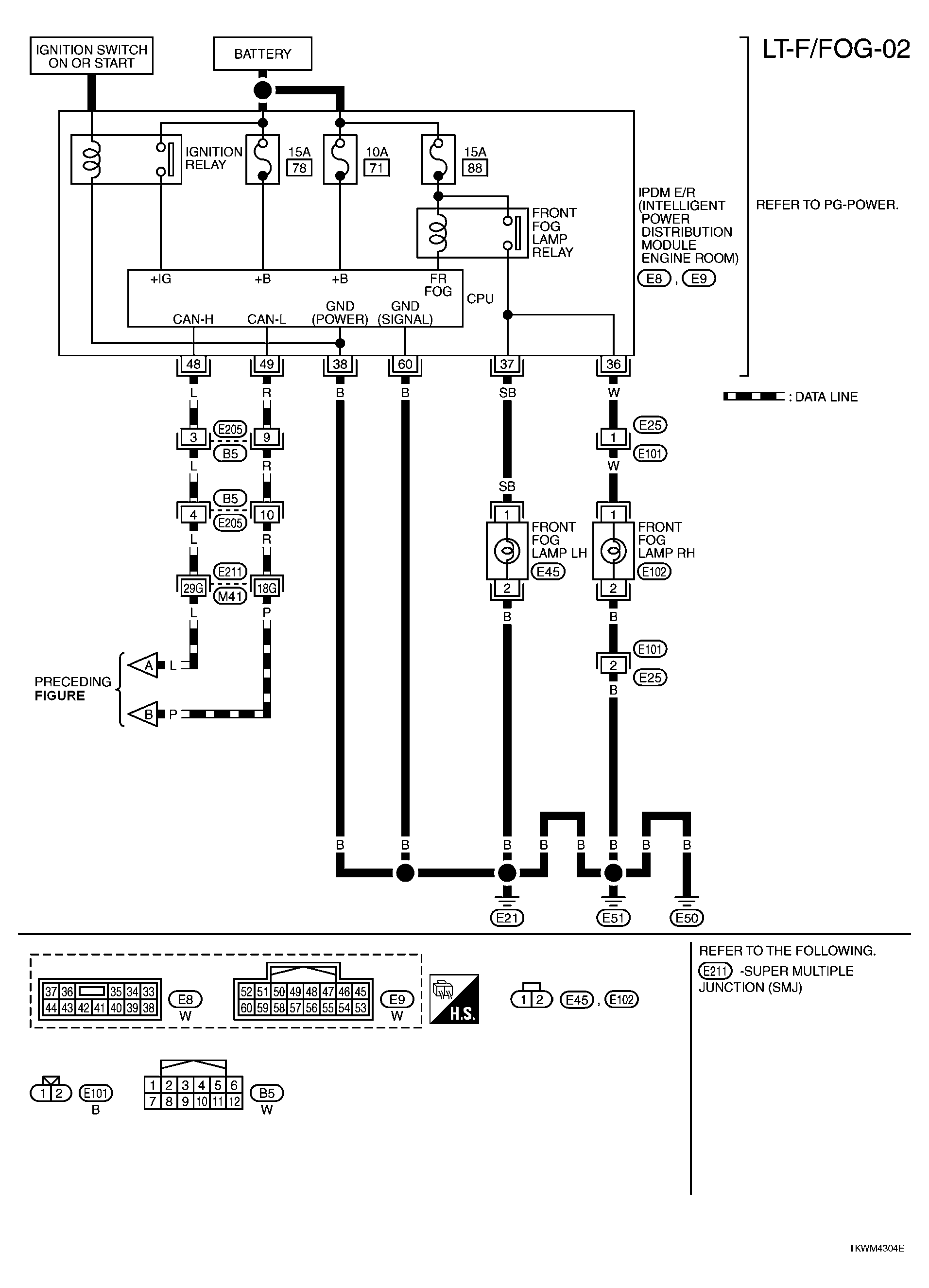

Fig 2: LT-F/FOG-02 - Wiring Diagram
G04078225Courtesy of NISSAN MOTOR CO., U.S.A.
