Wiring Diagram - DTRL -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

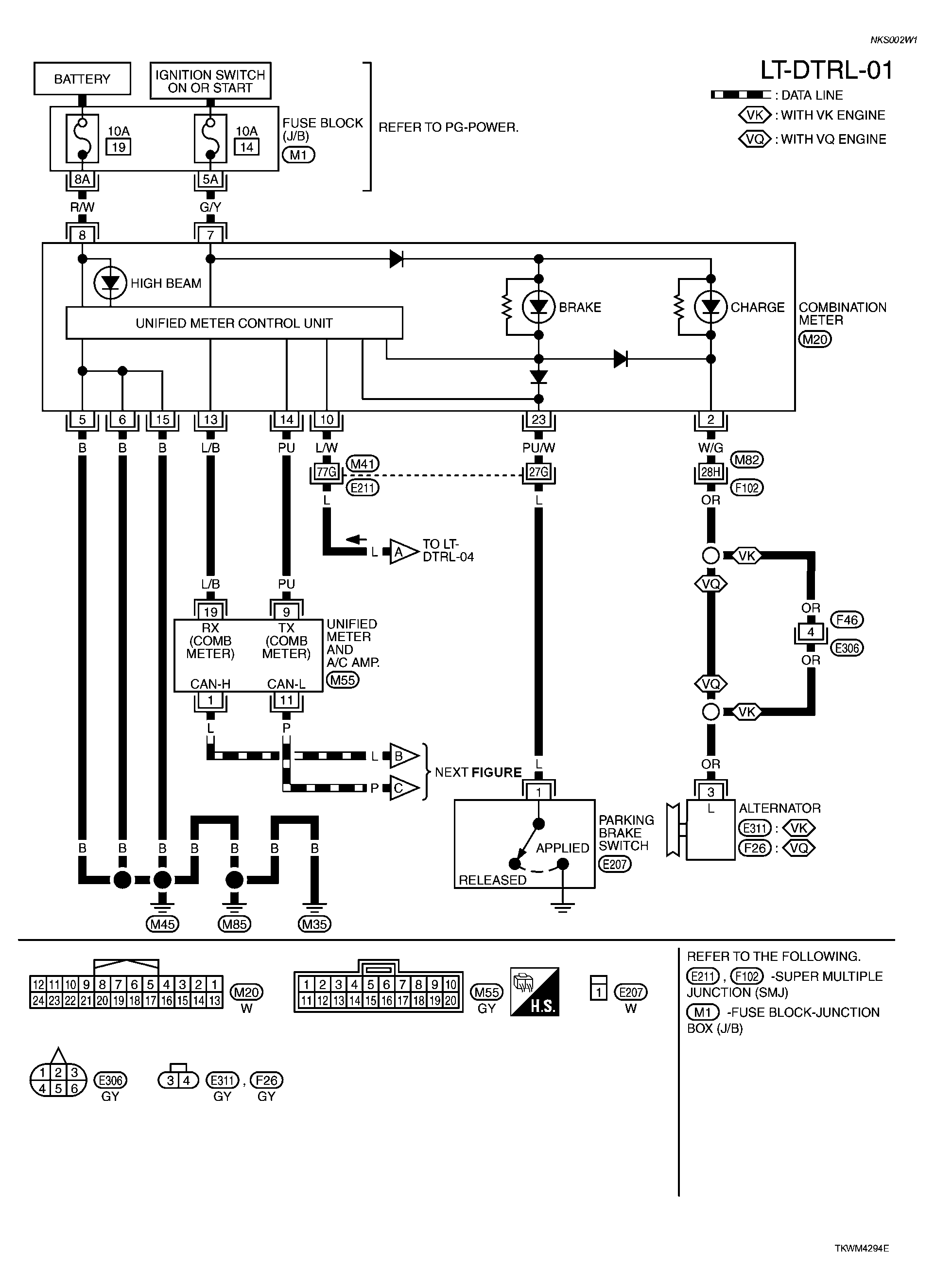

Fig 1: LT-DTRL-01 - Wiring Diagram
G04078172Courtesy of NISSAN MOTOR CO., U.S.A.

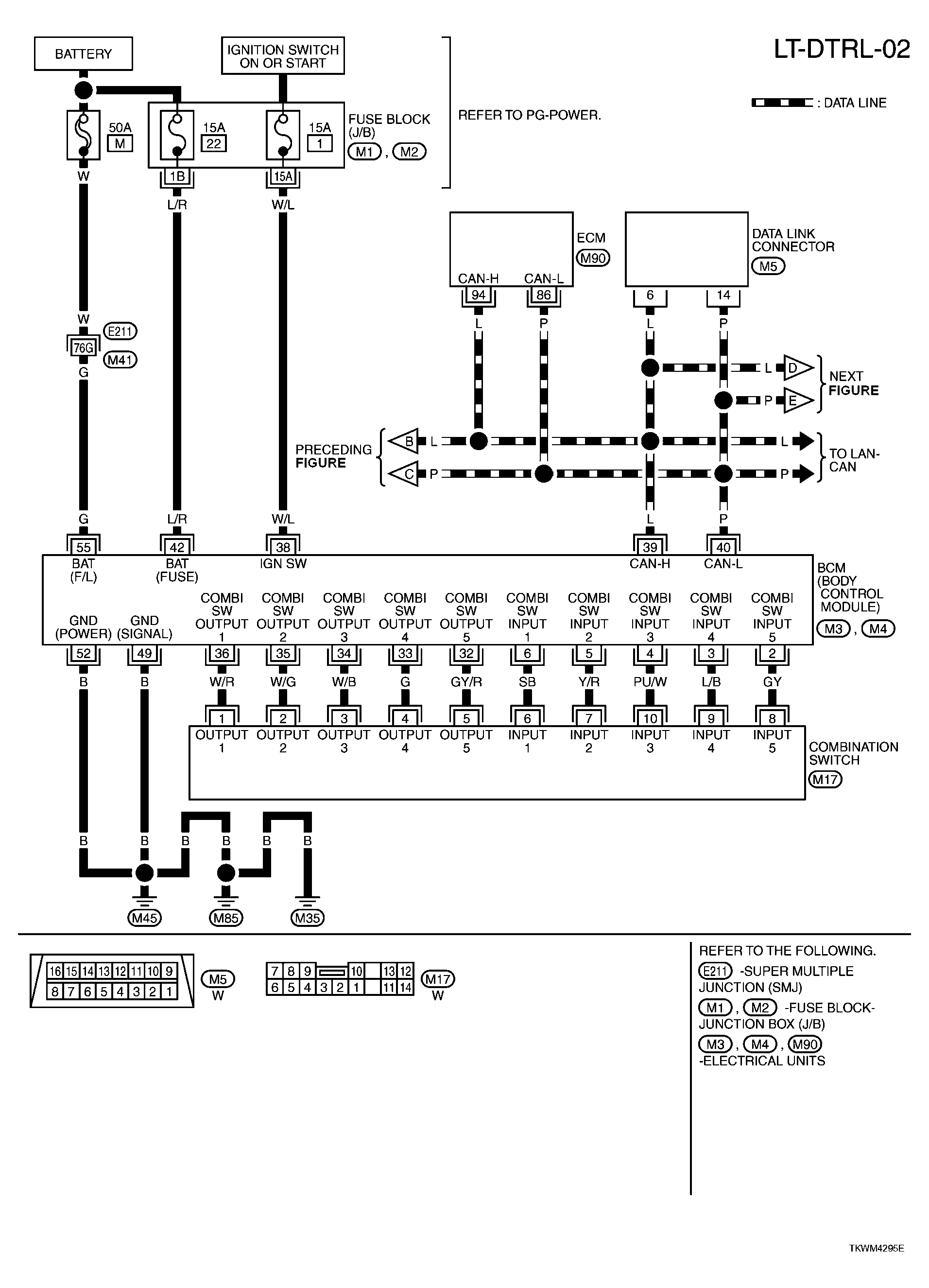

Fig 2: LT-DTRL-02 - Wiring Diagram
G04078173Courtesy of NISSAN MOTOR CO., U.S.A.

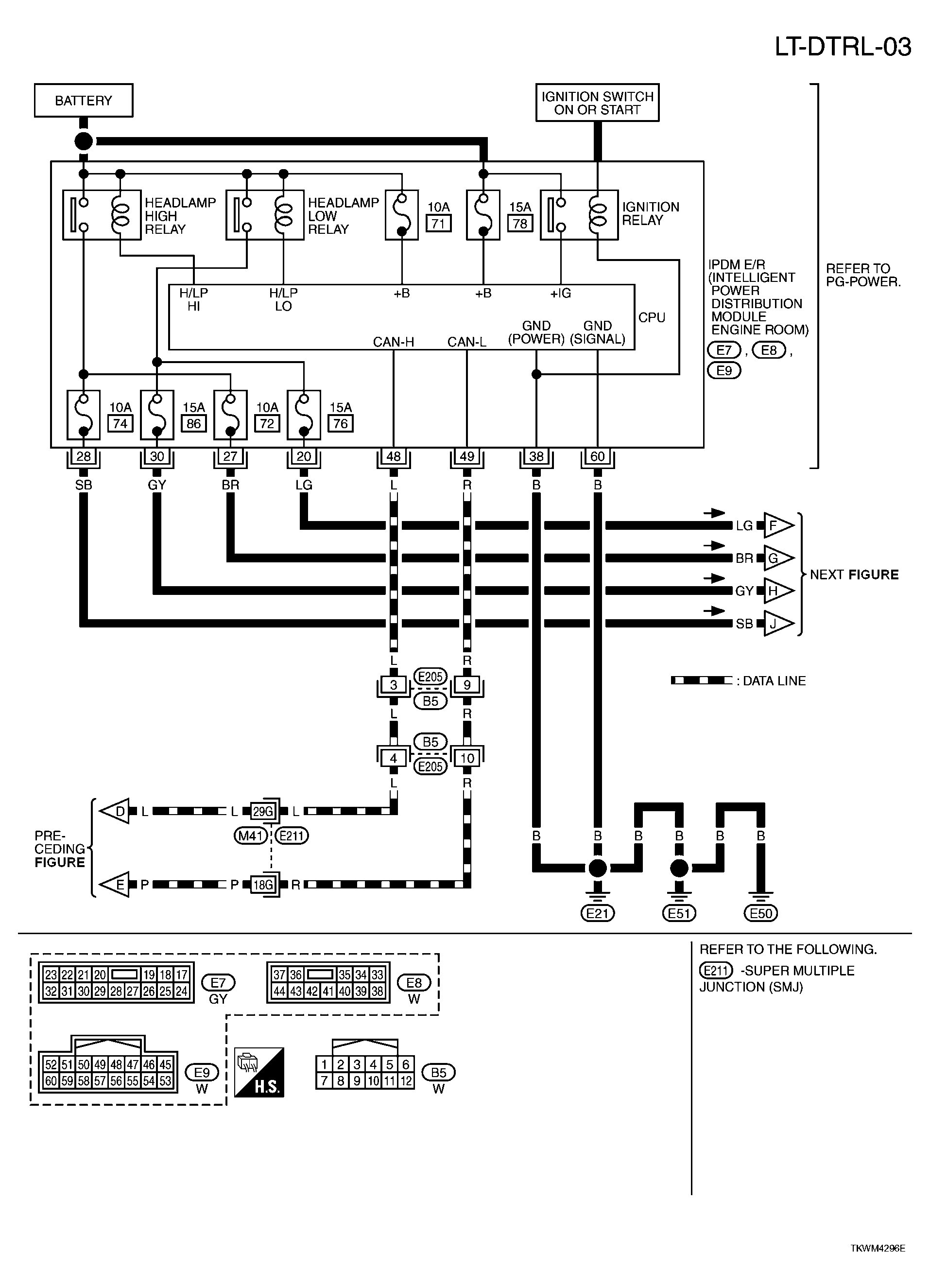

Fig 3: LT-DTRL-03 - Wiring Diagram
G04078174Courtesy of NISSAN MOTOR CO., U.S.A.

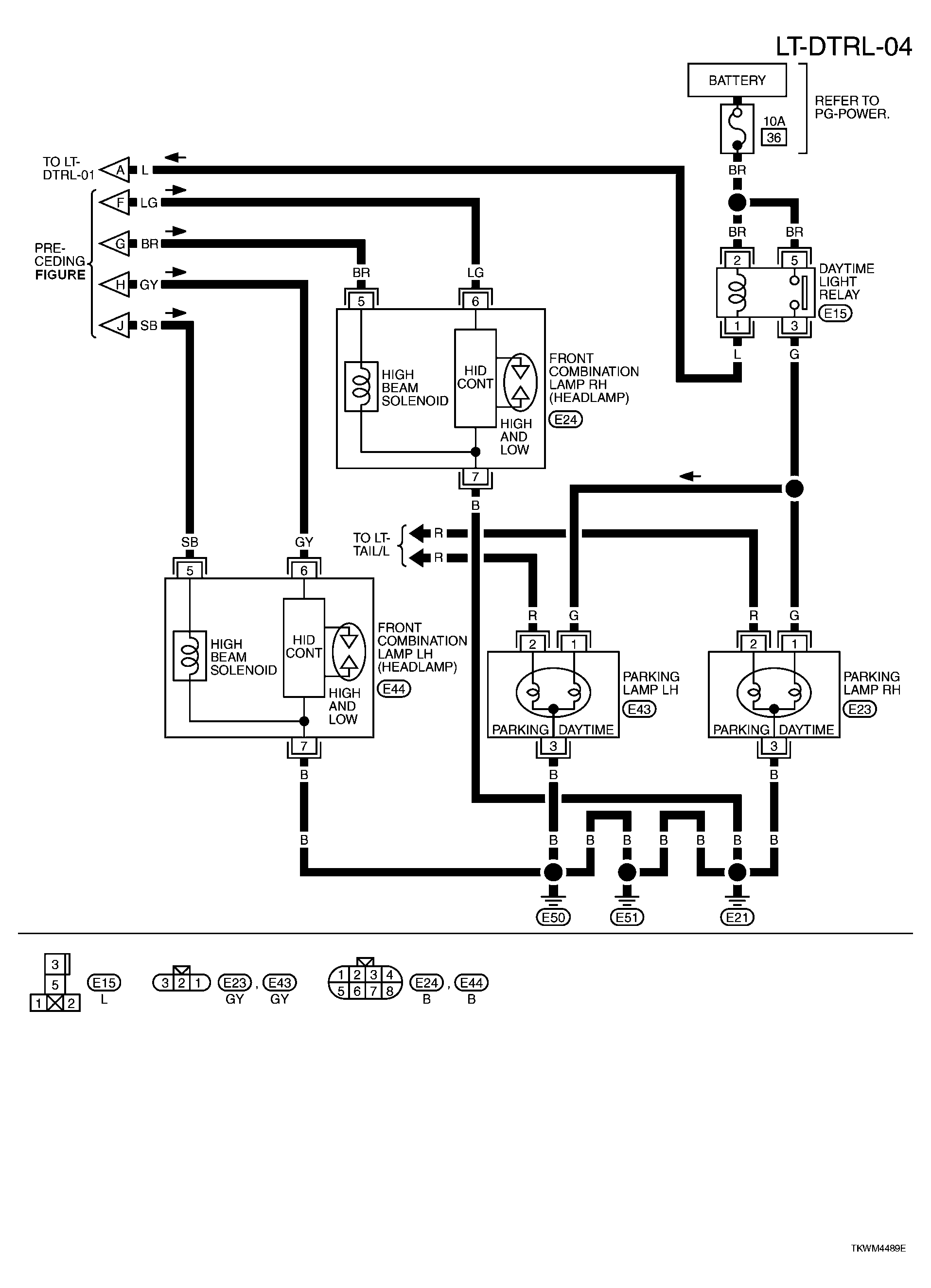

Fig 4: LT-DTRL-04 - Wiring Diagram
G04078175Courtesy of NISSAN MOTOR CO., U.S.A.
