Wiring Diagram - BACK/L -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

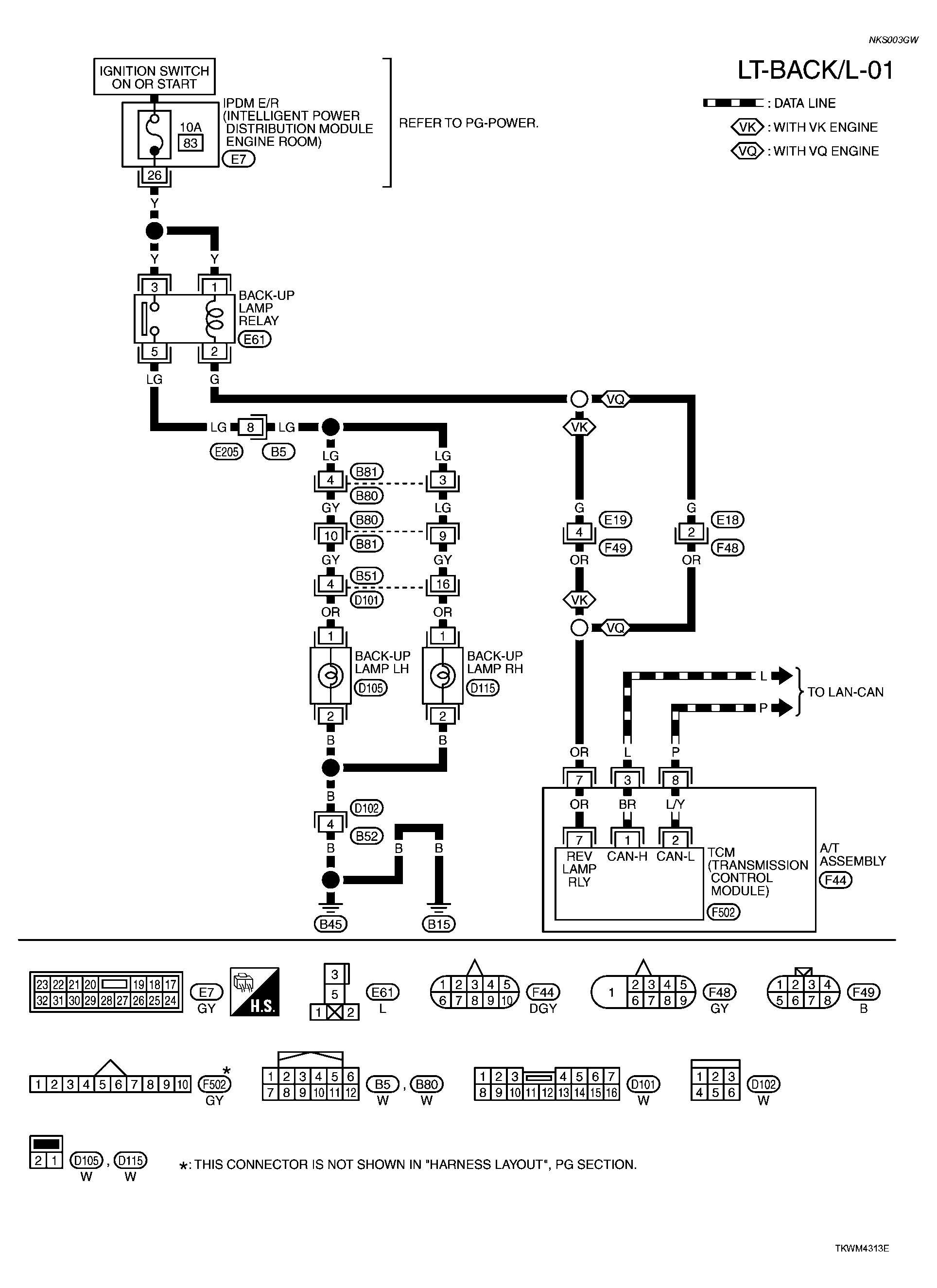

Fig 1: LT-BACK/L-01 - Wiring Diagram

G04078319

Courtesy of NISSAN MOTOR CO., U.S.A.
