Wiring Diagram - AUTO/L -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

Fig 1: LT-AUTO/L-01 - Wiring Diagram
G04078201Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: LT-AUTO/L-02 - Wiring Diagram
G04078202Courtesy of NISSAN MOTOR CO., U.S.A.

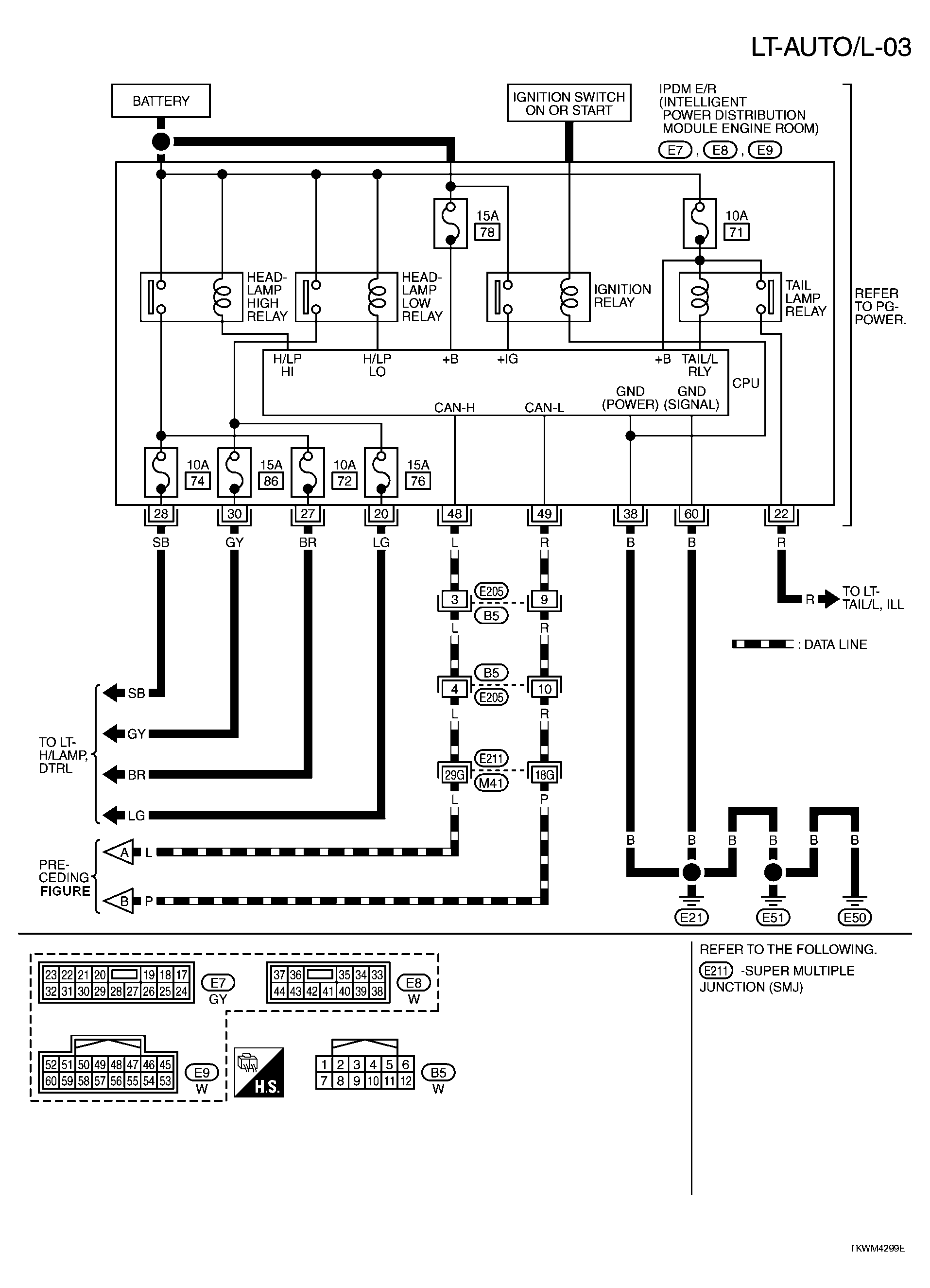

Fig 3: LT-AUTO/L-03 - Wiring Diagram
G04078203Courtesy of NISSAN MOTOR CO., U.S.A.
