Wiring Diagram - H/PHON -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

Fig 1: AV-H/PHON-01 - Wiring Diagram
G04079422Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: AV-H/PHON-02 - Wiring Diagram
G04079423Courtesy of NISSAN MOTOR CO., U.S.A.

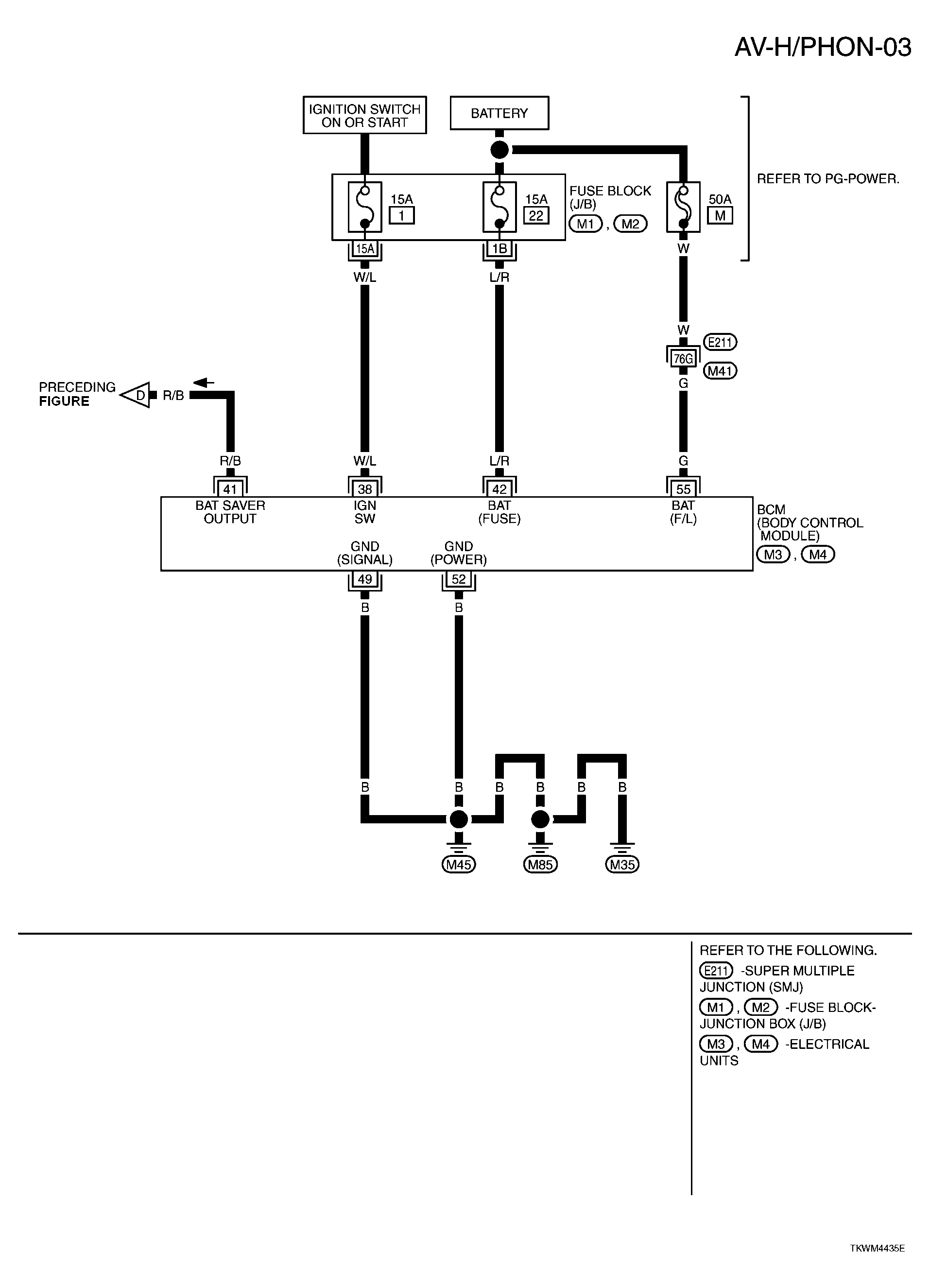

Fig 3: AV-H/PHON-03 - Wiring Diagram
G04079424Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: AV-H/PHON-04 - Wiring Diagram
G04079425Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: AV-H/PHON-05 - Wiring Diagram
G04079426Courtesy of NISSAN MOTOR CO., U.S.A.
