Removal and Installation of Satellite Radio Tuner: Removal

  1. Remove luggage side box assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove nuts (A) and remove satellite radio tuner (1) from luggage room floor.

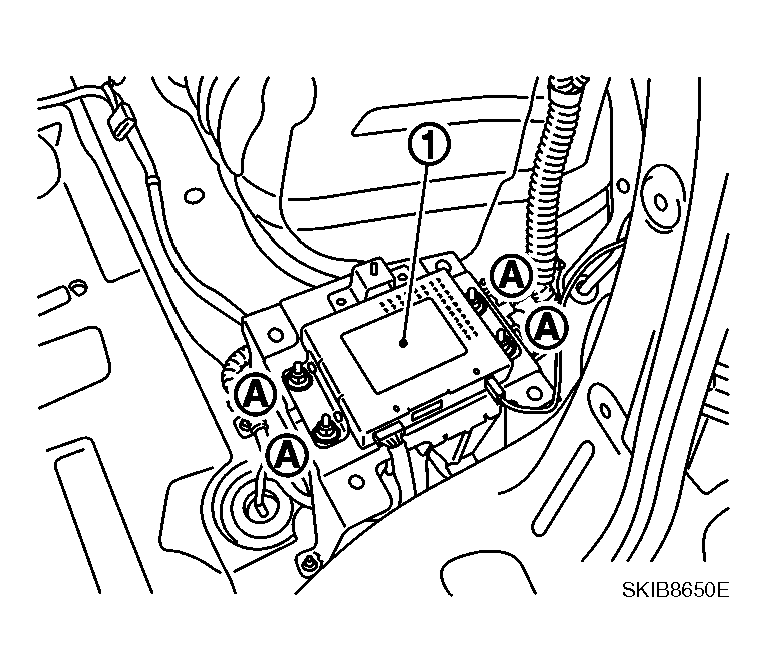

    Fig 1: Identifying Satellite Radio Tuner From Luggage Room Floor
    G04079138Courtesy of NISSAN MOTOR CO., U.S.A.
