Removal and Installation for Instrument Speaker: Removal

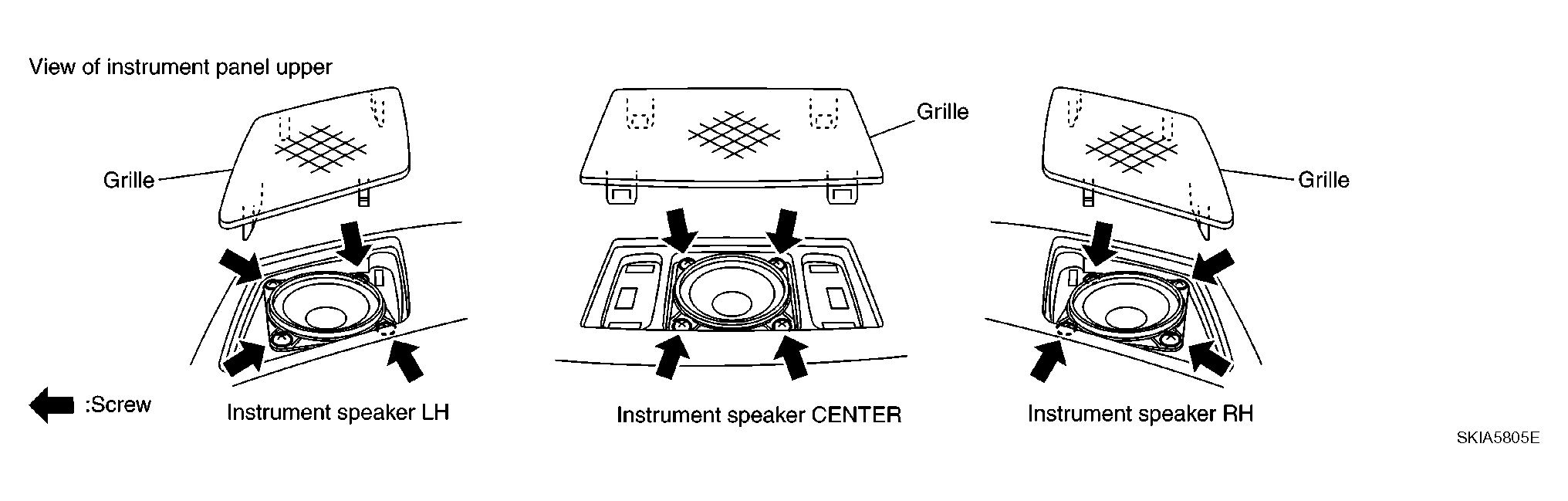

Fig 1: Identifying Instrument Speaker

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove grille from instrument panel.
2. Remove screws (4) and disconnect connector.
3. Remove instrument speaker.
