Wiring Diagram - DEF -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

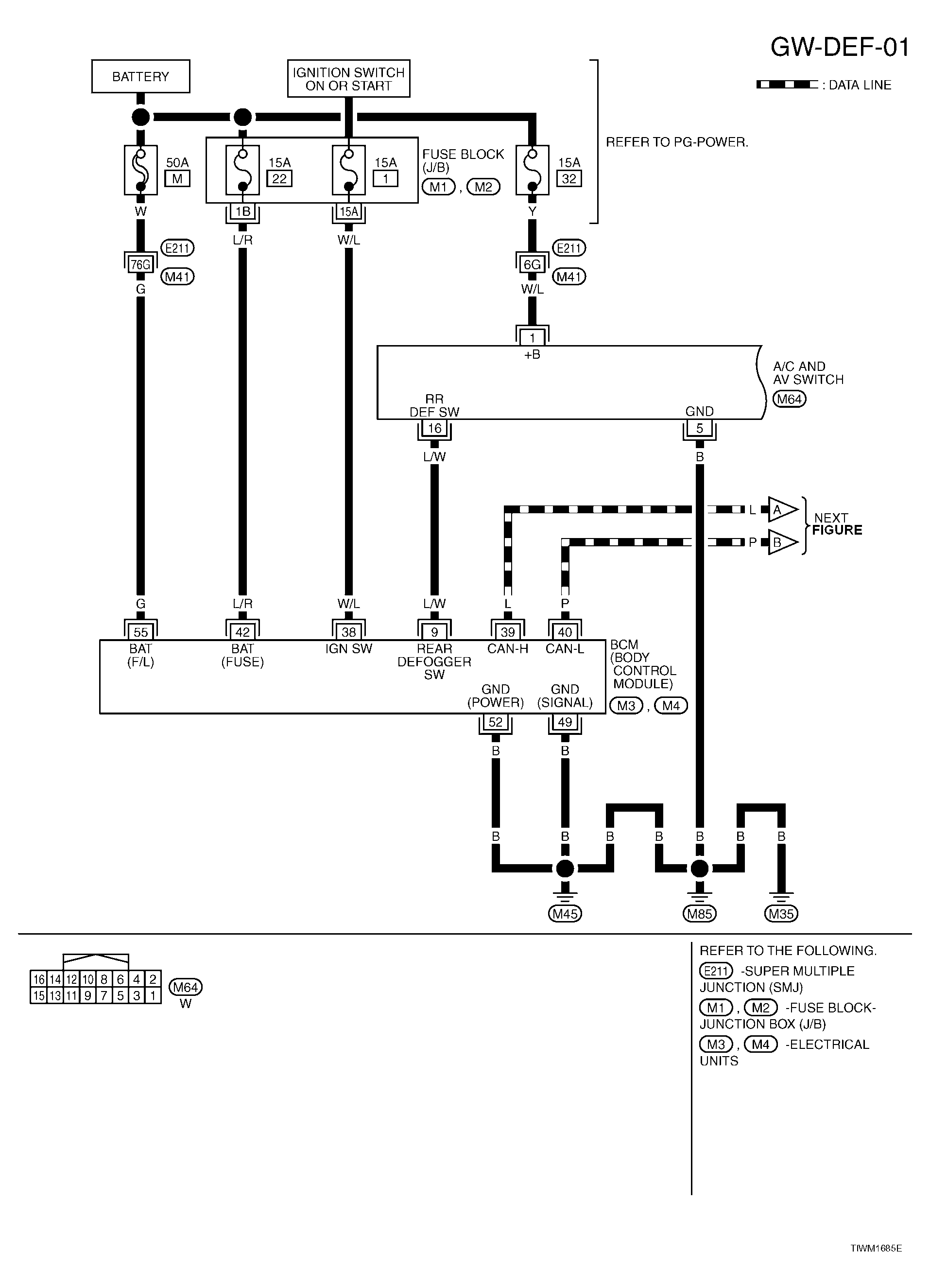

Fig 1: GW-DEF-01 - Wiring Diagram

G04077426

Courtesy of NISSAN MOTOR CO., U.S.A.

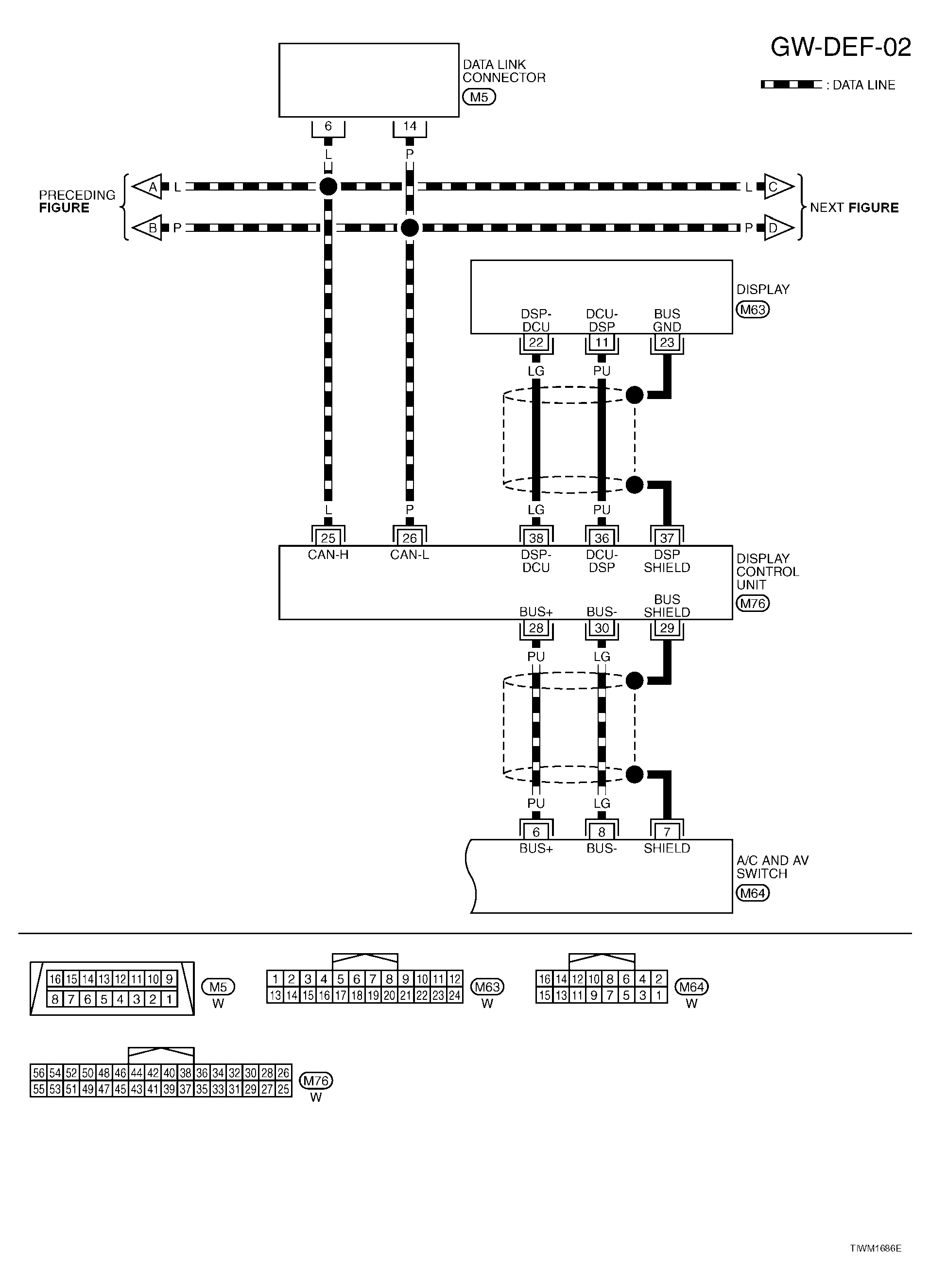

Fig 2: GW-DEF-02 - Wiring Diagram

G04077427

Courtesy of NISSAN MOTOR CO., U.S.A.

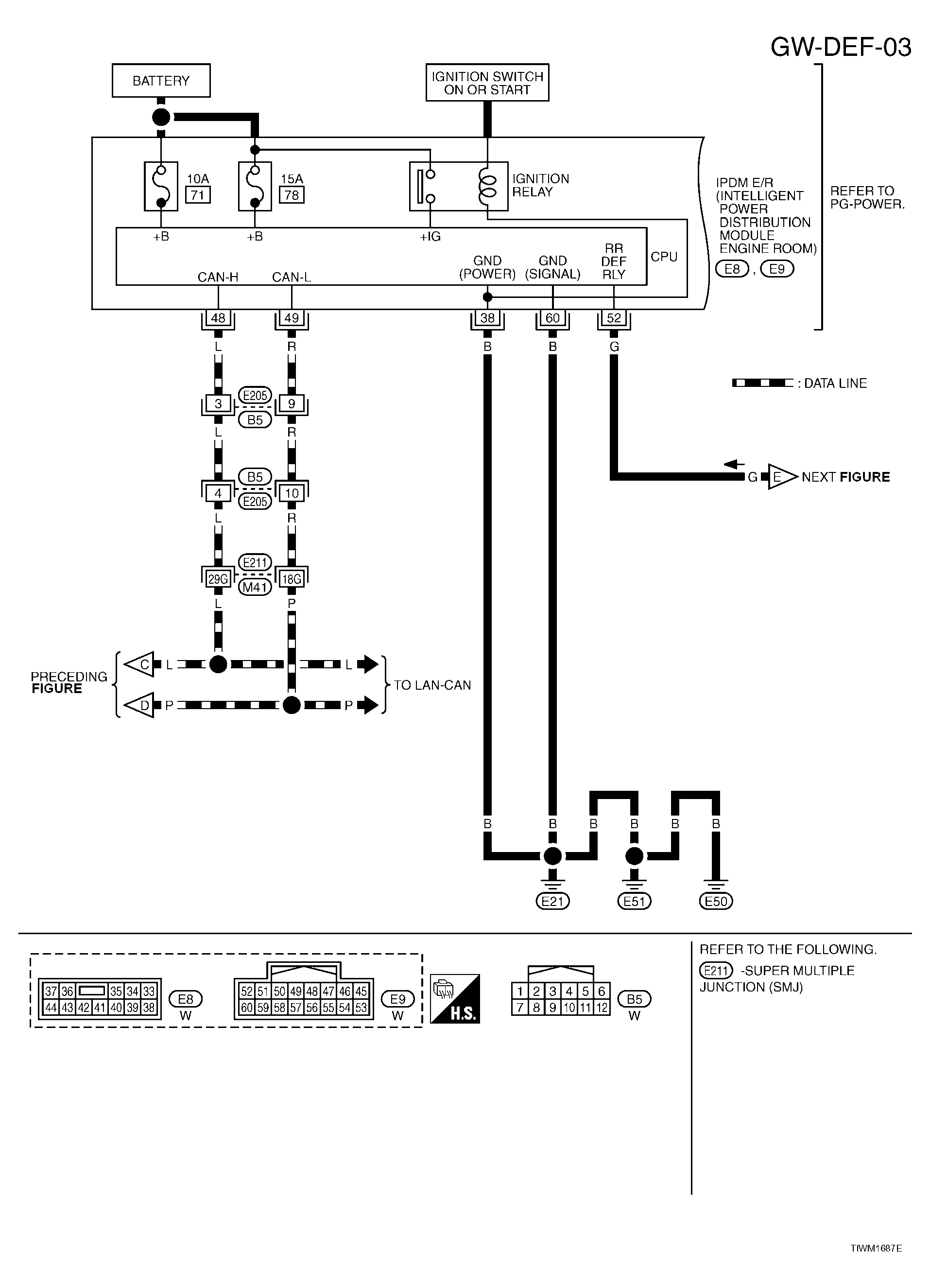

Fig 3: GW-DEF-03 - Wiring Diagram

G04077428

Courtesy of NISSAN MOTOR CO., U.S.A.

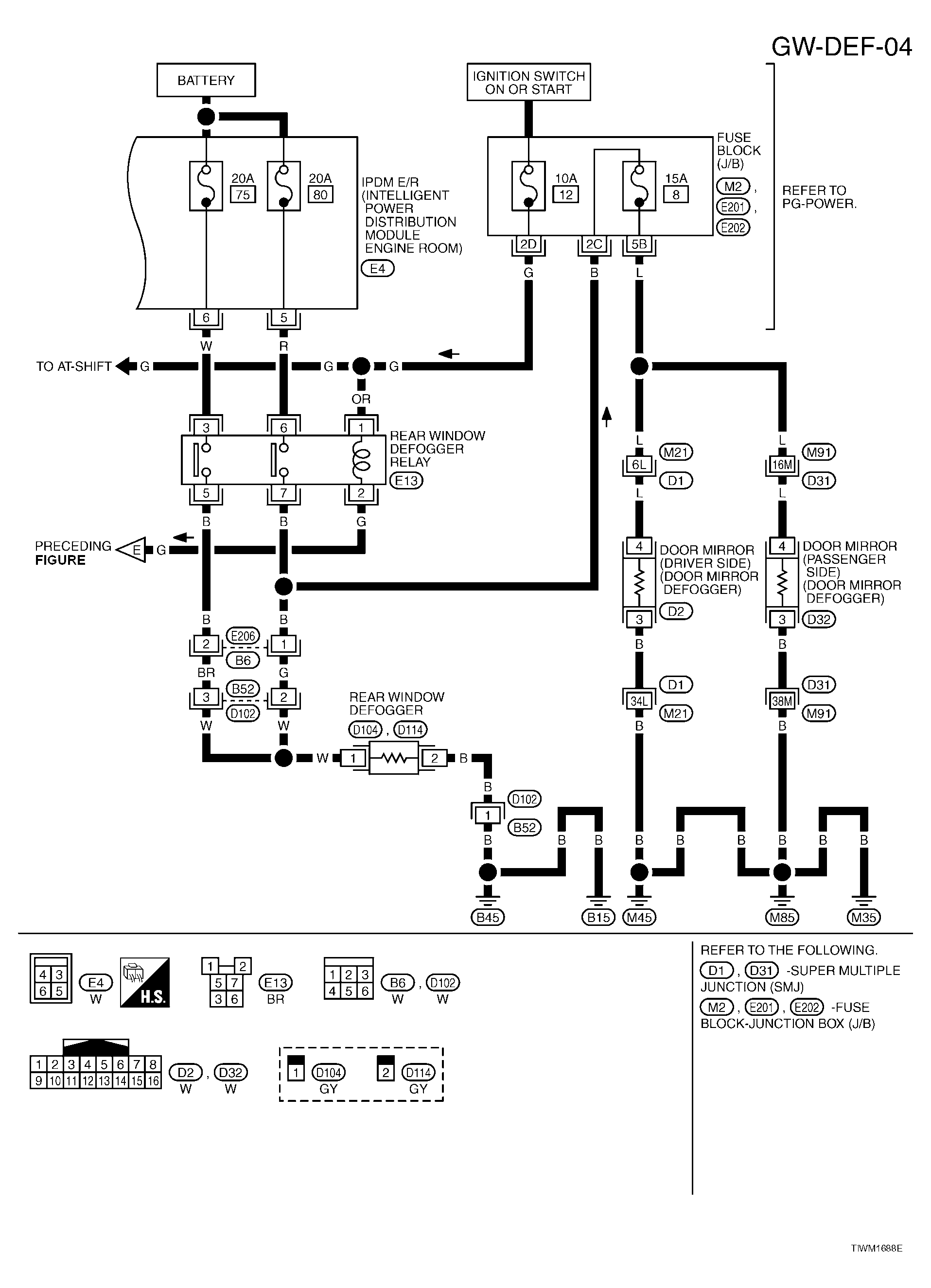

Fig 4: GW-DEF-04 - Wiring Diagram

G04077429

Courtesy of NISSAN MOTOR CO., U.S.A.
