Wiring Diagram - WINDOW -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

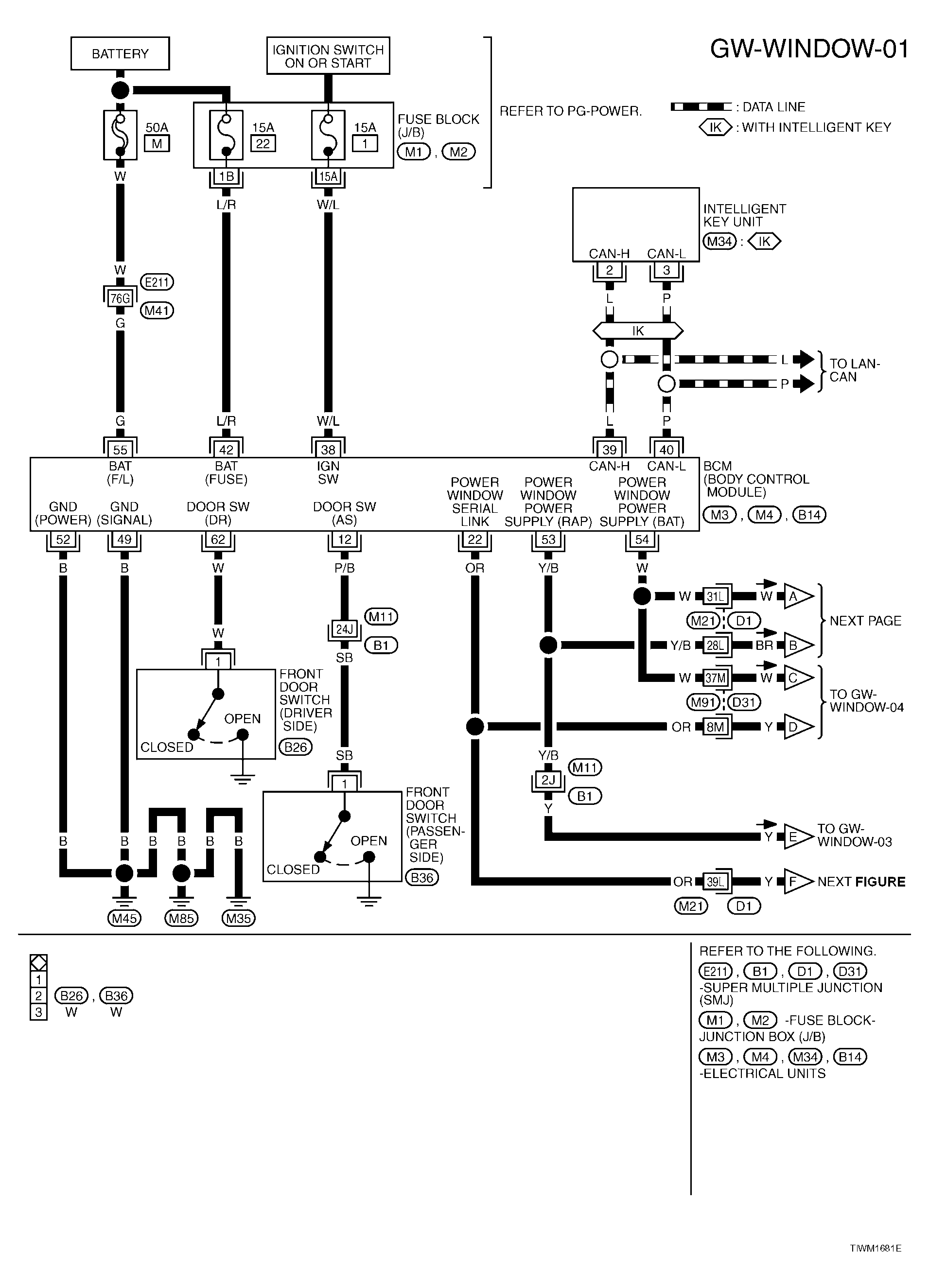

Fig 1: GW-WINDOW-01 - Wiring Diagram
G04077326Courtesy of NISSAN MOTOR CO., U.S.A.

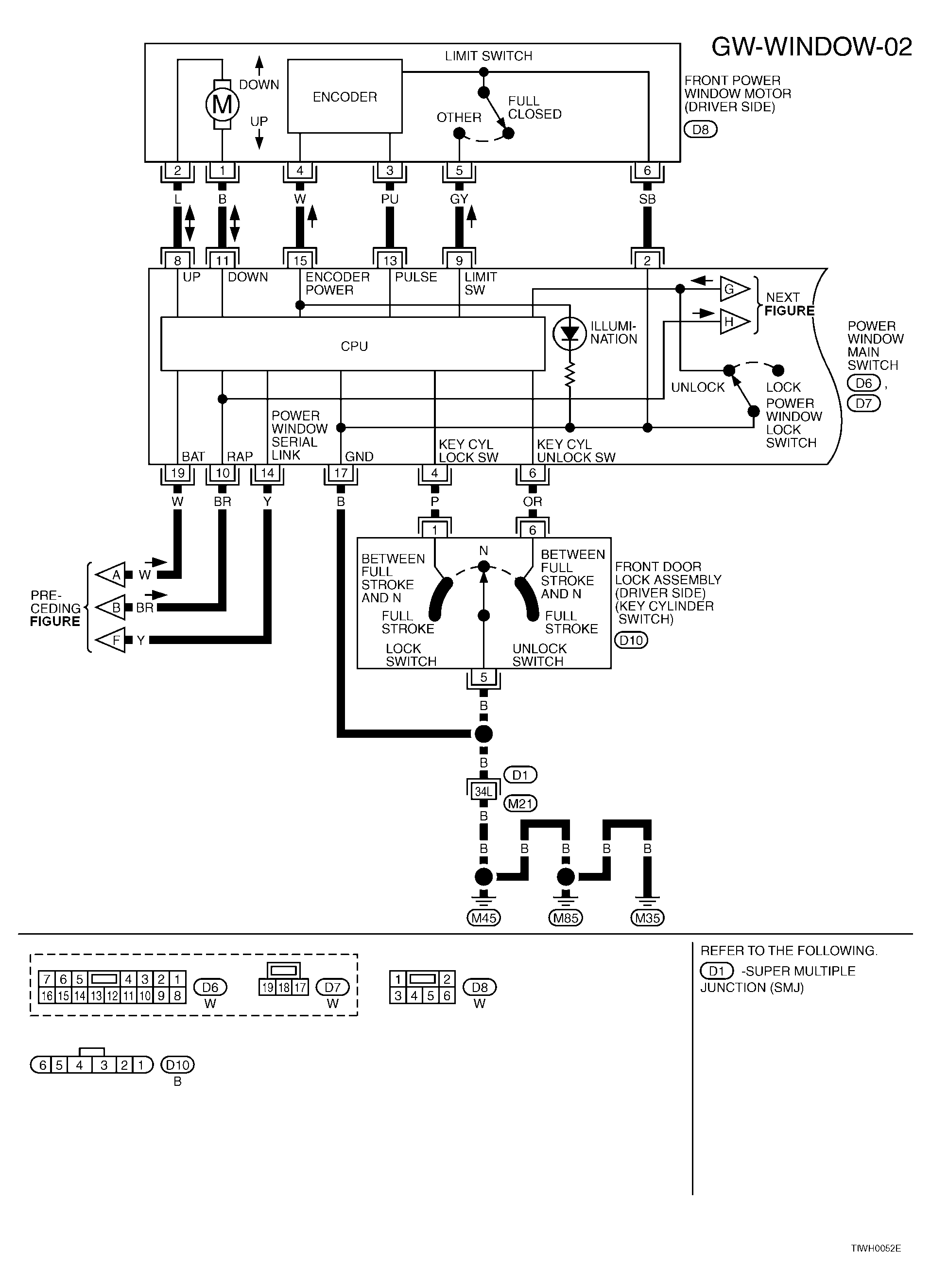

Fig 2: GW-WINDOW-02 - Wiring Diagram
G04077327Courtesy of NISSAN MOTOR CO., U.S.A.

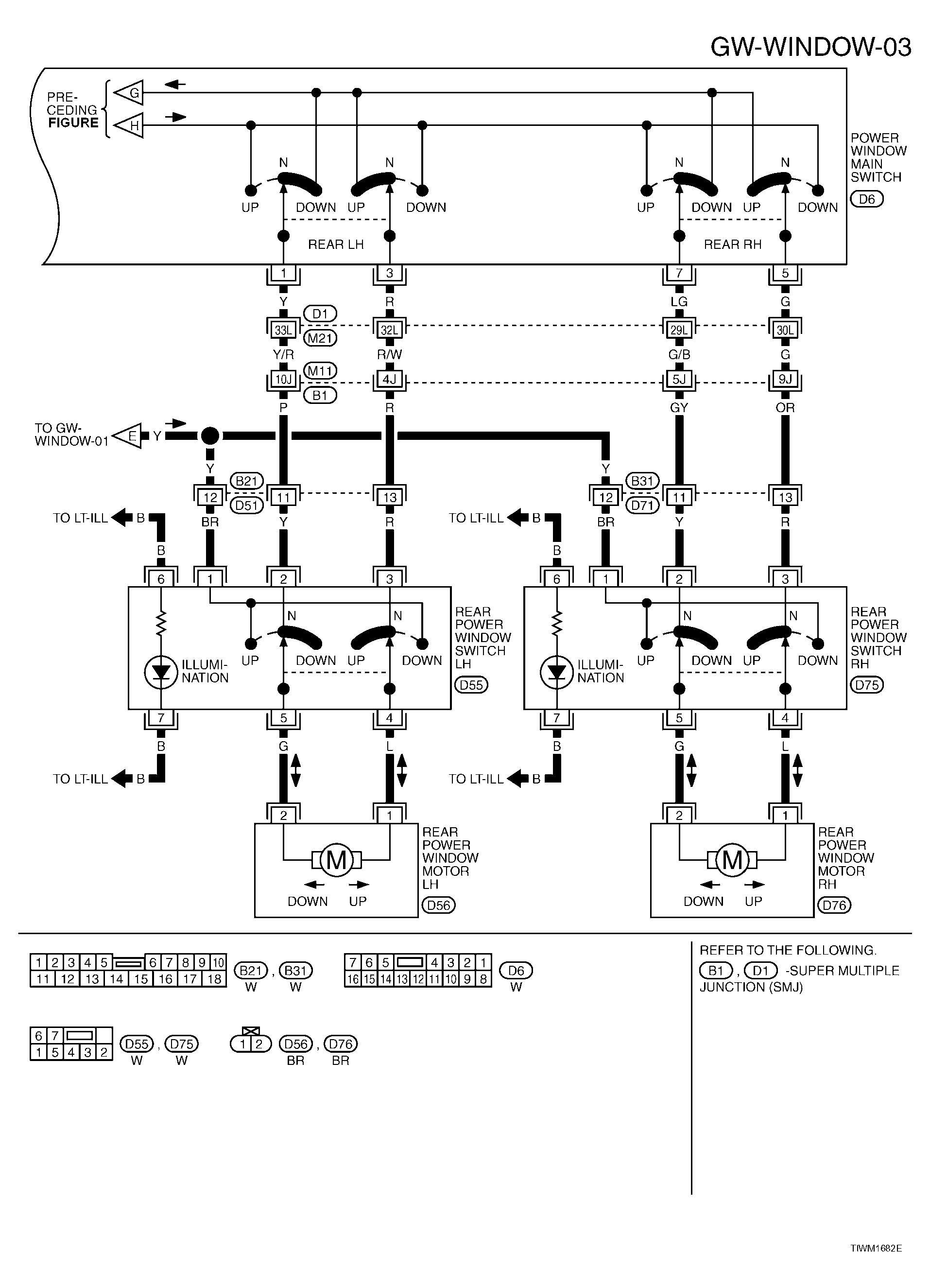

Fig 3: GW-WINDOW-03 - Wiring Diagram
G04077328Courtesy of NISSAN MOTOR CO., U.S.A.

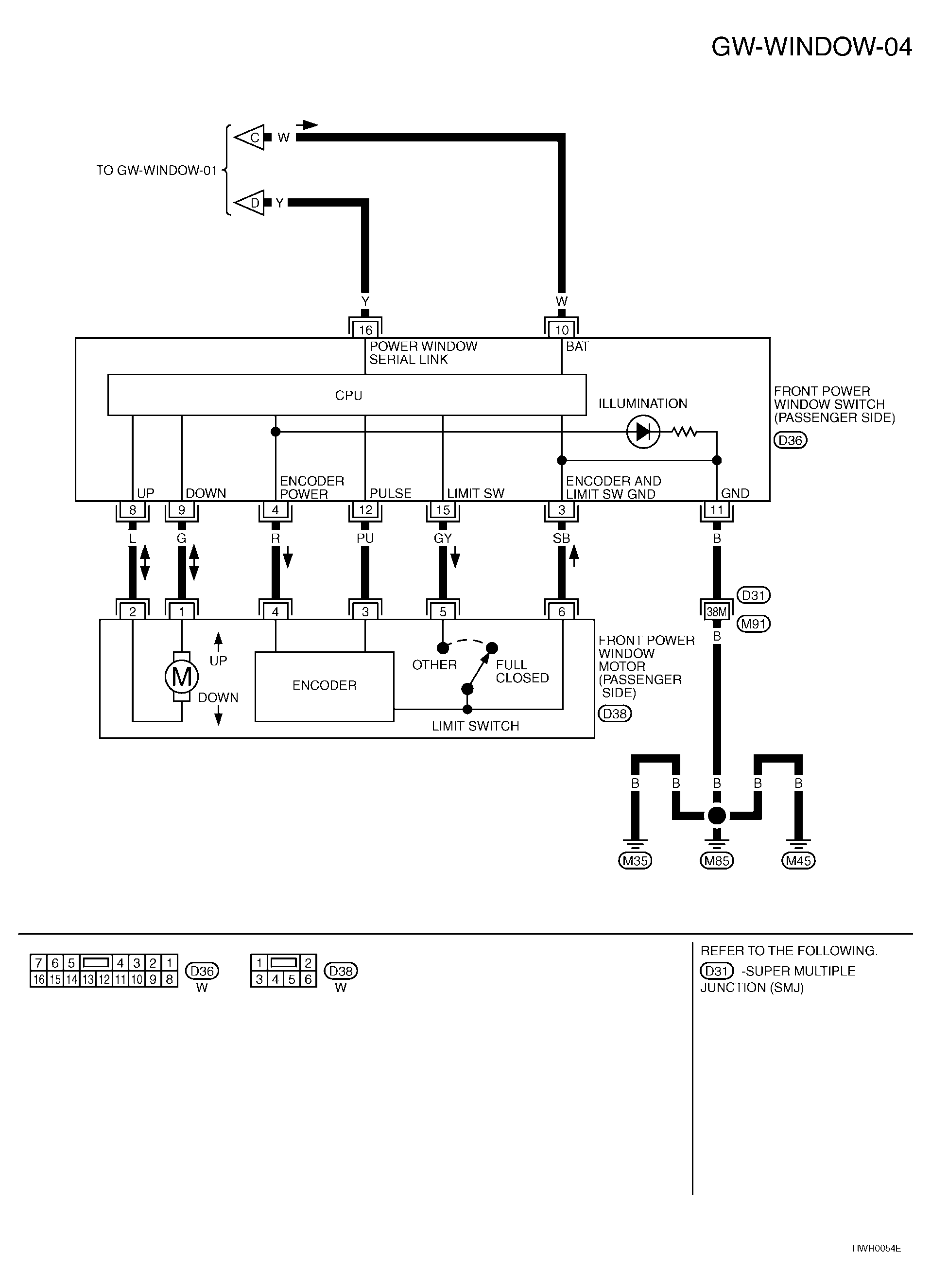

Fig 4: GW-WINDOW-04 - Wiring Diagram
G04077329Courtesy of NISSAN MOTOR CO., U.S.A.
