Wiring Diagram - I/MIRR -
Wiring Diagram - I/MIRR -
For PG, go to
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
.

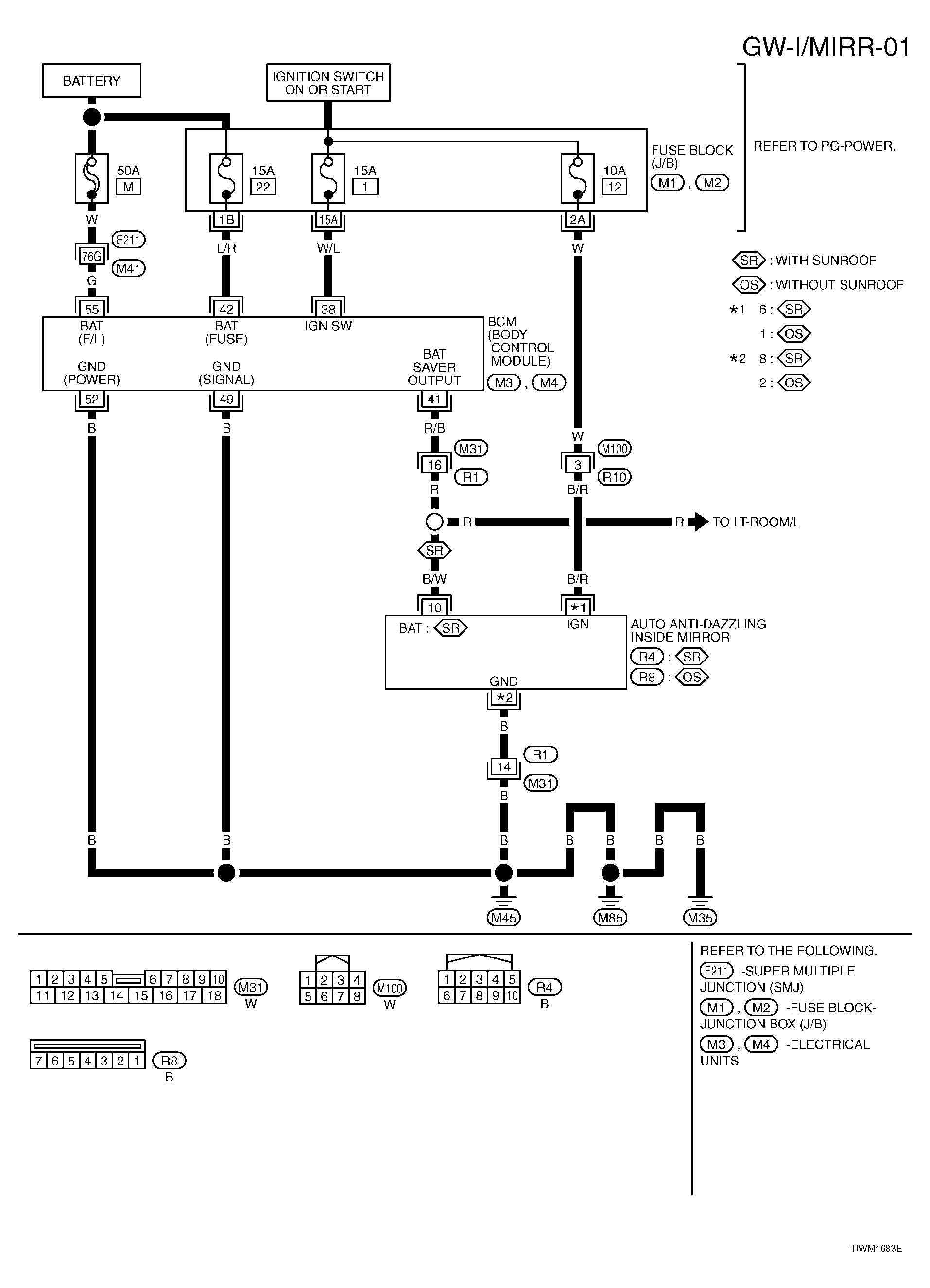

Fig 1: GW-I/MIRR-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
