Disassembly and Assembly: Assembly

  1. Place mirror holder bracket and mirror body assembly (actuator) in a horizontal position.
  2. Connect terminals of heater installed mirror.
  3. Fit the upper pawls on the mirror face onto the mirror holder bracket first, then press the lower side of mirror face until a click sound is heard to engage the lower pawls.
    NOTE: After installation, visually make sure lower pawls are securely engaged from the bottom of mirror face.

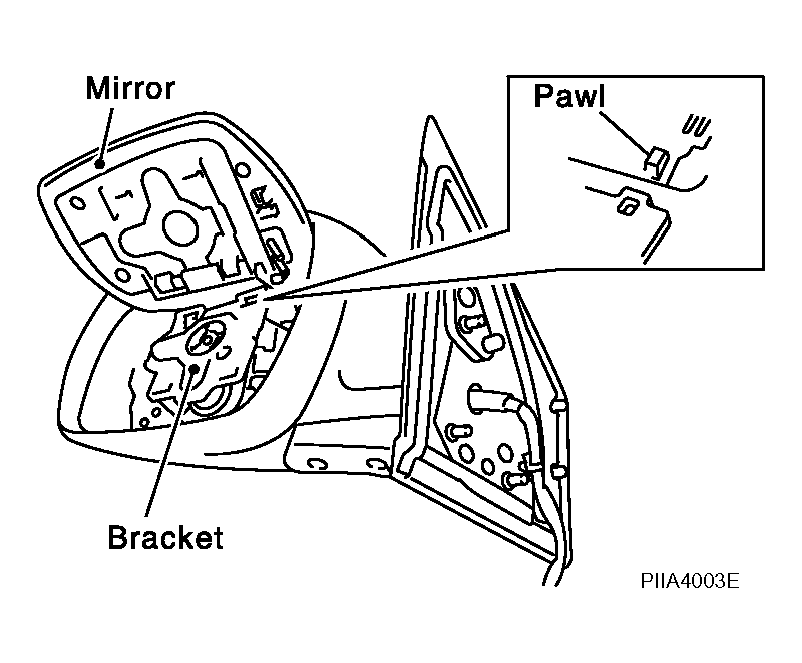

    Fig 1: Fitting Upper Pawls Mirror Face Onto Mirror Holder Bracket
    G04077465Courtesy of NISSAN MOTOR CO., U.S.A.
