Wiring Diagram - CHIME -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

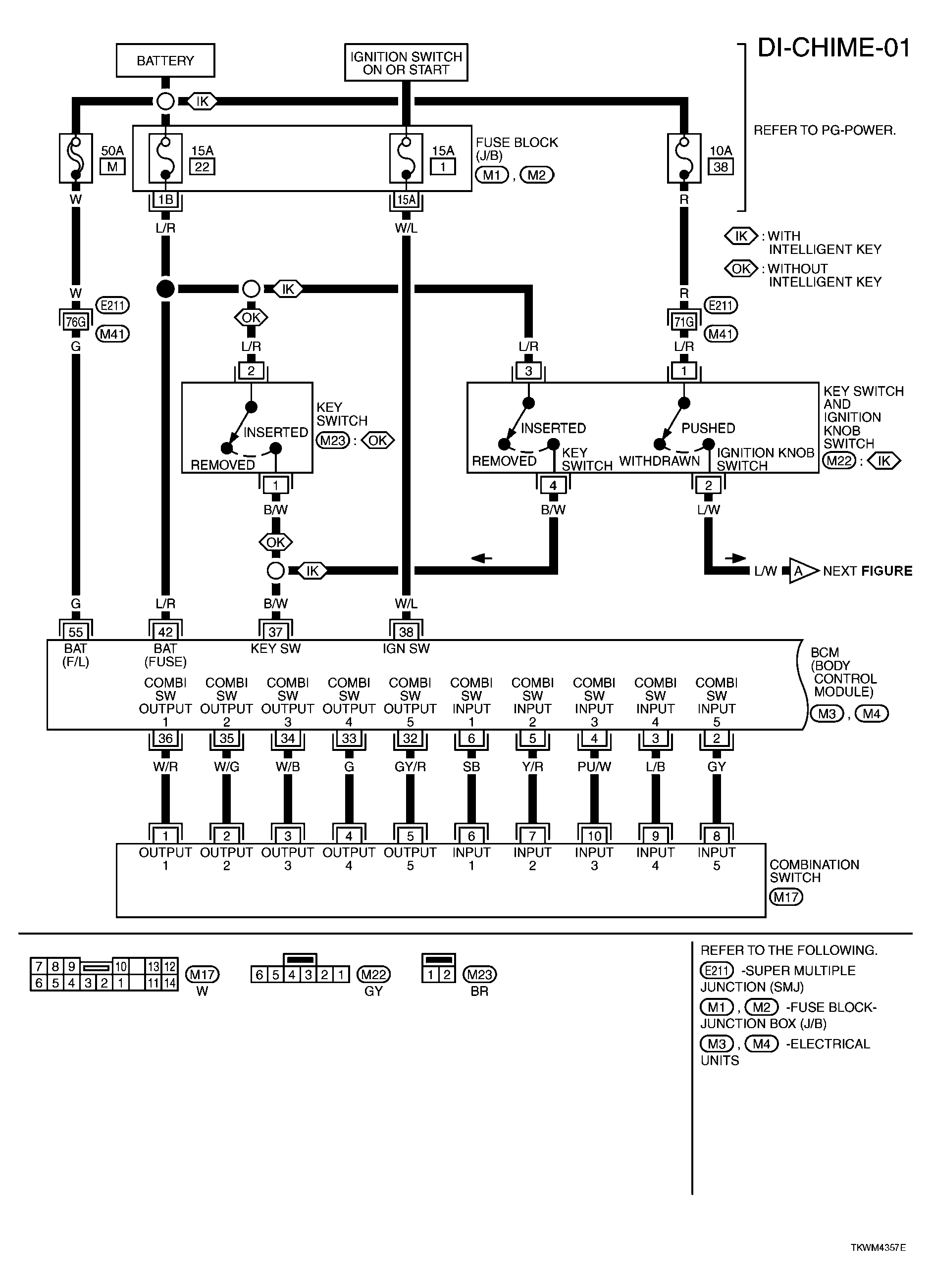

Fig 1: DI-CHIME-01 - Wiring Diagram
G04078514Courtesy of NISSAN MOTOR CO., U.S.A.

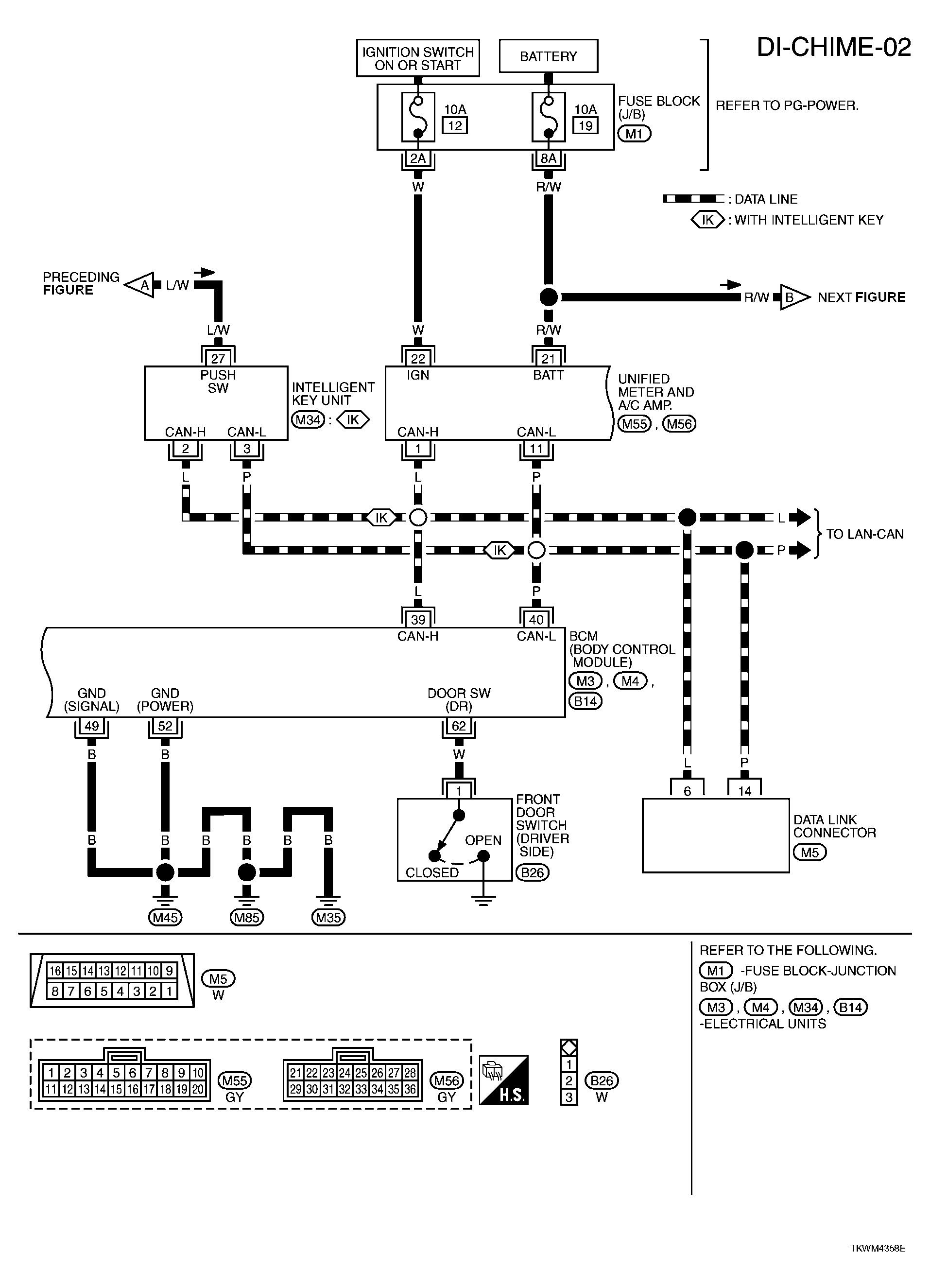

Fig 2: DI-CHIME-02 - Wiring Diagram
G04078515Courtesy of NISSAN MOTOR CO., U.S.A.

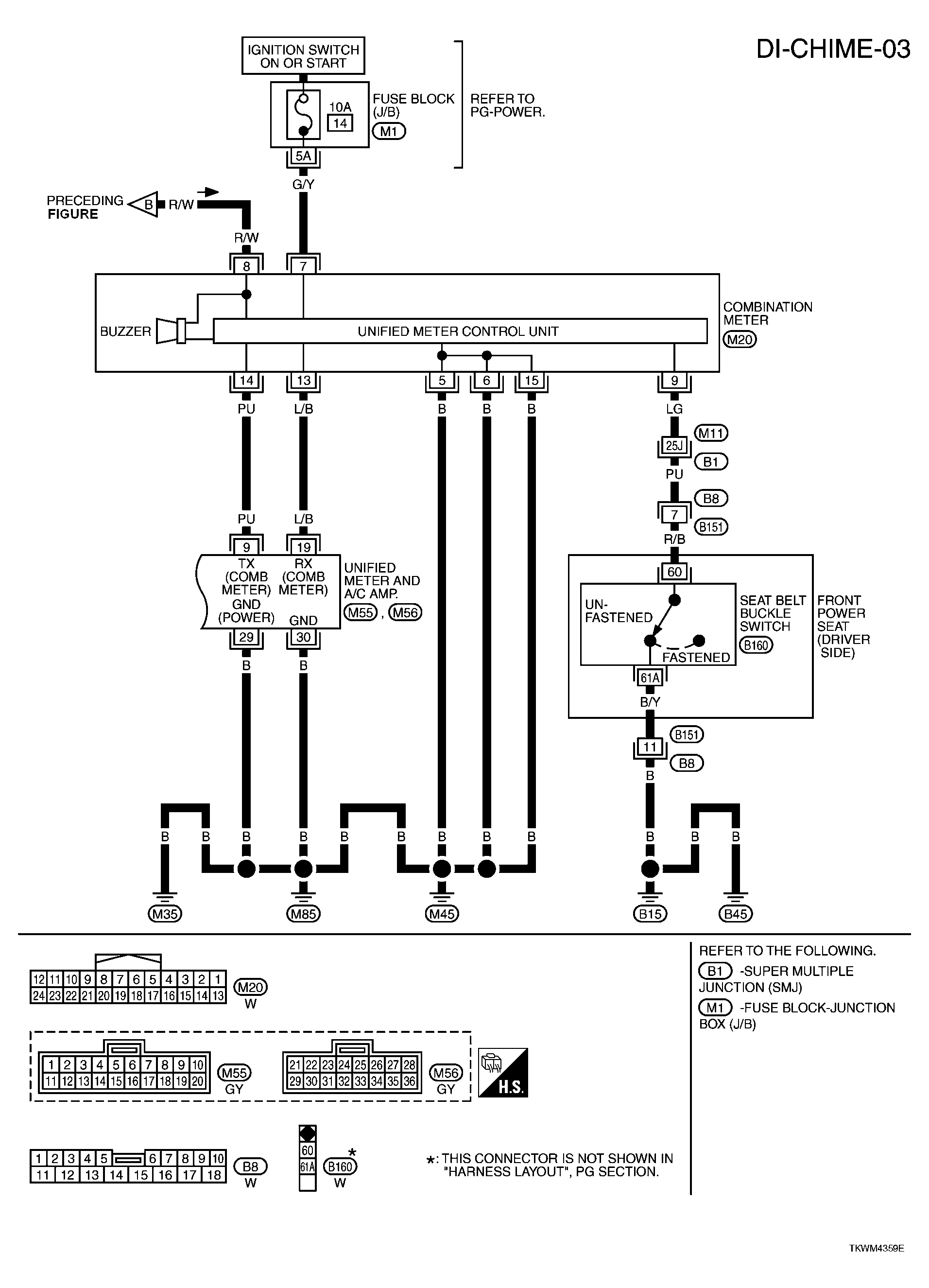

Fig 3: DI-CHIME-03 - Wiring Diagram
G04078516Courtesy of NISSAN MOTOR CO., U.S.A.
