Warning Chime: Schematic

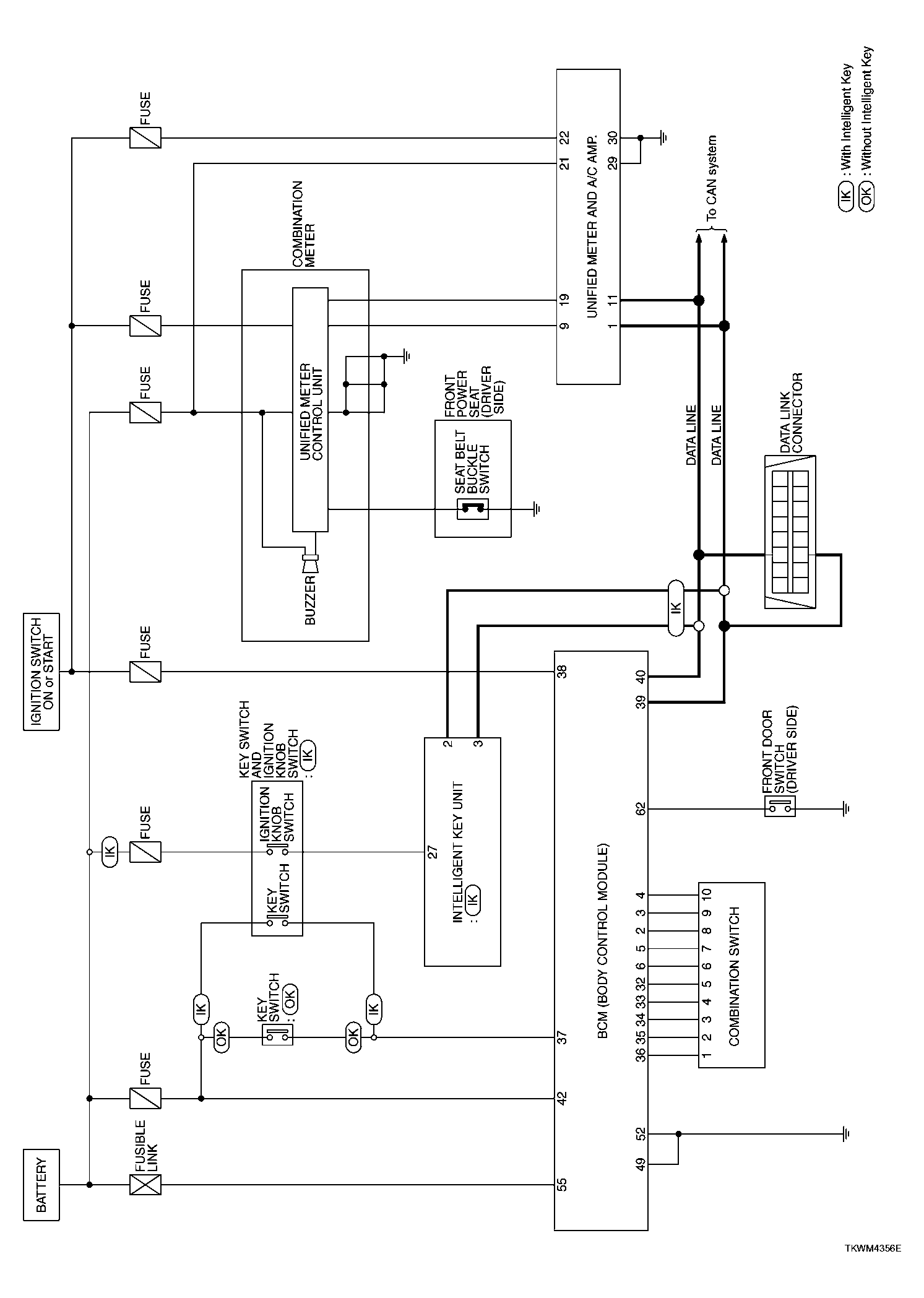

Fig 1: Identifying Warning Chime Schematic Diagram

G04078513

Courtesy of NISSAN MOTOR CO., U.S.A.
