Wiring Diagram - R/VIEW -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

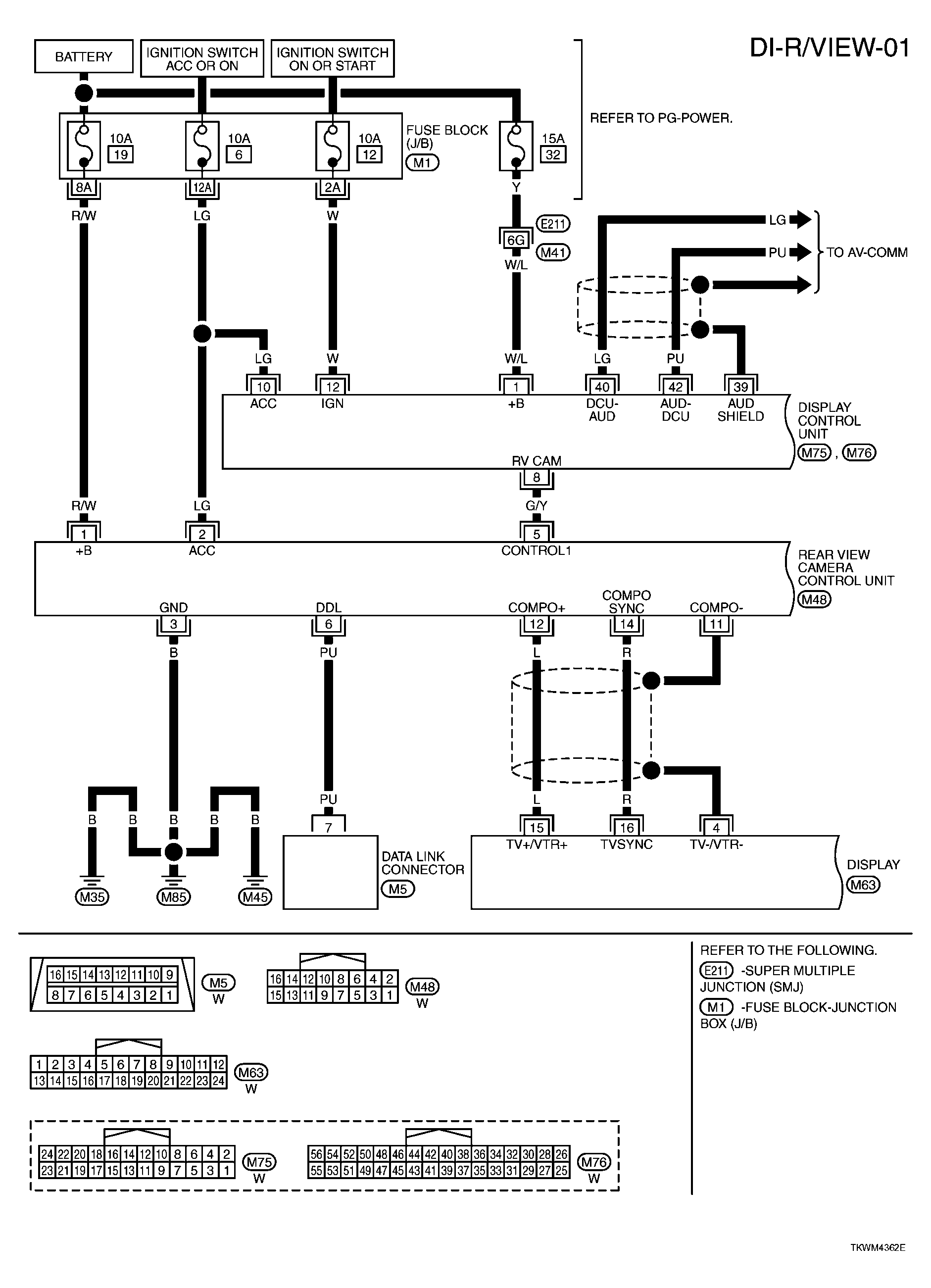

Fig 1: DI-R/VIEW-01 - Wiring Diagram
G04078622Courtesy of NISSAN MOTOR CO., U.S.A.

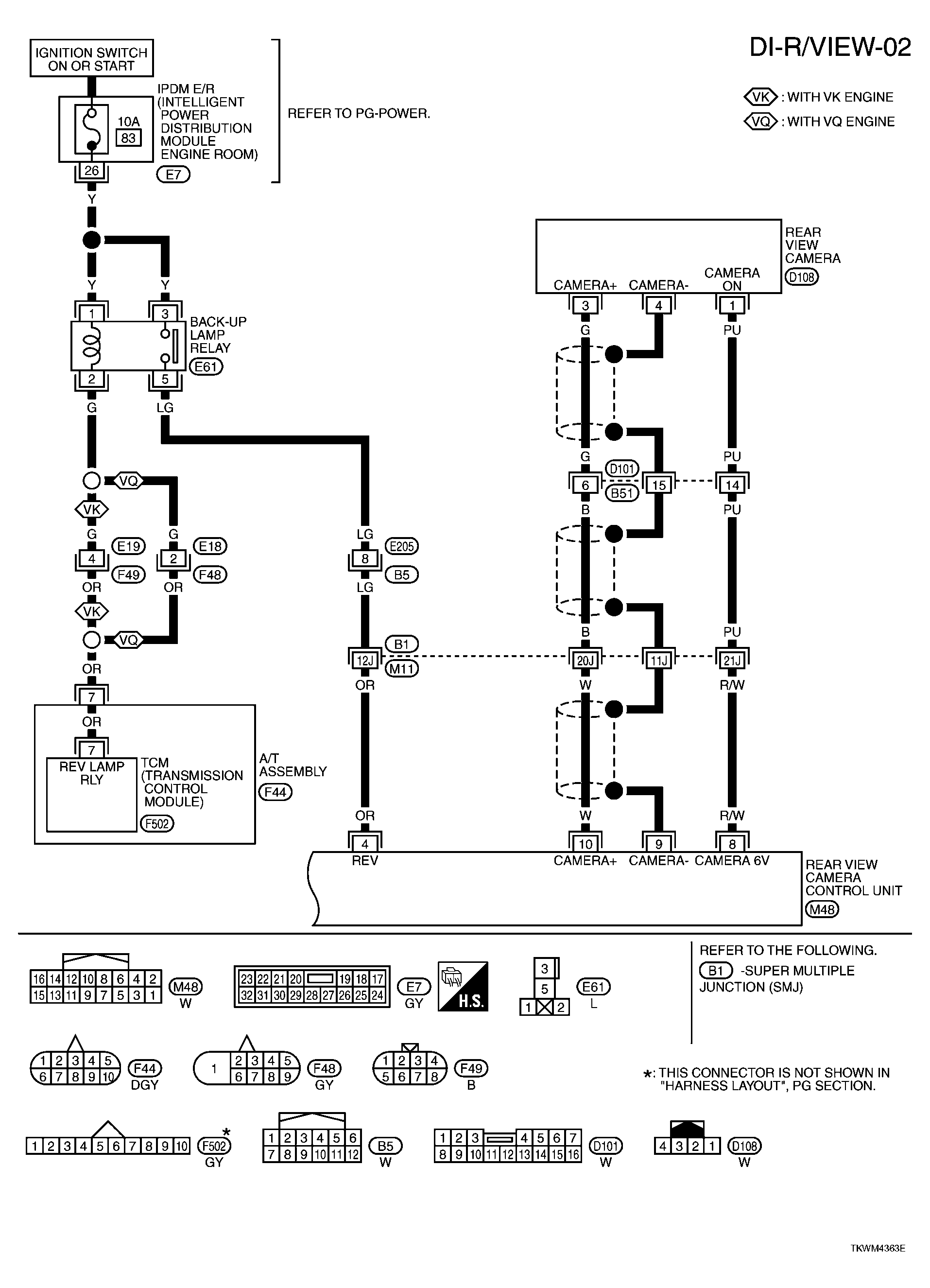

Fig 2: DI-R/VIEW-02 - Wiring Diagram
G04078623Courtesy of NISSAN MOTOR CO., U.S.A.

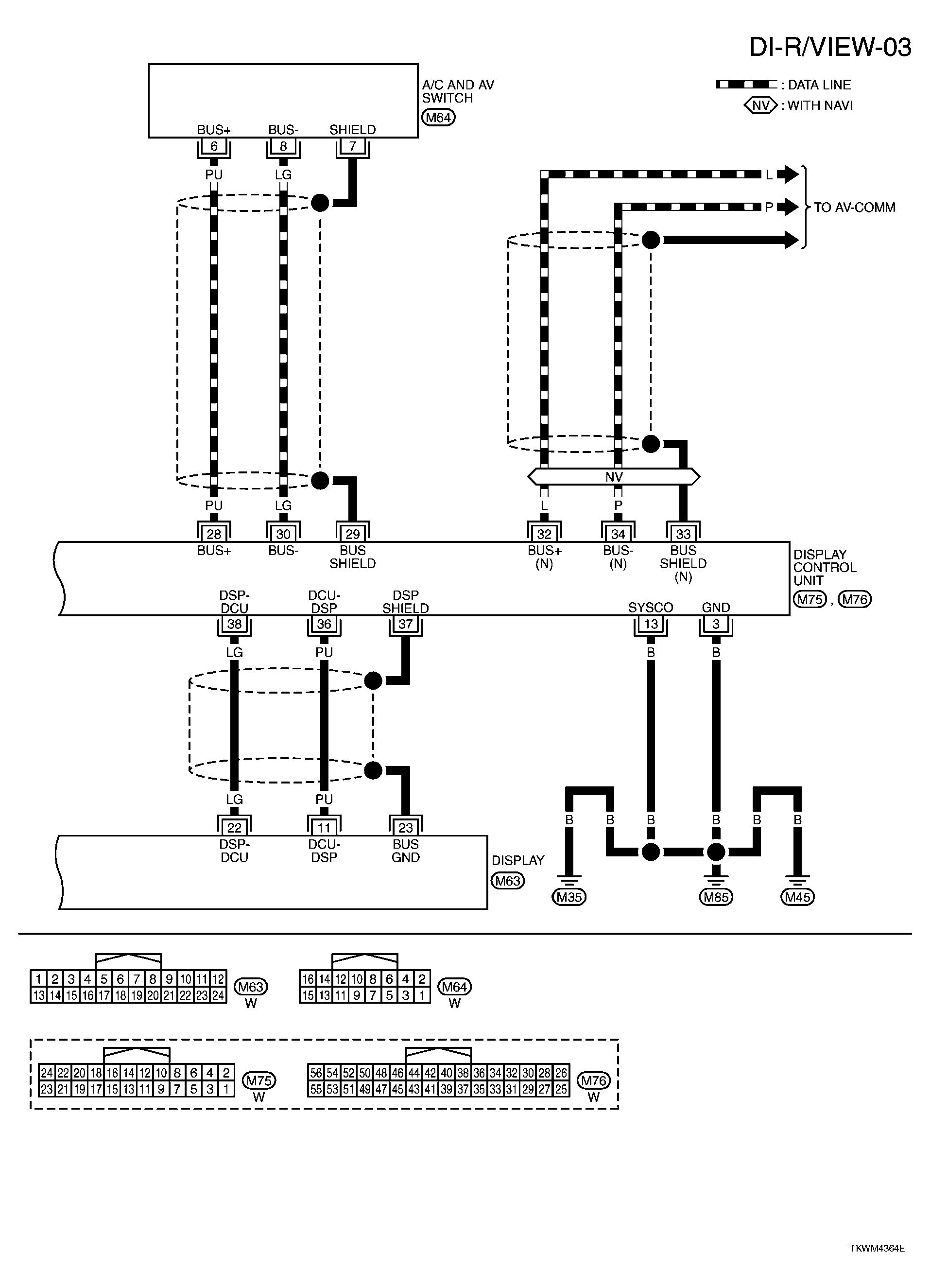

Fig 3: DI-R/VIEW-03 - Wiring Diagram
G04078624Courtesy of NISSAN MOTOR CO., U.S.A.
