Wiring Diagram - LDW -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

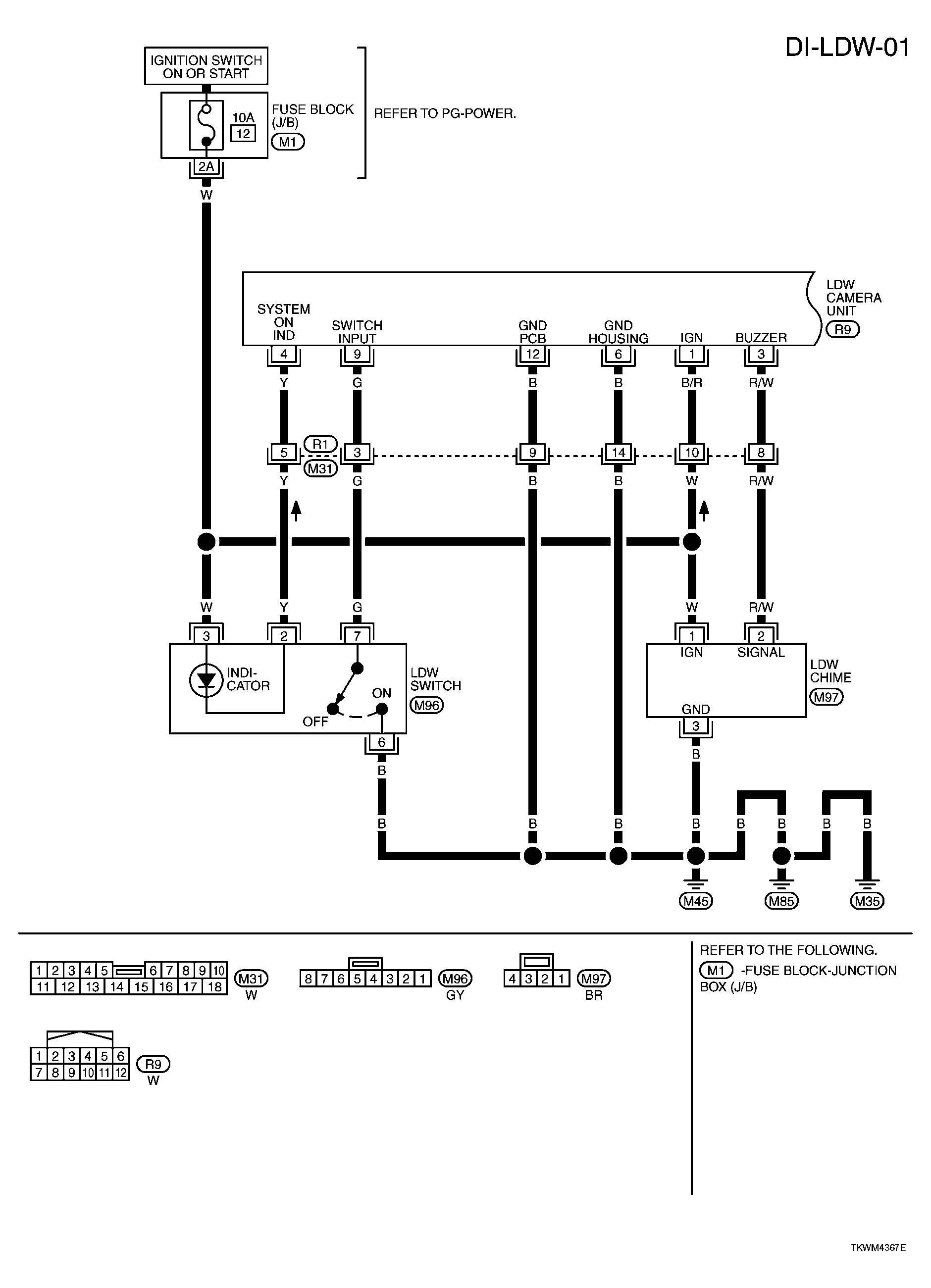

Fig 1: DI-LDW-01 - Wiring Diagram
G04078588Courtesy of NISSAN MOTOR CO., U.S.A.

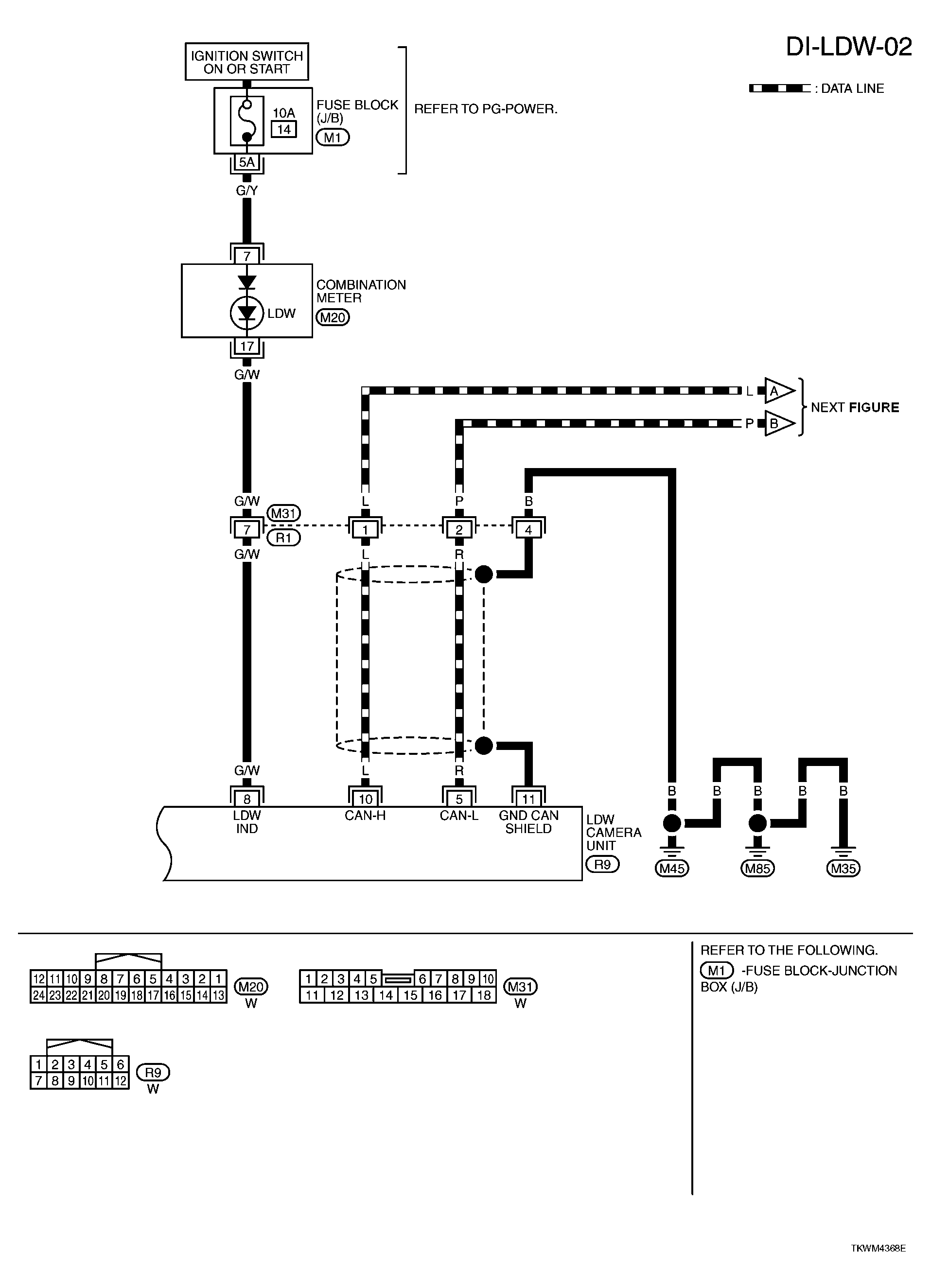

Fig 2: DI-LDW-02 - Wiring Diagram
G04078589Courtesy of NISSAN MOTOR CO., U.S.A.

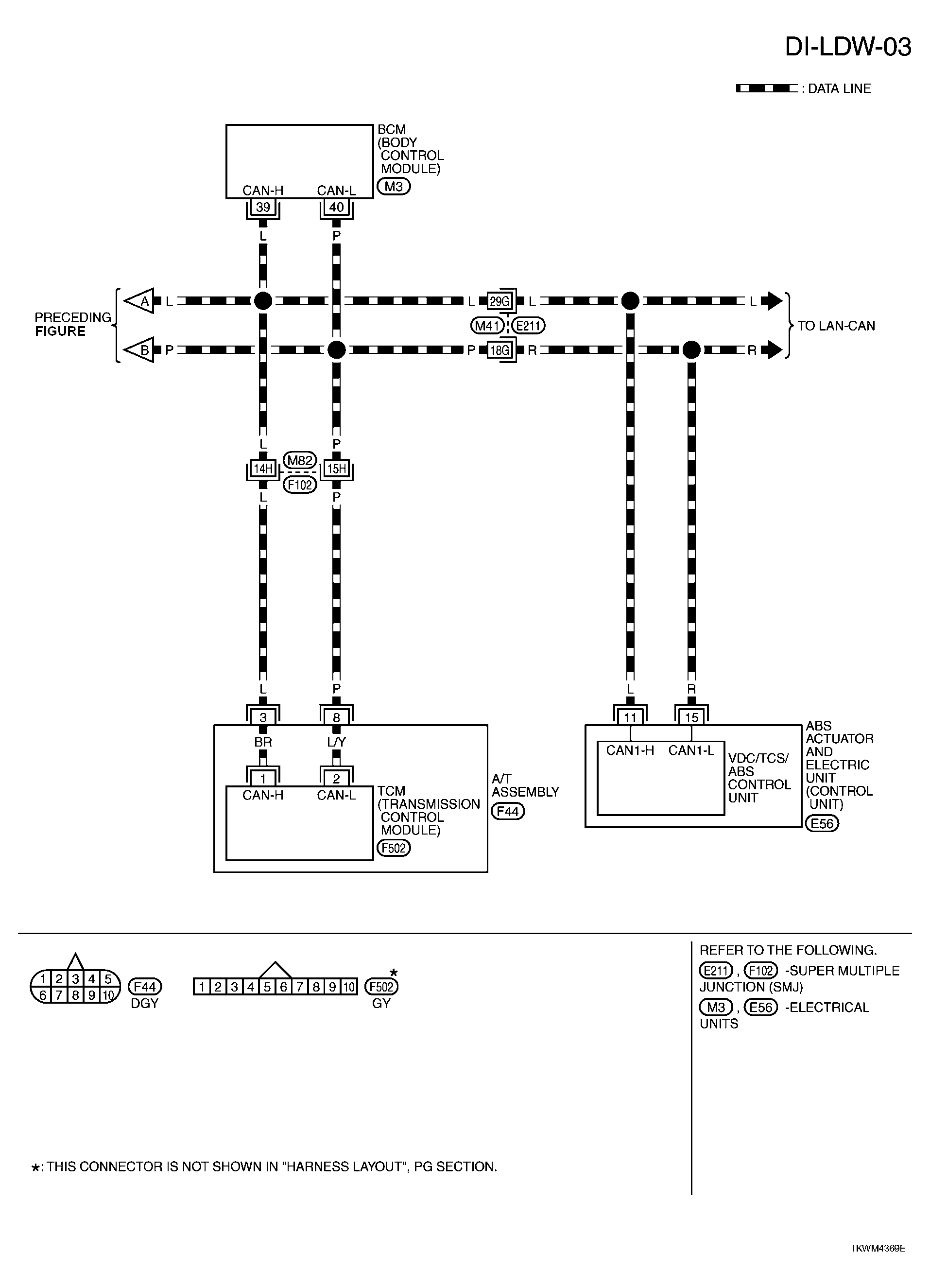

Fig 3: DI-LDW-03 - Wiring Diagram
G04078590Courtesy of NISSAN MOTOR CO., U.S.A.
