Lane Departure Warning System: Schematic

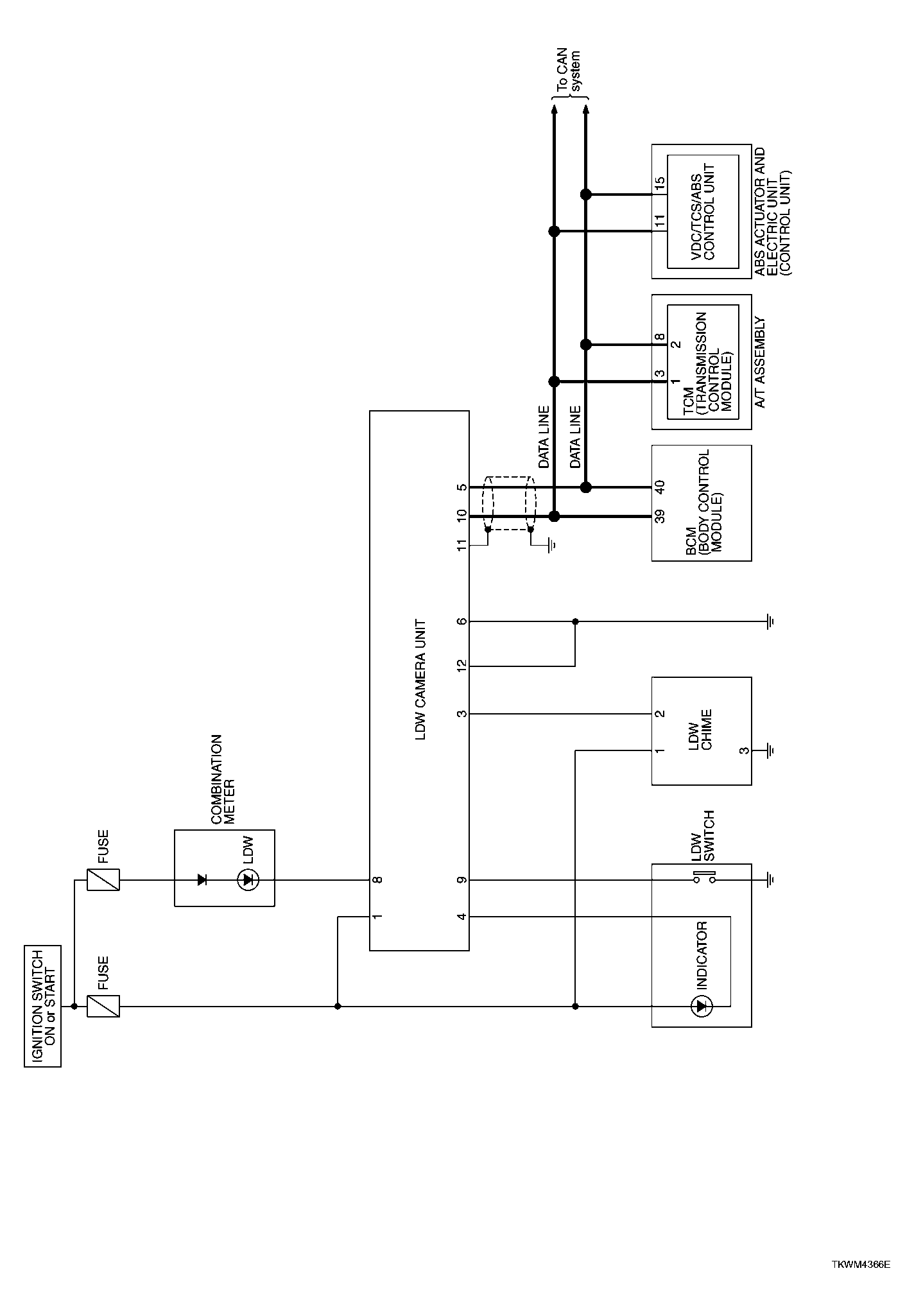

Fig 1: Lane Departure Warning System Schematic Diagram

G04078587

Courtesy of NISSAN MOTOR CO., U.S.A.
