Preparation Aiming Adjustment Jig

For aiming adjustment, prepare the following jigs and targets.

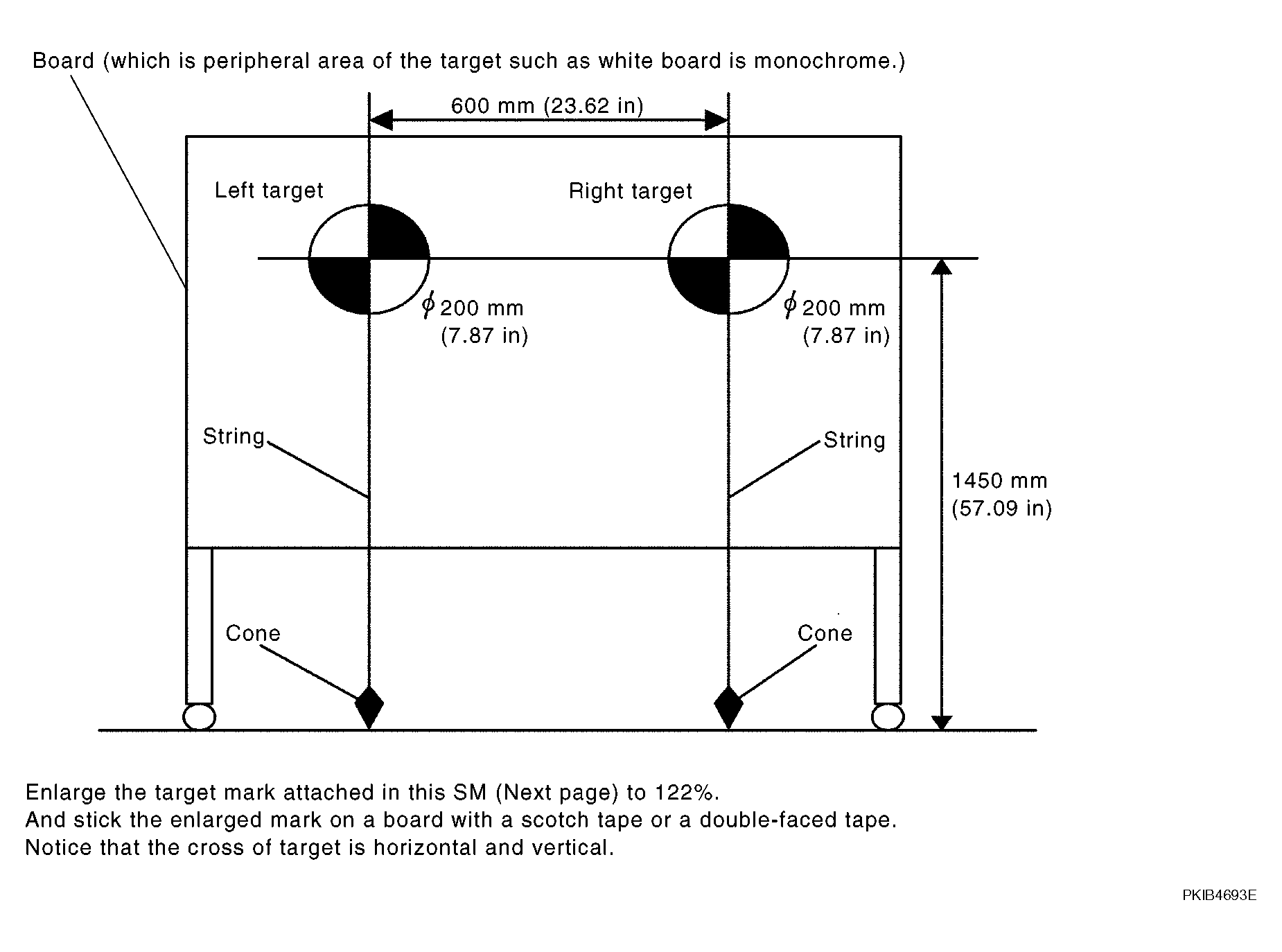

Fig 1: Identifying Target Chart
G04078566Courtesy of NISSAN MOTOR CO., U.S.A.
