Operation Procedure

CAUTION:

Perform the adjustment under unloaded vehicle condition.
LDW indicator is turned off after the removal/installation, and blinks after replacement.

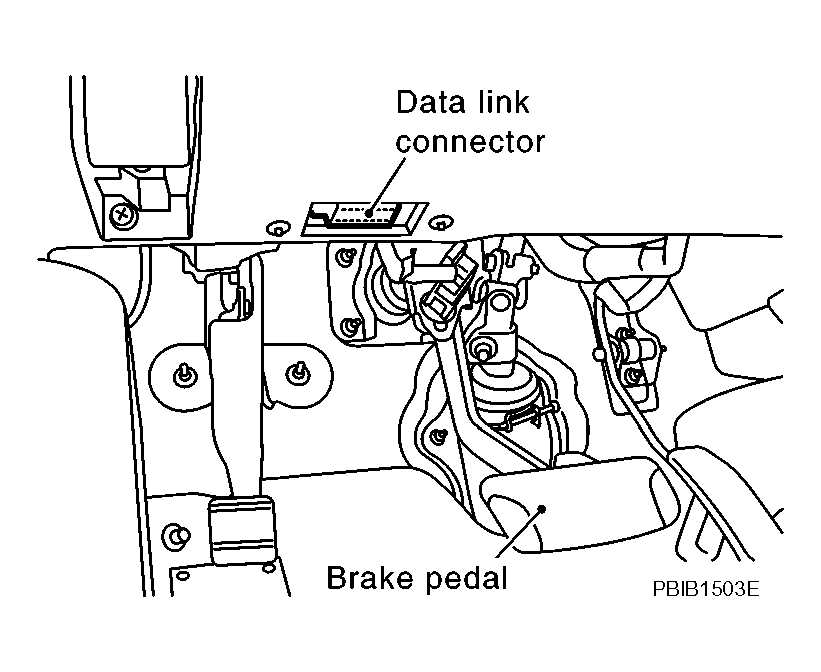

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, and then turn ignition switch ON.

Fig 1: Displaying CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Start the engine, wait for at least 10 seconds, and touch "START (NISSAN BASED VHCL)".

Fig 2: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "LDW" on "SELECT SYSTEM" screen.
If "LDW" is not displayed, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.

Fig 4: Consult-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "AUTO AIM" on "SELECT WORK ITEM" screen.

Fig 5: Displaying Auto Aim
Courtesy of NISSAN MOTOR CO., U.S.A.
The target should be accurately placed.
The vehicle should be stopped.

After confirming the above, touch "START" to perform aiming.

CAUTION: Never touch "START" when the target is not placed.

Fig 6: Displaying Auto Aim
Courtesy of NISSAN MOTOR CO., U.S.A.

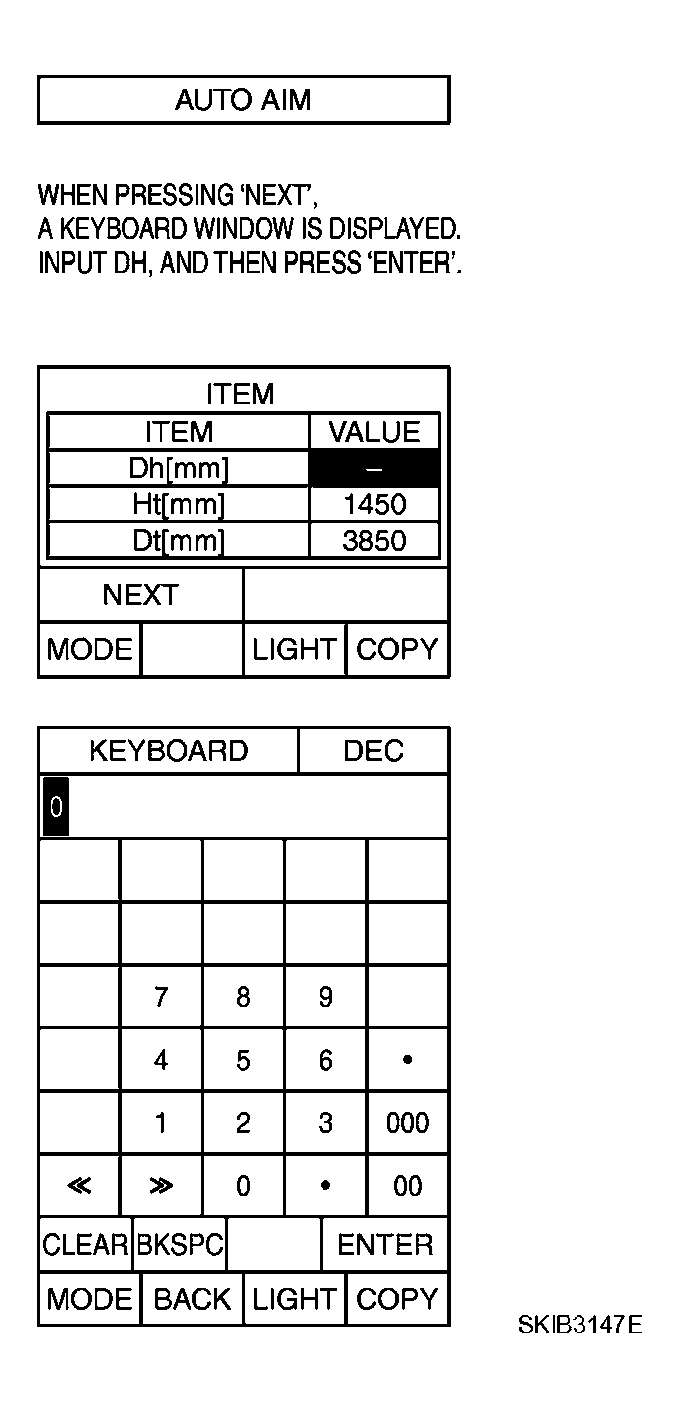

Touch "NEXT", then a keyboard window is displayed. And input "DH", and then touch "ENTER".
NOTE: Check the value "DH". Refer to "VEHICLE HEIGHT CHECK ".

Fig 7: Displaying Next Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the regulated value. (Spec.)
NOTE: Check the value input at step 8.
1. Touch "NEXT" if appropriate.
2. Touch "CHANGE SET" to change "DH".

  Fig 8: Displaying Auto Aim
  Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "NEXT".
CAUTION: Never change "HT".

Fig 9: Displaying Auto Aim
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "NEXT".
CAUTION: Never change "DT".

Fig 10: Displaying Auto Aim
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

Fig 11: Displaying Auto Aim
Courtesy of NISSAN MOTOR CO., U.S.A.

Check it display item.

"NORMALLY COMPLETED" is displayed, then touching "COMPLETION".

Fig 12: Displaying Auto Aim
Courtesy of NISSAN MOTOR CO., U.S.A.

Perform the following services when displayed "SUSPENSION" or "ABNORMALLY COMPLETED".

Fig 13: Displaying Work Support

Courtesy of NISSAN MOTOR CO., U.S.A.

ITEM CHART

Displays item		Service procedure
SUSPENSION	00H Routine not activated	Position the target appropriately again. Perform the aiming again. Refer to "CAMERA AIMING ADJUSTMENT ".
SUSPENSION	10H Writing error
ABNORMALLY COMPLETED	-

NOTE: Replace camera unit if "suspension" is repeatedly indicated though the above two service is performed.

Check if "NORMALLY COMPLETED" is displayed and close the aiming adjustment procedure by touching "END".

Fig 14: Displaying Auto Aim
Courtesy of NISSAN MOTOR CO., U.S.A.
