Wiring Diagram - METER -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

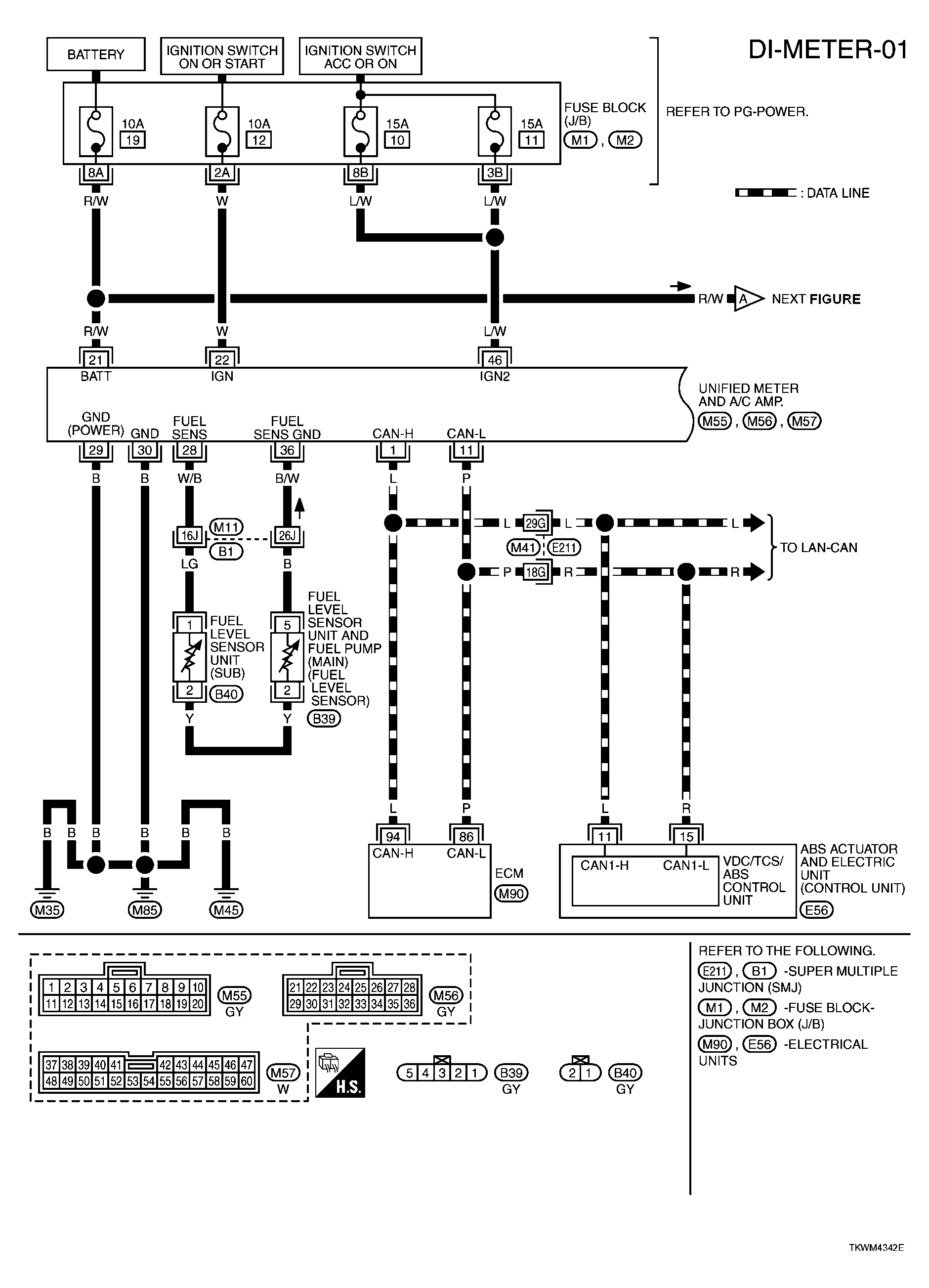

Fig 1: DI-METER-01 - Wiring Diagram
G04078434Courtesy of NISSAN MOTOR CO., U.S.A.

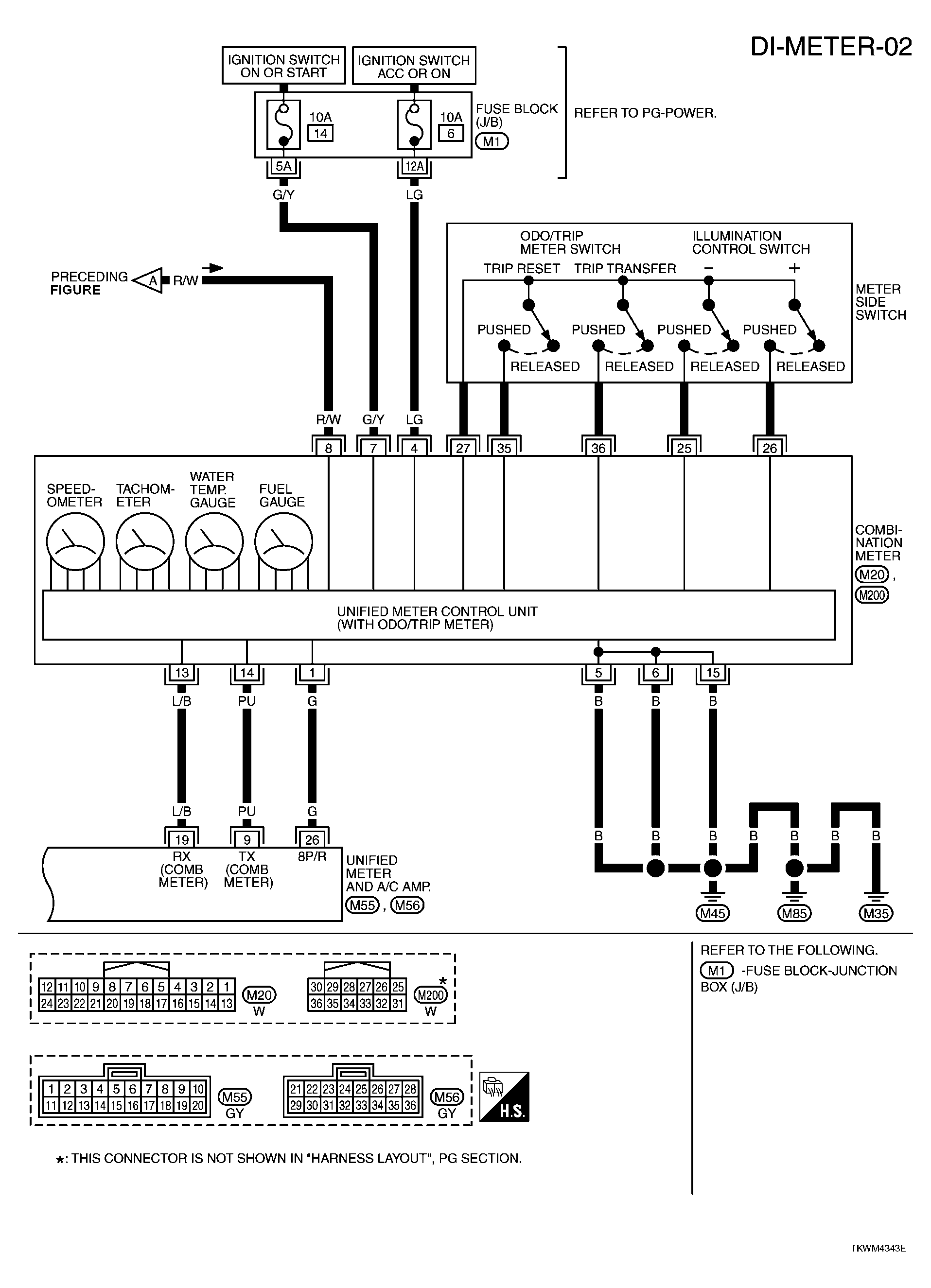

Fig 2: DI-METER-02 - Wiring Diagram
G04078435Courtesy of NISSAN MOTOR CO., U.S.A.
