Wiring Diagram - CLOCK -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

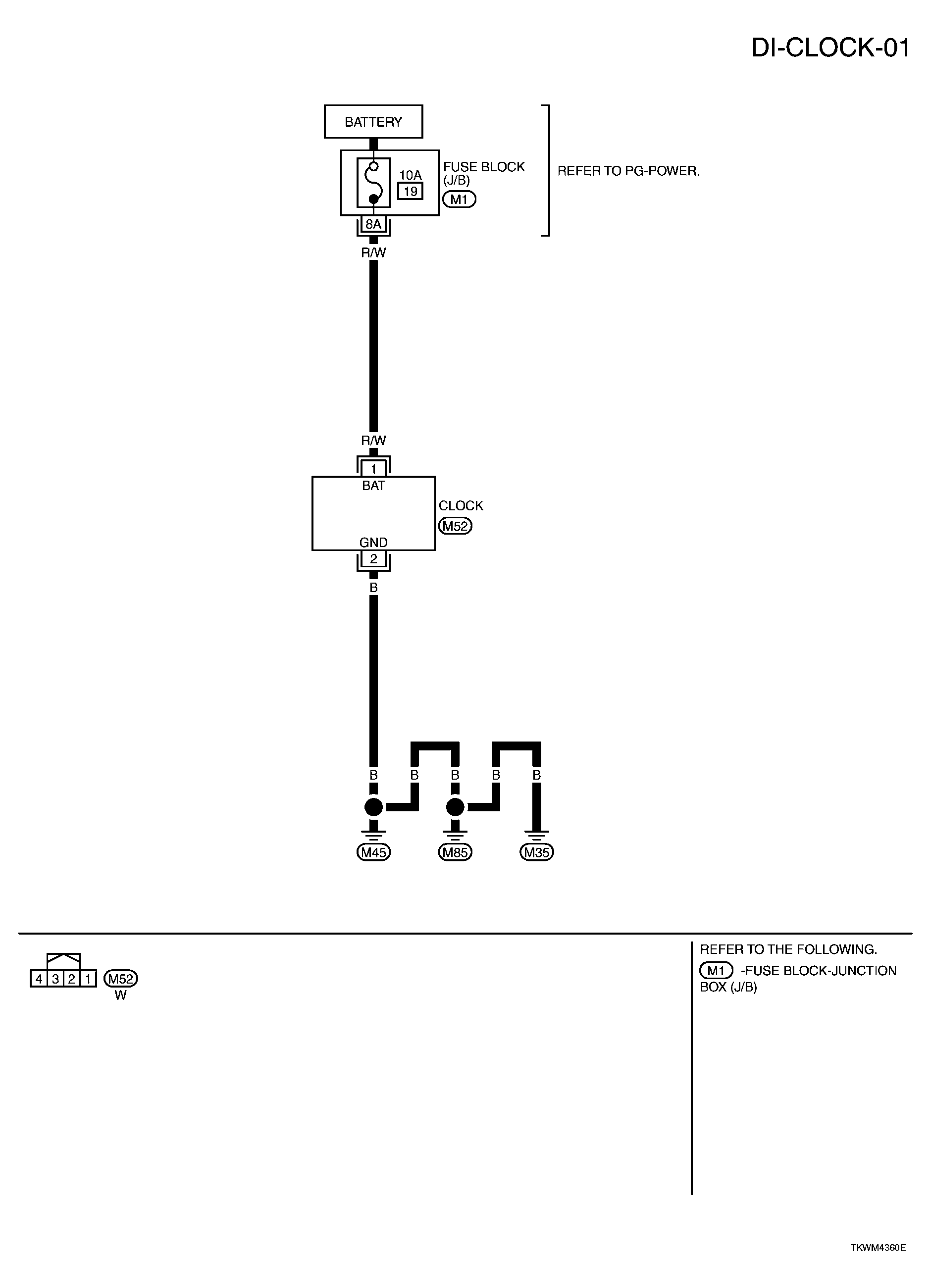

Fig 1: DI-CLOCK-01 - Wiring Diagram

G04078618

Courtesy of NISSAN MOTOR CO., U.S.A.
