Wiring Diagram - AT/IND -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

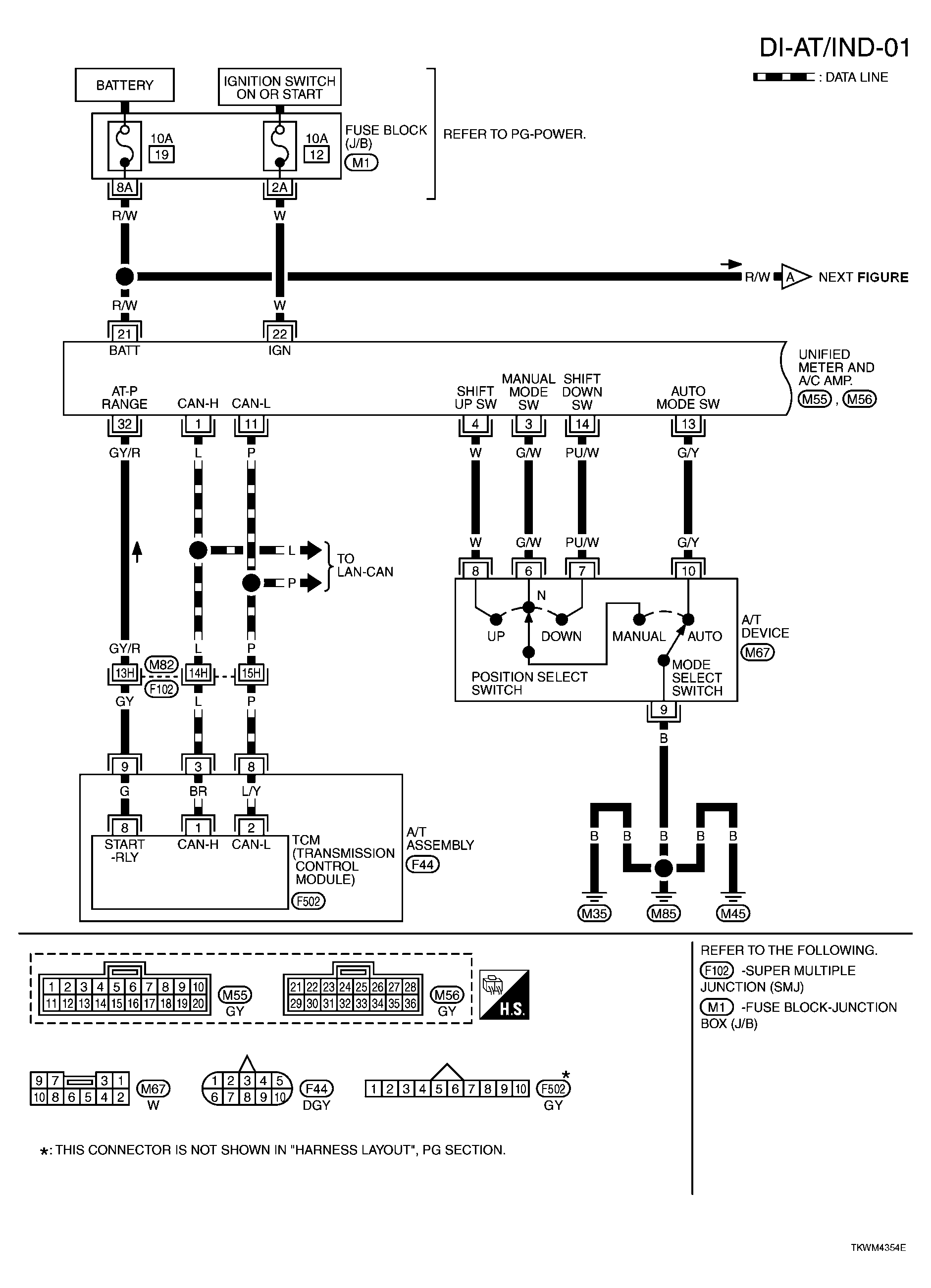

Fig 1: DI-AT/IND-01 - Wiring Diagram
G04078504Courtesy of NISSAN MOTOR CO., U.S.A.

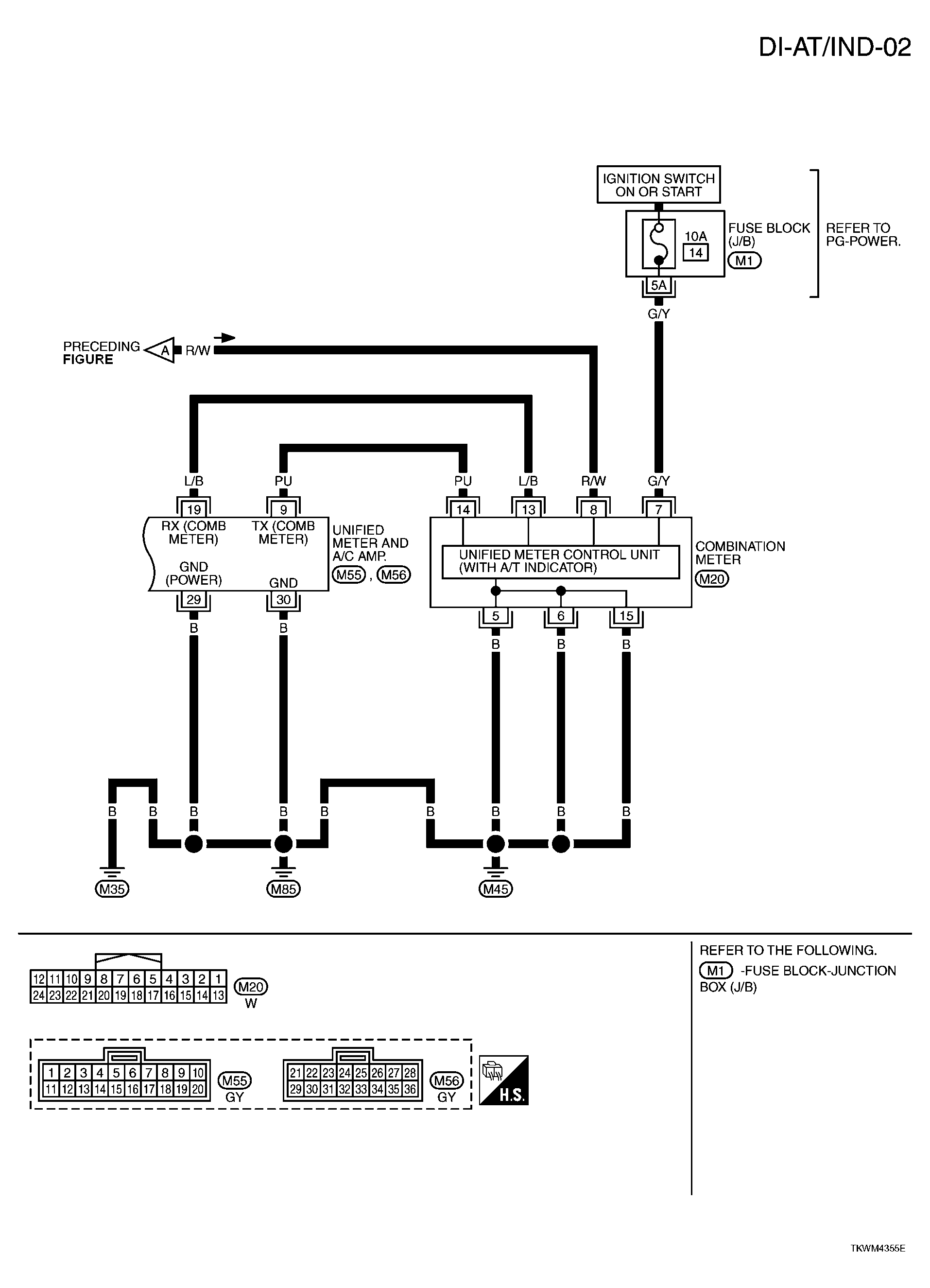

Fig 2: DI-AT/IND-02 - Wiring Diagram
G04078505Courtesy of NISSAN MOTOR CO., U.S.A.
