Removal and Installation for BOSE Speaker Amp.: Removal

  1. Remove luggage side box assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove nuts (3) with power tool, and remove BOSE speaker amp. from luggage room floor.

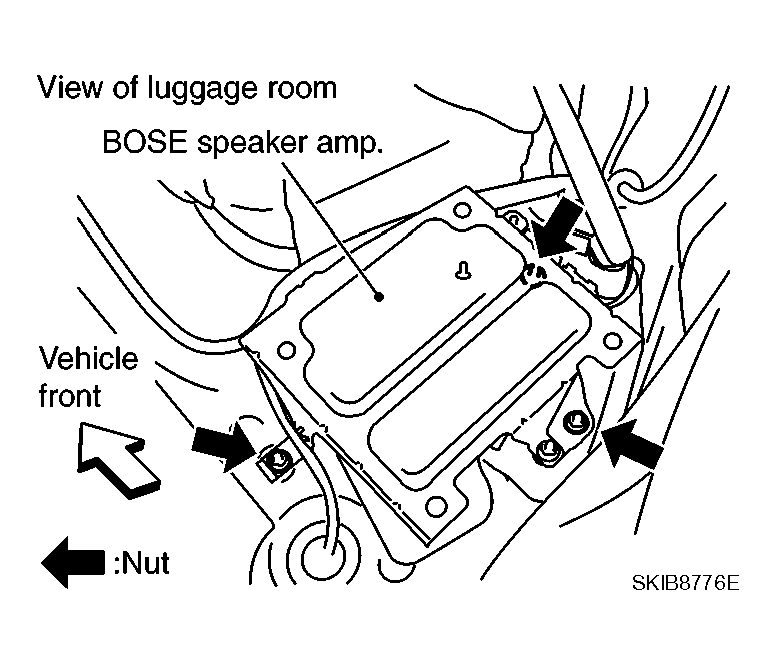

    Fig 1: Identifying BOSE Speaker Amp. From Luggage Room Floor
    G04079136Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove nuts (2) with power tool, and remove assist bracket.
  4. Remove nuts (4) with power tool, and remove bracket.
    Fig 2: Identifying Assist Bracket
    G04079137Courtesy of NISSAN MOTOR CO., U.S.A.
