Removal and Installation of Roof Antenna: Removal
- Remove head lining. Refer to
"HEADLINING
".

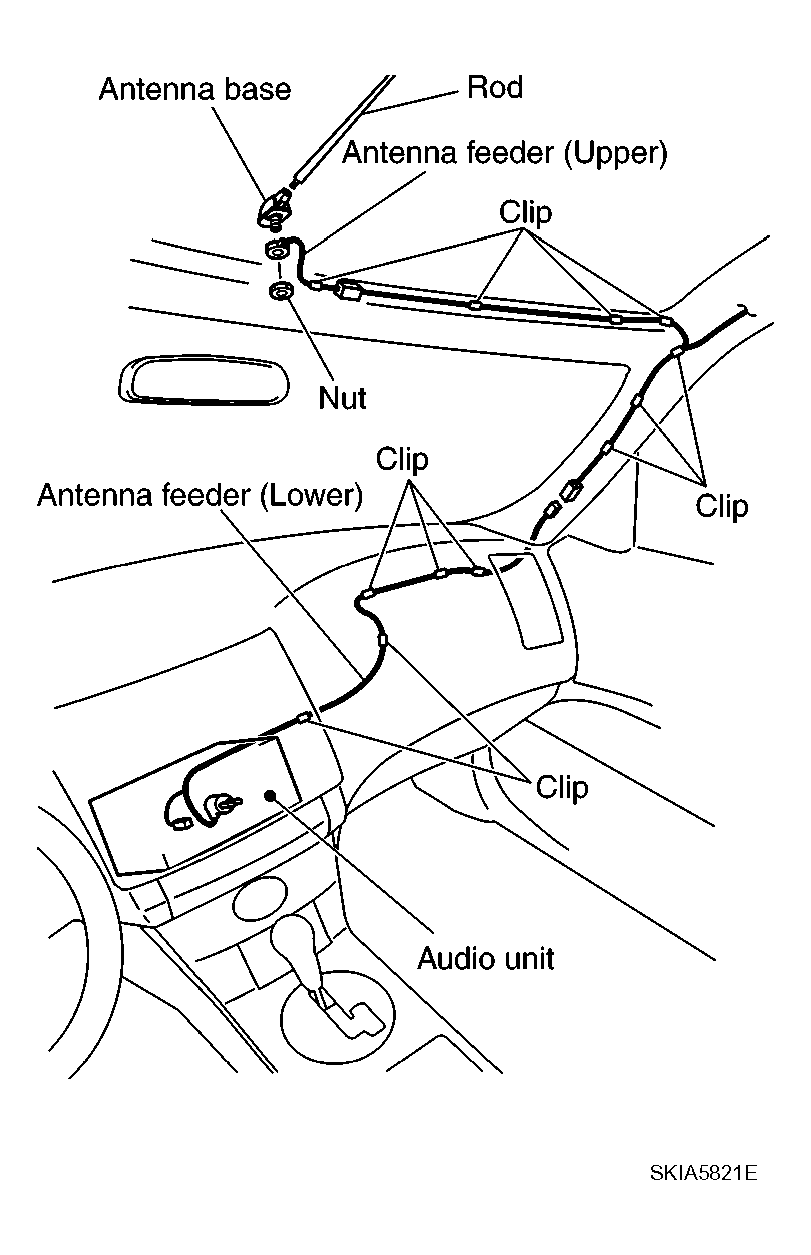

- Remove nut and remove rod and antenna base.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Remove instrument panel. Refer to
"INSTRUMENT PANEL ASSEMBLY
".
- Disassembly antenna feeder (upper) and antenna feeder (lower).
- Disengaged the clips (7) to separate antenna feeder (upper) from vehicle.
- Pull off antenna feeder (lower) from audio unit.
- Disengaged the clips (5) to separate antenna feeder (lower) from vehicle.
Courtesy of NISSAN MOTOR CO., U.S.A.
