Instrument Passenger Lower Panel: Disassembly

  1. Detach the damper from glove box assembly right side.
  2. Remove glove box pins and remove glove box assembly.

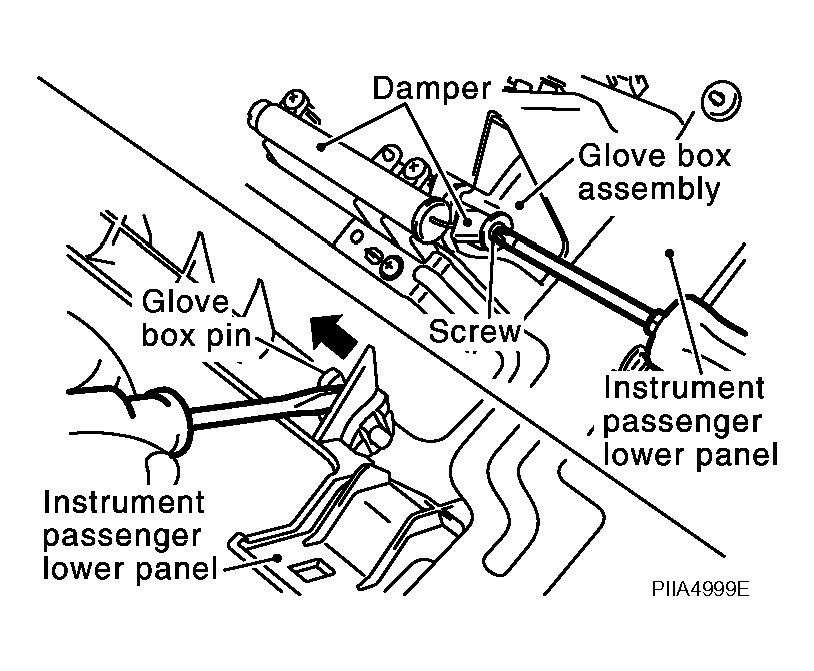

    Fig 1: Removing Glove Box Pins
    G04077588Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws with power tool and remove glove box striker.

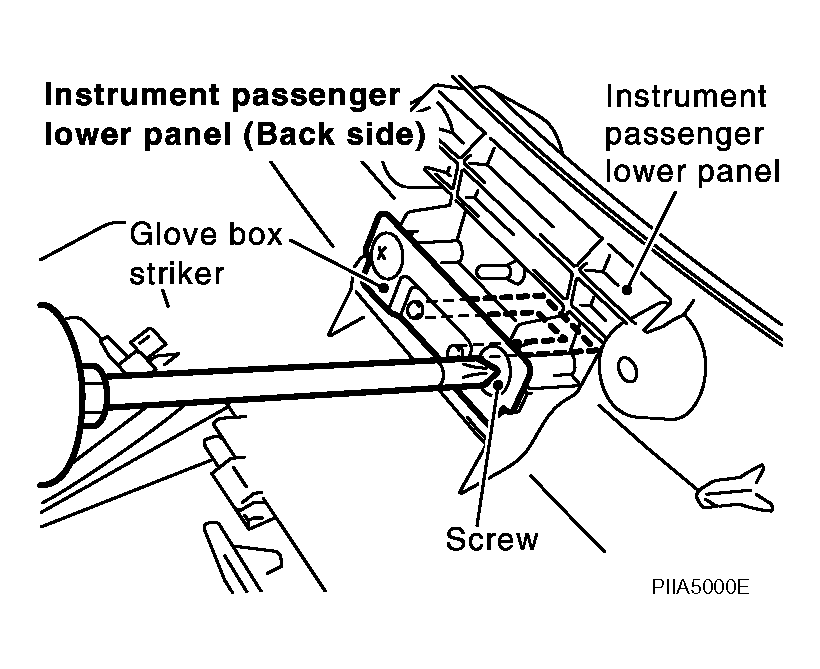

    Fig 2: Removing Screws
    G04077589Courtesy of NISSAN MOTOR CO., U.S.A.
