Removal of Center Ventilator Grille

  1. Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove mounting screw and clips, and then remove center ventilator grille.

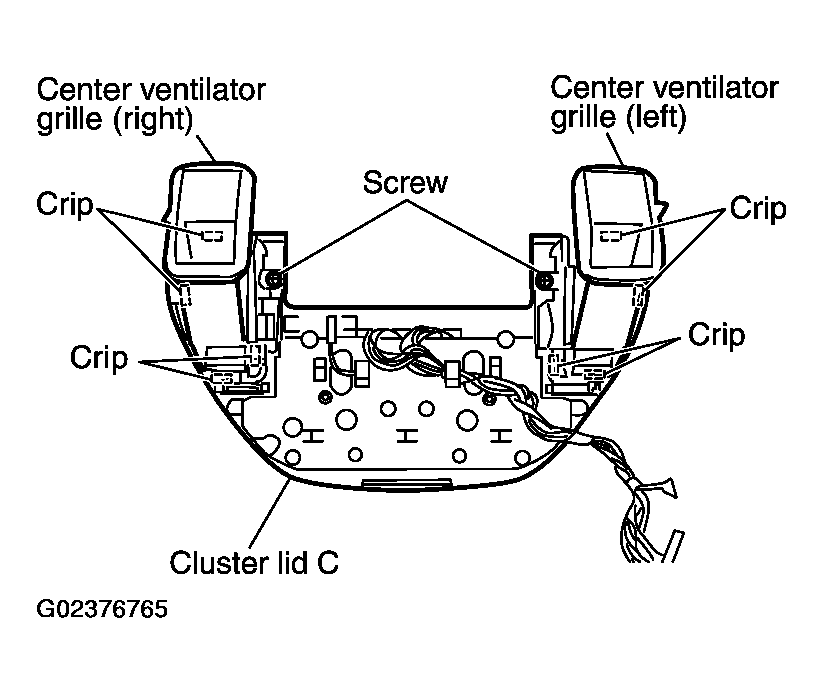

    Fig 1: Removing Center Ventilator Grille
    G02376765Courtesy of NISSAN MOTOR CO., U.S.A.
