Front Wiper And Washer System (With Rain Sensor)
>>
Wiring Diagram - WIPER -
Wiring Diagram - WIPER -

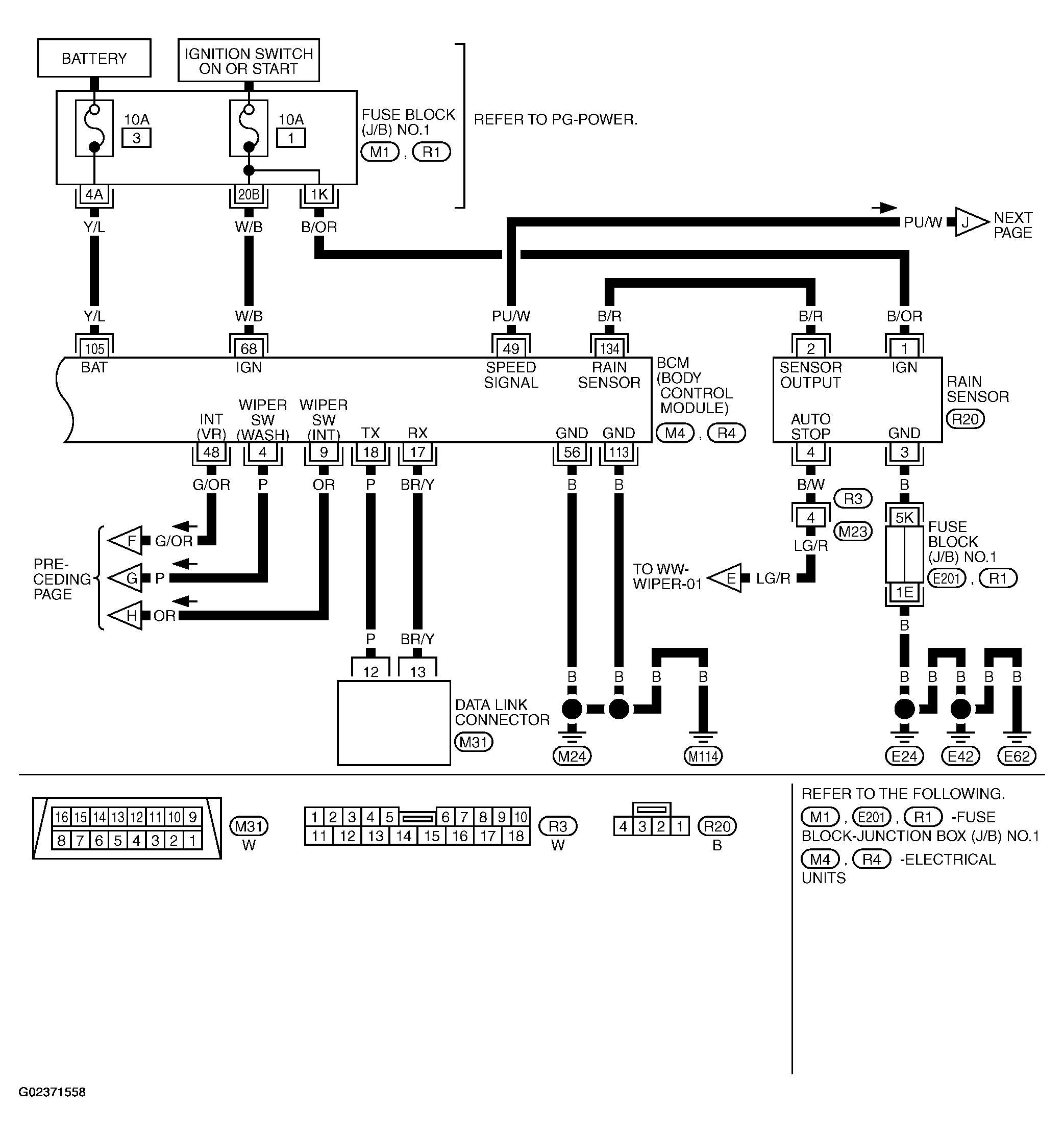

Fig 1: Wiring Diagram WW-WIPER-01 (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

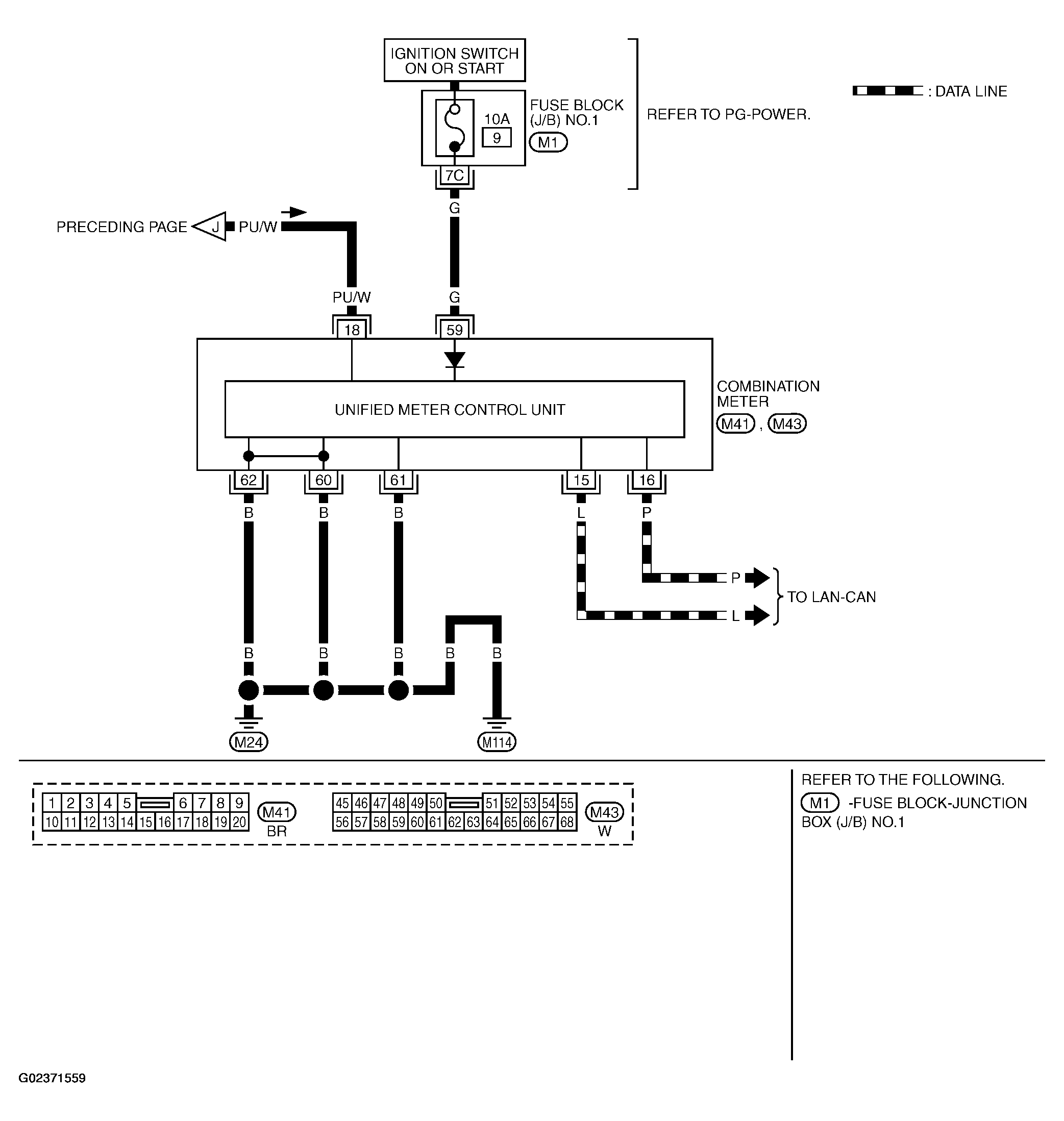

Fig 2: Wiring Diagram WW-WIPER-02 (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Wiring Diagram WW-WIPER-03 (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

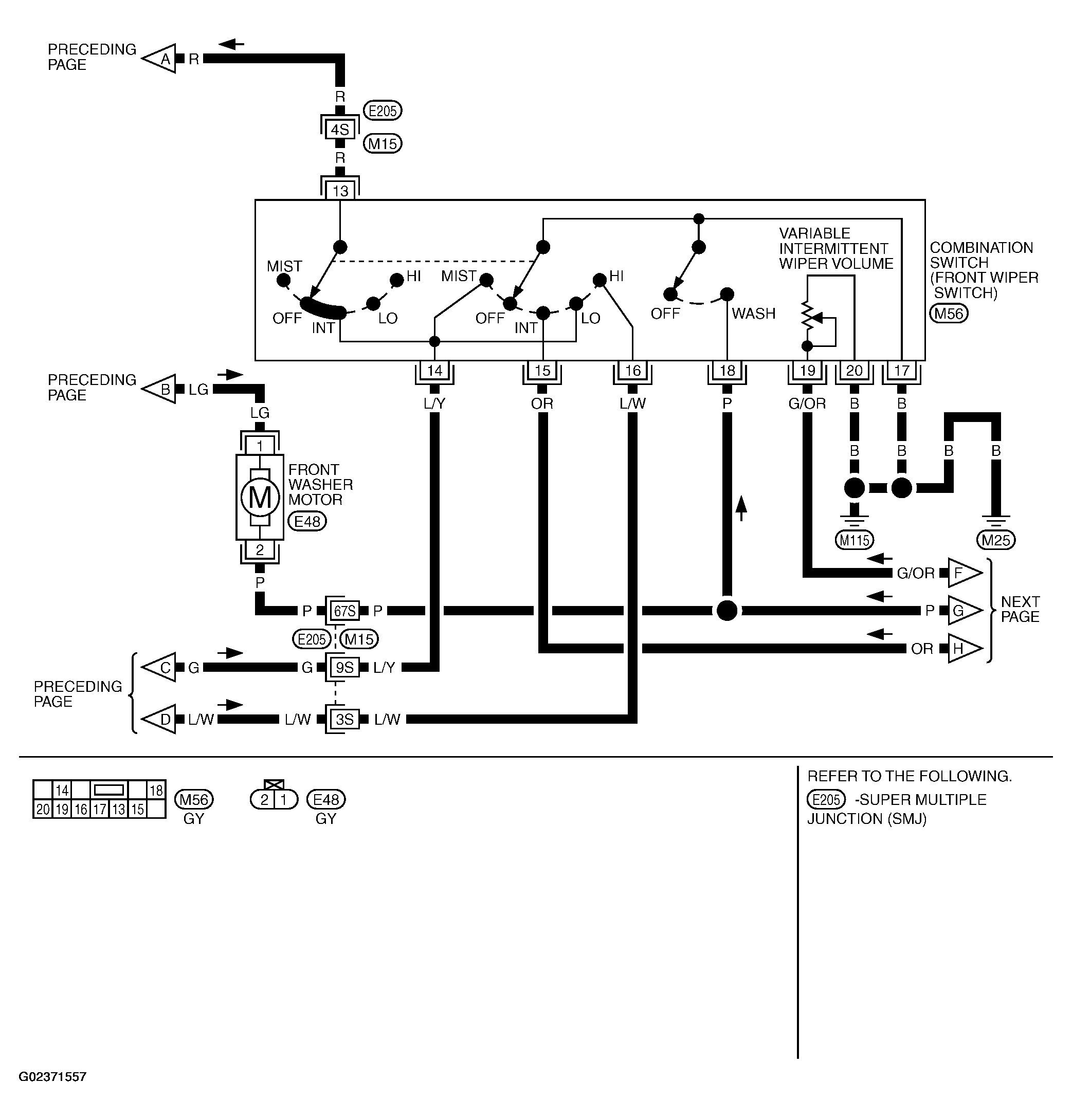

Fig 4: Wiring Diagram WW-WIPER-04 (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
