Wiring Diagram - CIGAR -

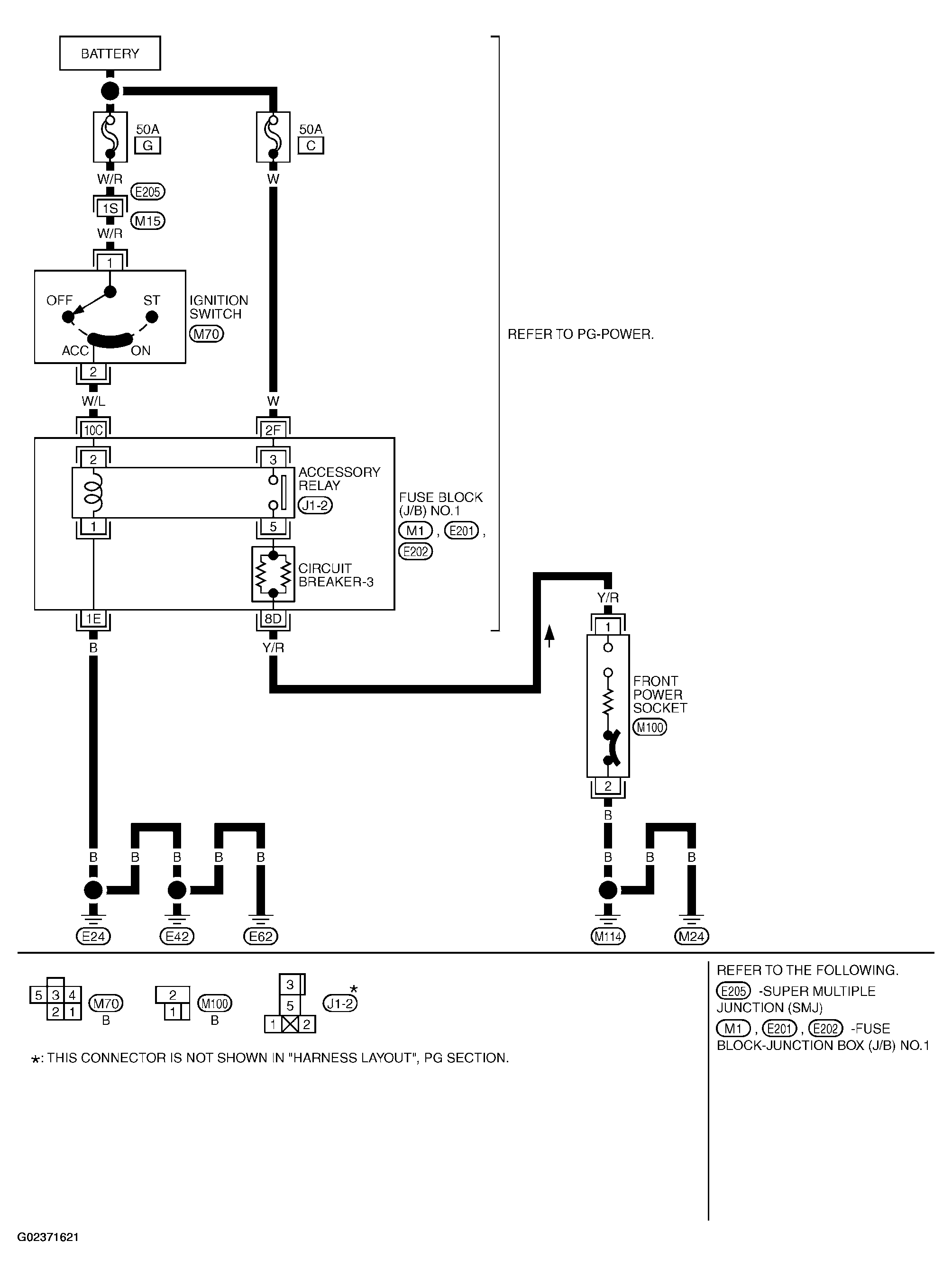

Fig 1: Wiring Diagram WW-P/SCKT-01

G02371621

Courtesy of NISSAN MOTOR CO., U.S.A.
