Wiring Diagram - HORN -

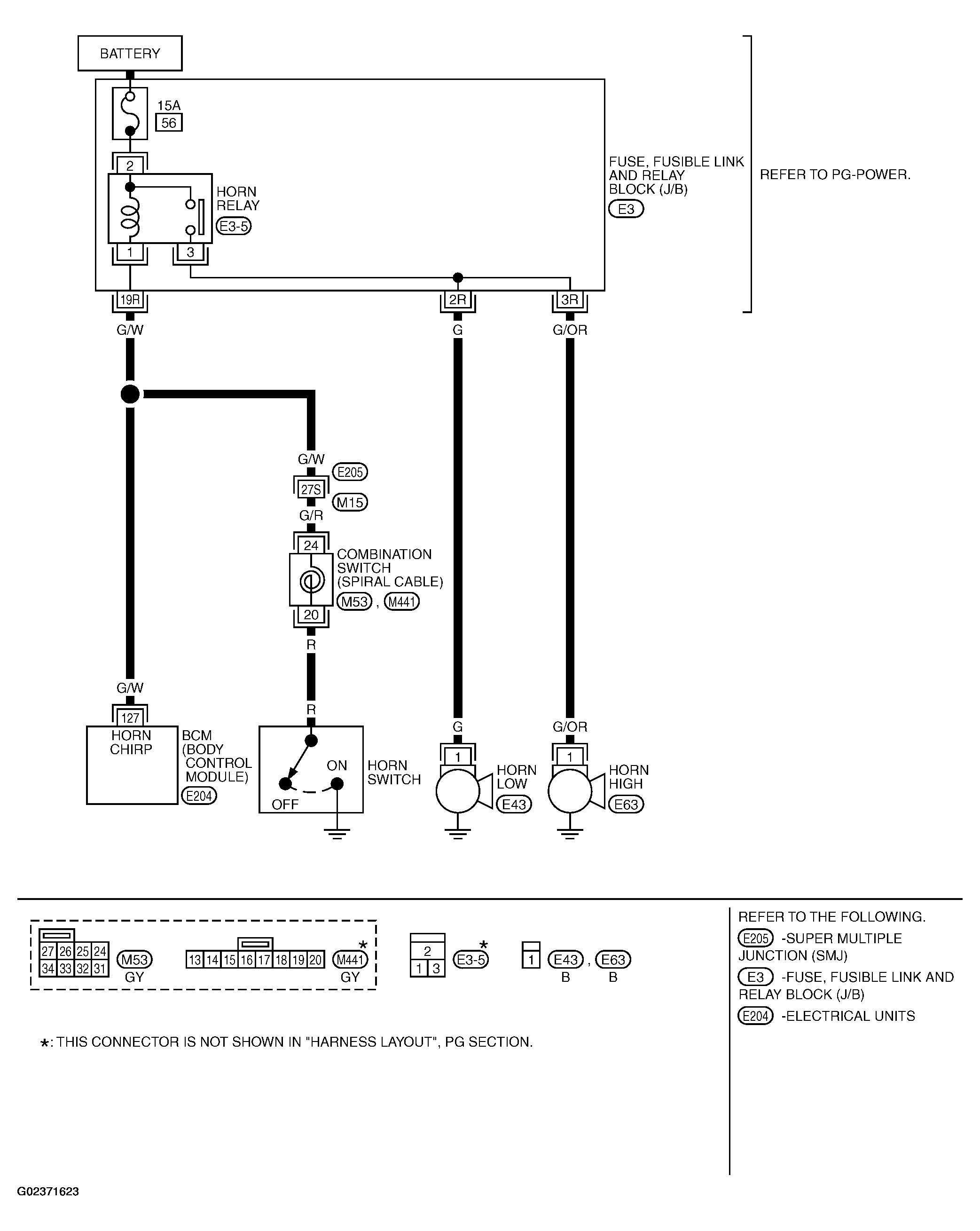

Fig 1: Wiring Diagram WW-HORN-01

G02371623

Courtesy of NISSAN MOTOR CO., U.S.A.
