Terminals & Reference Values For IPDM E/R

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

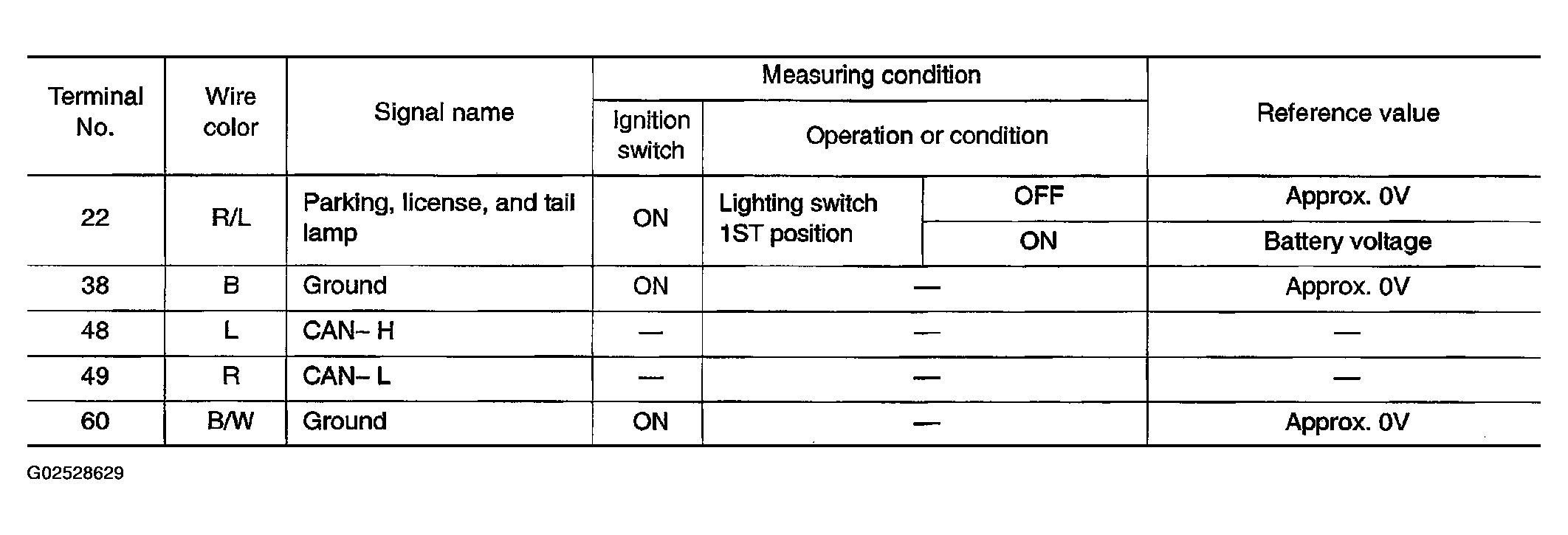

Fig 1: Reference Values For IPDM E/R & Terminals Table
G02528629Courtesy of NISSAN MOTOR CO., U.S.A.
