How To Follow Test Groups In Trouble Diagnoses
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Work and diagnostic procedure

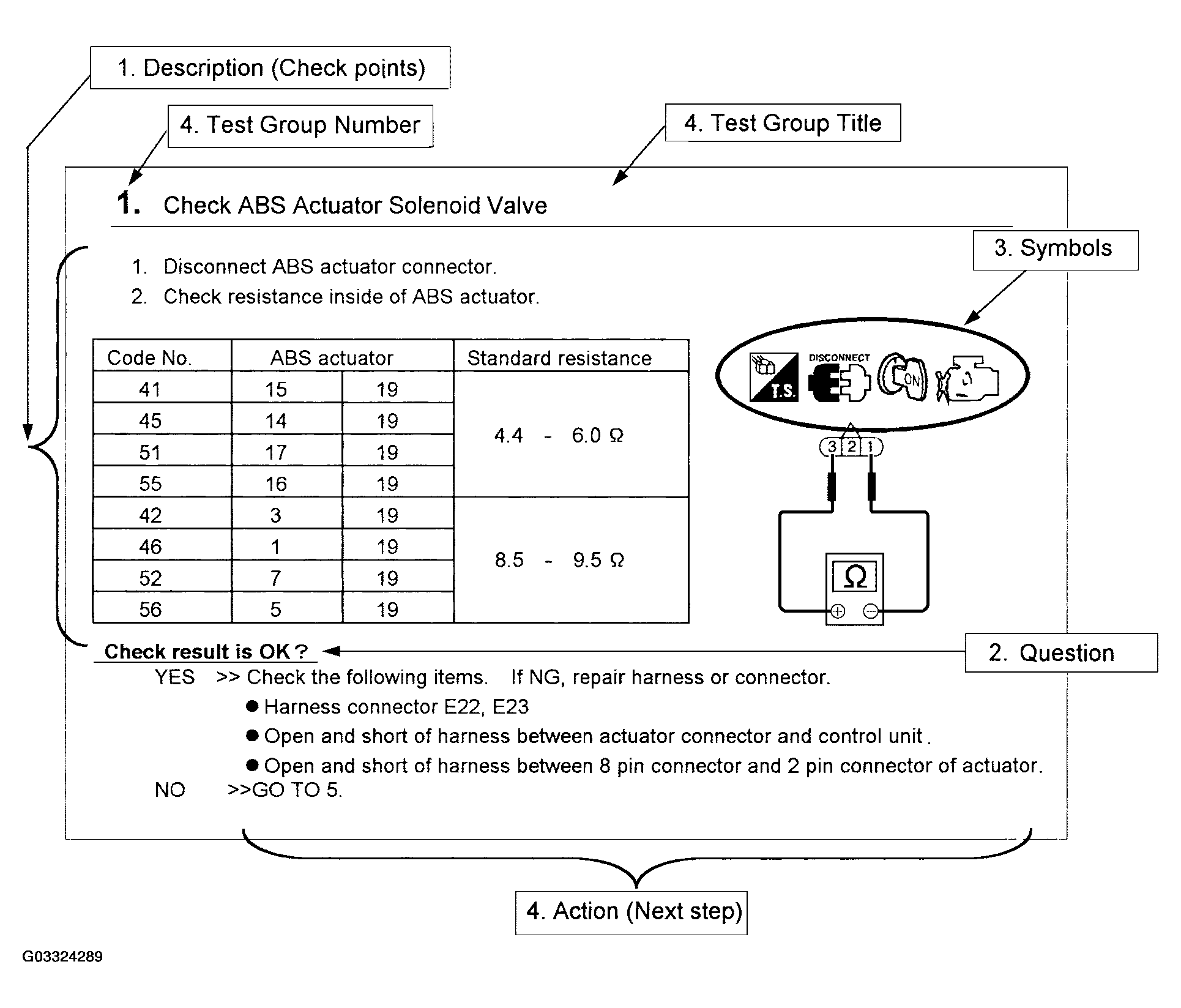

Start to diagnose a problem using procedures indicated in enclosed test groups.
- Questions and required results
Questions and required results are indicated in bold type in test group.
The meaning of are as follows:
- Battery voltage --> 11 - 14 V or approximately 12 V
- Voltage: Approximately 0 V --> Less than 1 V
- Symbol used in illustration
Symbols included in illustrations refer to measurements or procedures. Before diagnosing a problem, familiarize yourself with each symbol. Refer to CONNECTOR SYMBOLS and KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES below.
- Action items
Next action for each test group is indicated based on result of each question. Test group number is shown in the left upper portion of each test group.
