Removal and Installation: Removal

Remove selector lever knob. Refer to "CONTROL DEVICE REMOVAL AND INSTALLATION ".

Remove shift knob. Refer to "SHIFT CONTROL ".

1. Put selector lever in drive position.
2. Remove clips from rear of console finisher, then remove clips at front. Pull console finisher upward to disengage from console.
   CAUTION: Guide pin inserted into A/T device guide can be easily broken. Be careful when removing it.
3. Disconnect harness connectors, and remove console finisher.
4. After removing, remove each parts from console finisher.

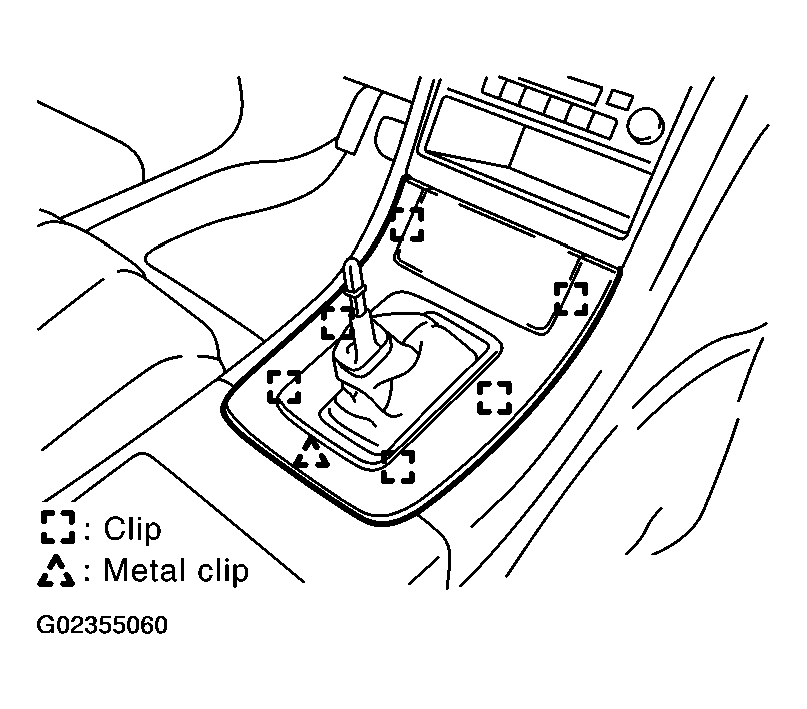

   Fig 1: Locating Console Finisher Clips

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Insert a thin flat-bladed screwdriver wrapped with tape from behind console boot, and remove metal clip on back. Then pull up and back to disengage from front metal clip.
2. Disconnect hazard switch harness connector, and remove console boot.

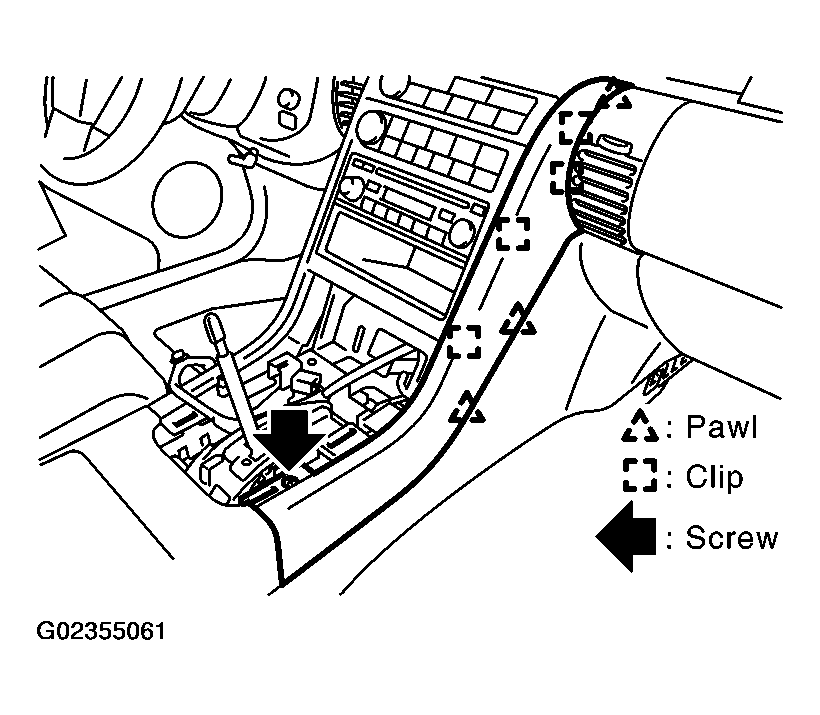

1. Remove screws.
2. Disconnect pawls, and remove cluster lid C side finisher.
   Fig 2: Locating Cluster Lid C Side Finisher Clips & Pawl

   Courtesy of NISSAN MOTOR CO., U.S.A.

Pull to the backside, disconnect clips and pawls, and remove cluster lid finisher upper.

Fig 3: Locating Cluster Lid Finisher Upper Clips

Courtesy of NISSAN MOTOR CO., U.S.A.

Disconnect pawls and clips, and remove cluster lid finisher lower.

Fig 4: Locating Cluster Lid Finisher Lower Clips

Courtesy of NISSAN MOTOR CO., U.S.A.

Disconnect clips, and remove instrument finisher B.

Fig 5: Locating Instrument Finisher Clips

Courtesy of NISSAN MOTOR CO., U.S.A.

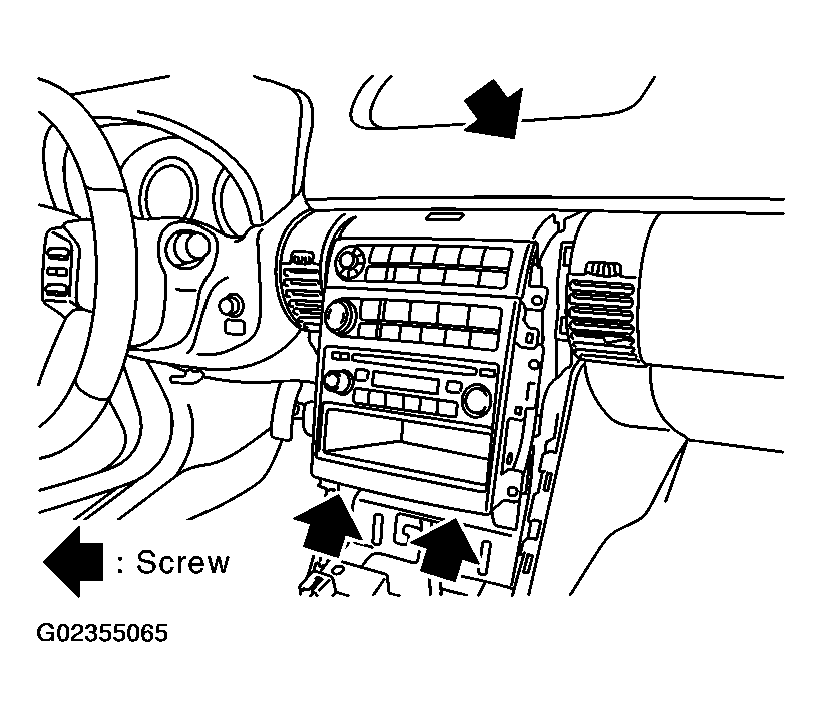

1. Remove screws.
2. Disconnect harness connector of display unit and audio unit, and remove it.
   Fig 6: Locating Cluster Lid Screws

   Courtesy of NISSAN MOTOR CO., U.S.A.

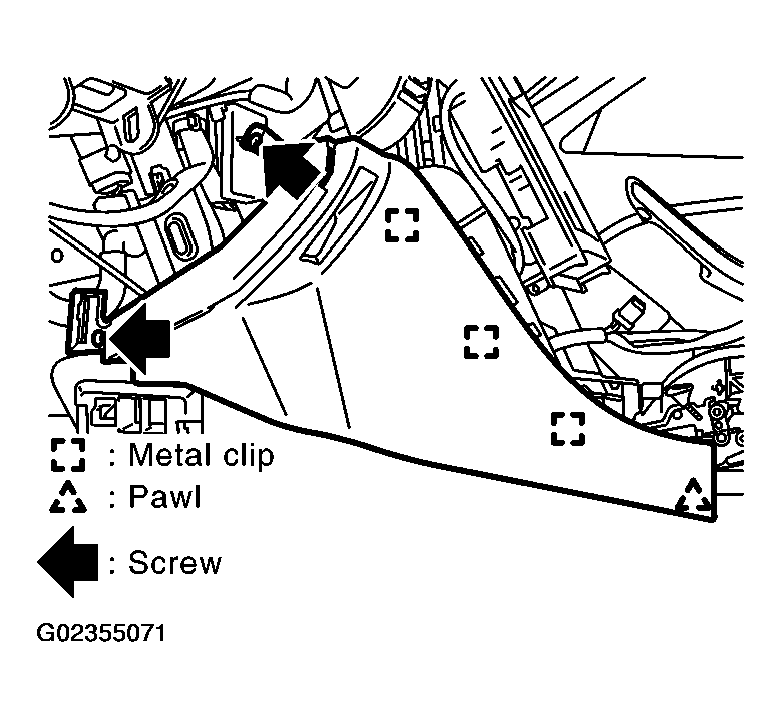

1. Remove screws.
2. Pull back to your side, disconnect metal clips and remove instrument lower driver panel.
3. Disconnect in-vehicle sensor and each electrical parts connectors.
4. Remove grommet, and remove hood lock cable.

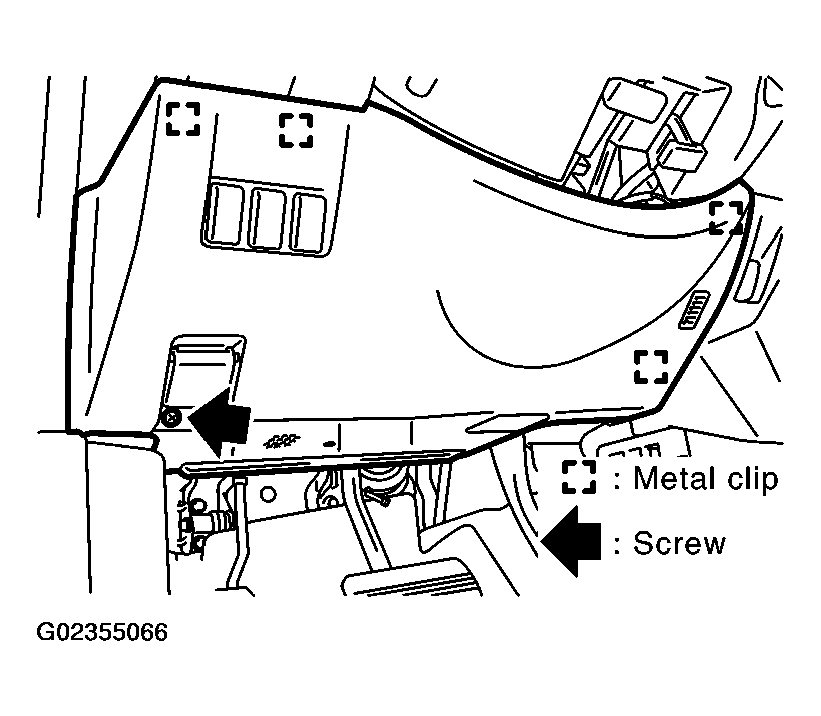

   Fig 7: Locating Instrument Lower Driver Panel Screws & Clips

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove screws and pawls and remove steering column cover front lower.
2. Disconnect pawls, and remove upper and lower side of steering column covers.

Remove lighting and turn signal switch. Refer to "LIGHTING AND TURN SIGNAL SWITCH ".

Remove wiper and washer switch. Refer to "REMOVAL AND INSTALLATION OF FRONT WIPER AND W "

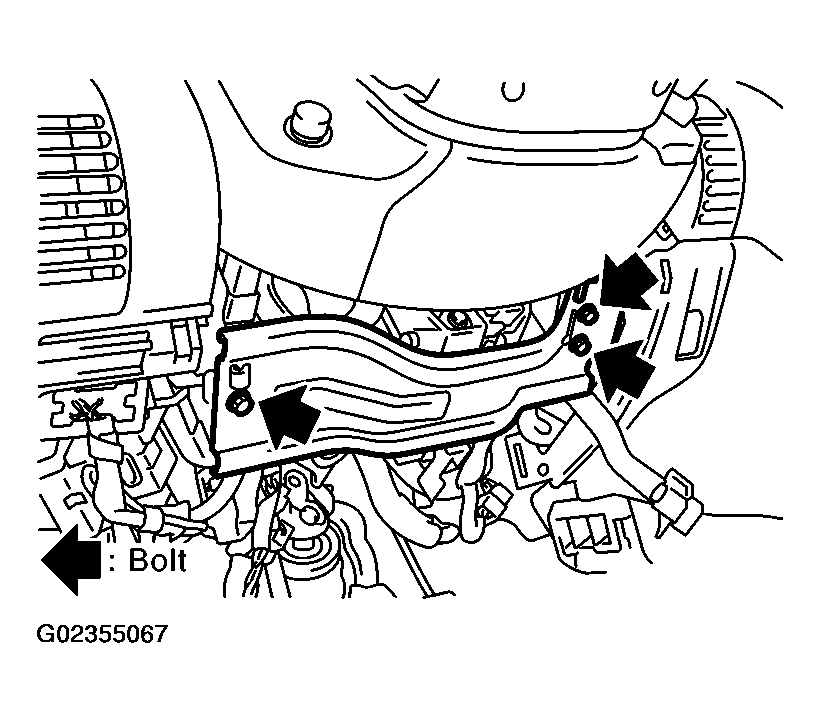

Remove bolts and then remove knee protector.

Fig 8: Locating Knee Protector Lower Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

Pull back to your side, and remove steering lock escutcheon.

After removing bolts, disconnect harness connectors of combination meter and mirror control switch, and remove cluster lid A.

Fig 9: Locating Cluster Lid Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove front kicking plate (RH/LH). Refer to "BODY SIDE TRIM ".

Remove dash side finisher (RH/LH). Refer to "BODY SIDE TRIM ".

Pull downward, disconnect metal clips, and remove instrument lower cover.

Fig 10: Locating Instrument Lower Cover Clips & Pawl

Courtesy of NISSAN MOTOR CO., U.S.A.

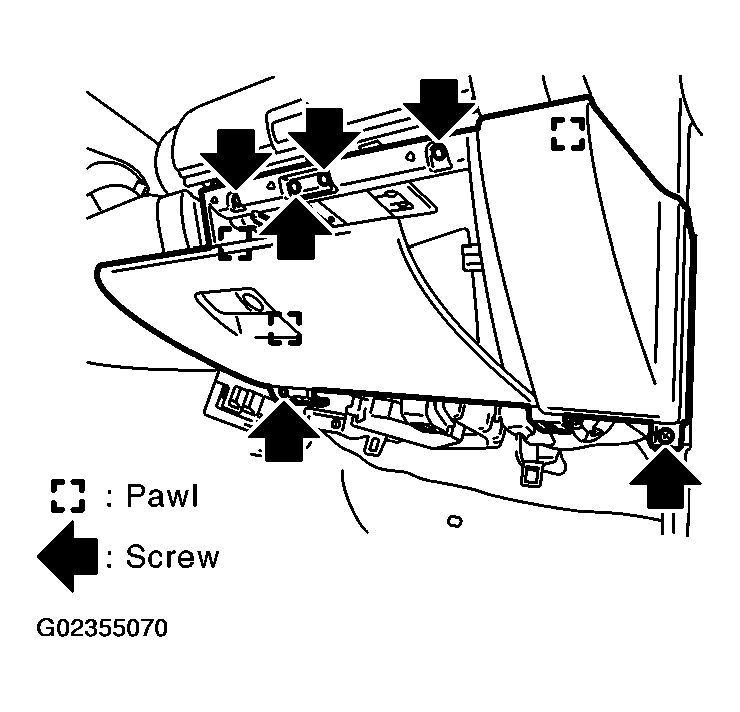

1. Remove screws with power tool.
2. Pull back to your side, and disconnect clips, and remove glove box assembly.
   Fig 11: Removing Glove Box Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove screws.
2. Pull to the side, disconnect metal clips and harness connector, and remove instrument side panel (RH/LH).

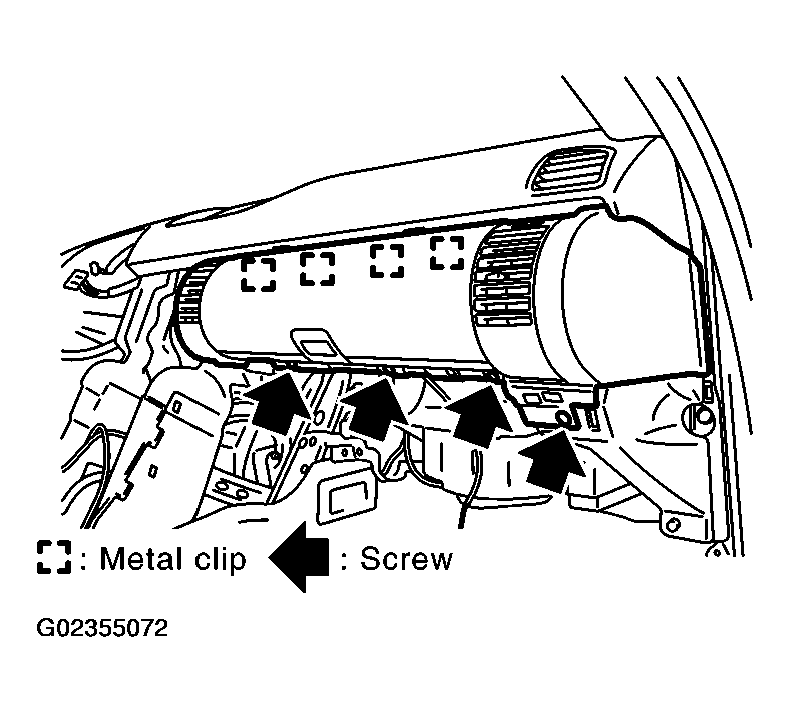

   Fig 12: Removing Instrument Side Panel (RH/LH)

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove screws.
2. Hold left side of center box assembly, pull to outside of vehicle and disconnect metal clips. Remove center box assembly.
   Fig 13: Removing Center Box Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.

Remove screws, and disconnect harness connector, and remove NAVI control unit. Refer to "REMOVAL AND INSTALLATION OF NAVI CONTROL UNIT ".

Remove bolts and nuts, and remove passenger air bag module. Refer to FRONT PASSENGER AIR BAG MODULE .

Remove screws and remove center console.

Remove screws, and disconnect harness connector, and remove audio display and amplifier assembly. Refer to "REMOVAL AND INSTALLATION OF DISPLAY AND A/C AUTO AMP. ".

Disconnect pawls with screwdriver wrapped in cloth and remove defroster grille. Refer to "DUCTS AND GRILLES ".

Pull back to your side, disconnect metal clips and remove side ventilator grille. Refer to "DUCTS AND GRILLES ".

Pull back to your side, disconnect metal clips and remove center ventilator grille. Refer to "DUCTS AND GRILLES ".

Pull to inside of vehicle, disconnect metal clips and remove front pillar garnish. Refer to "BODY SIDE TRIM ".

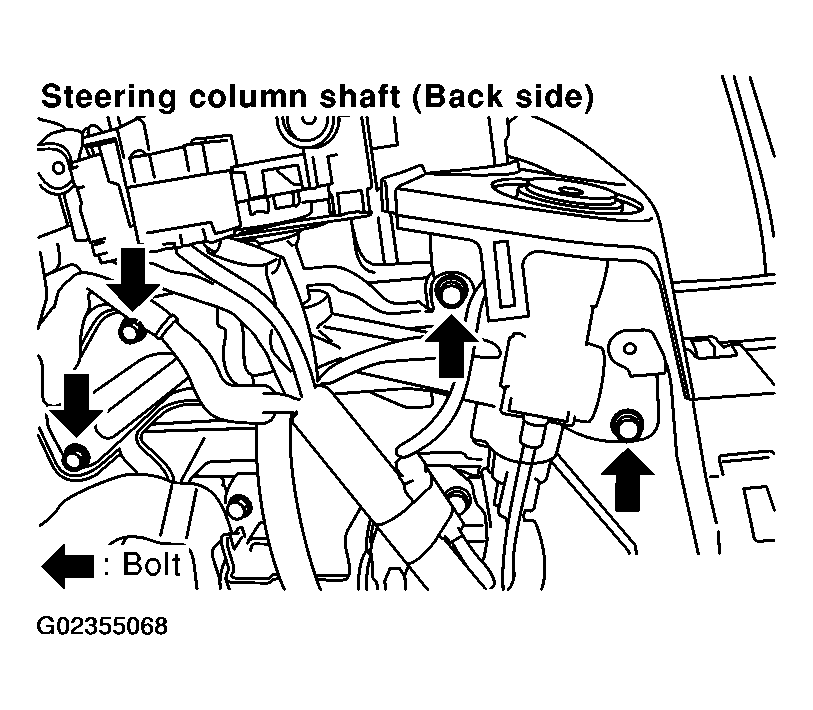

1. Lower steering column.
2. Remove bolts and screws, and remove instrument panel and pad from passenger door opening portion.
