Wiring Diagram - ILL -

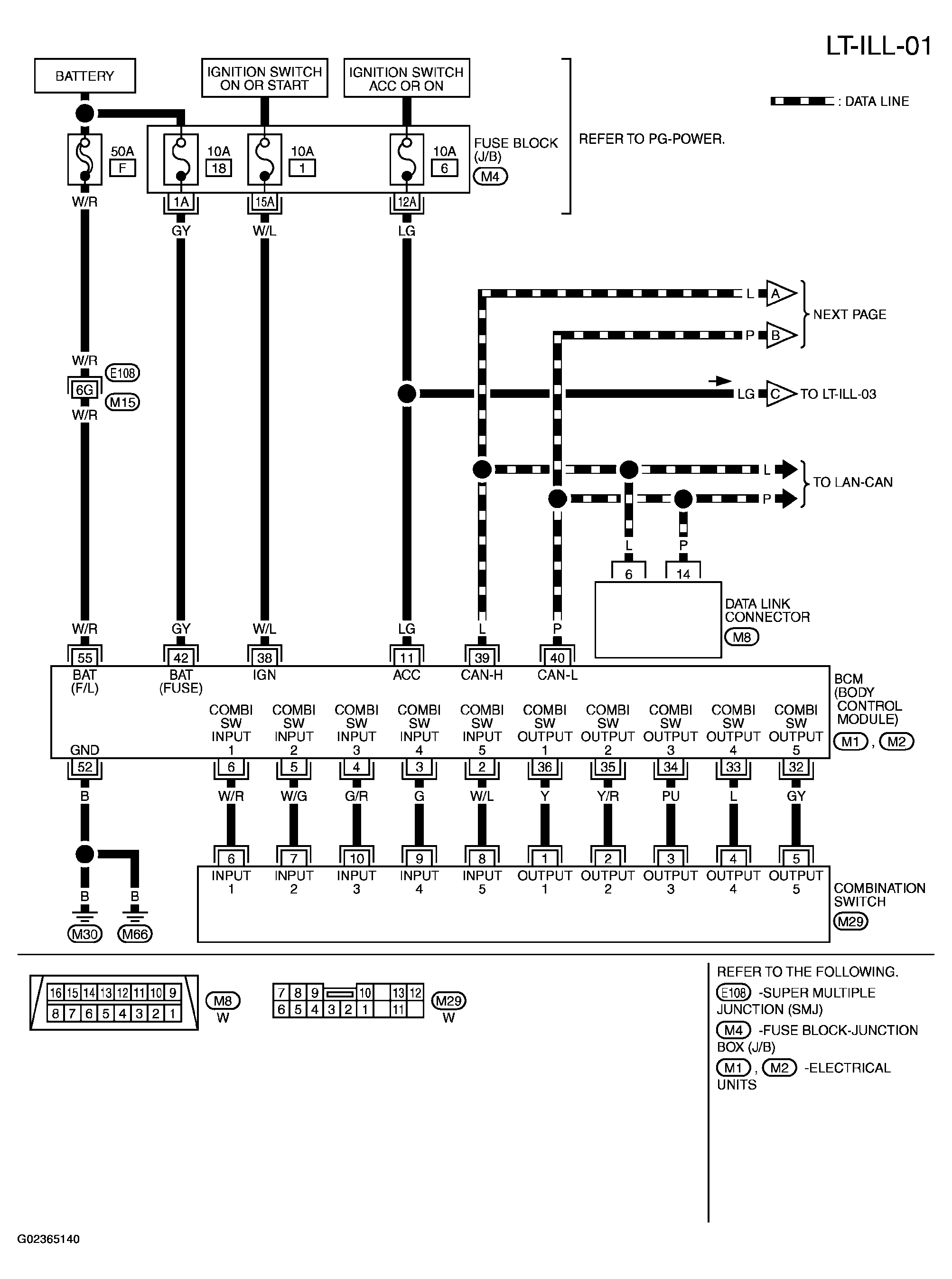

Fig 1: Wiring Diagram - LT-ILL-01

G02365140

Courtesy of NISSAN MOTOR CO., U.S.A.

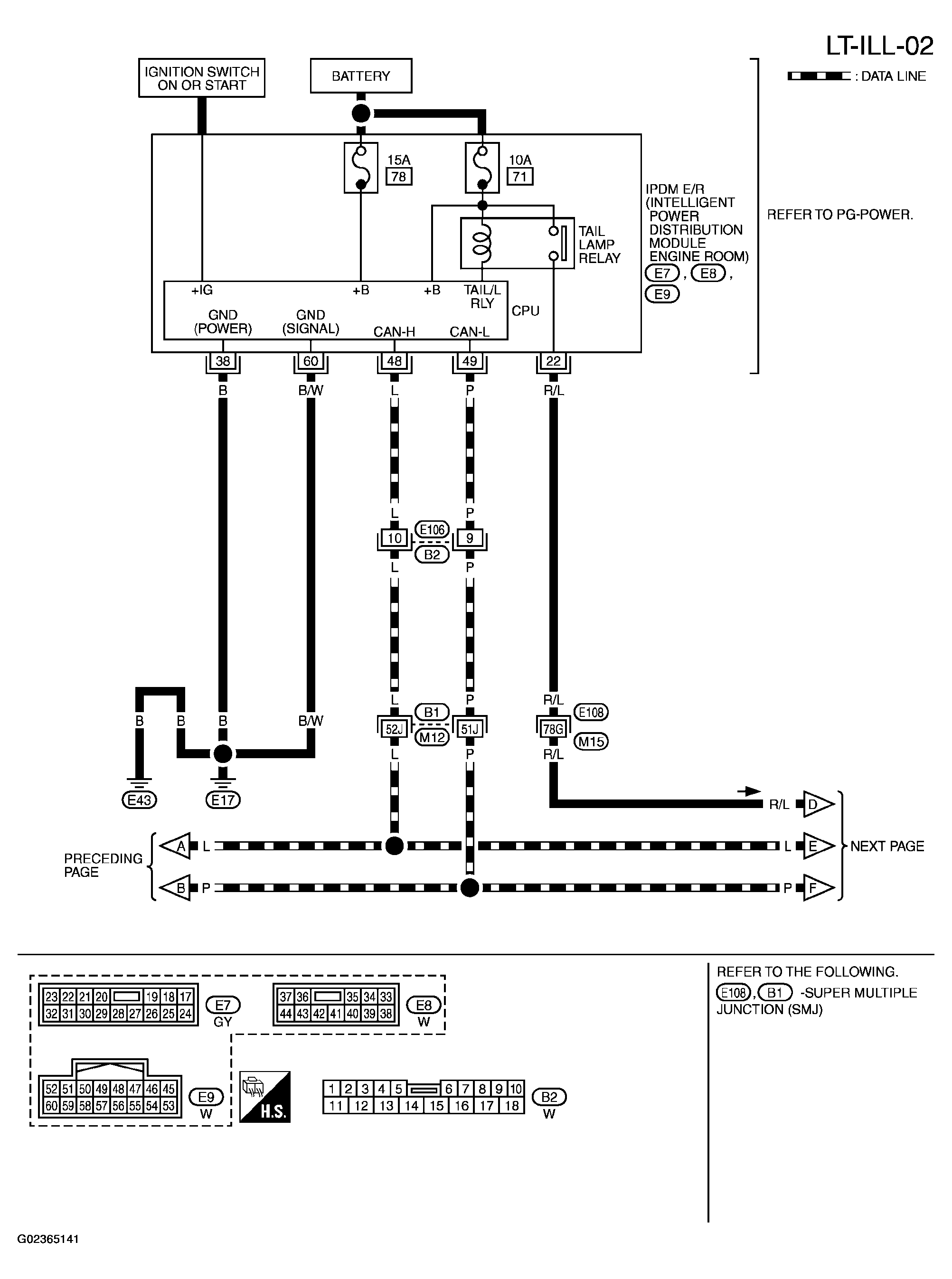

Fig 2: Wiring Diagram - LT-ILL-02

G02365141

Courtesy of NISSAN MOTOR CO., U.S.A.

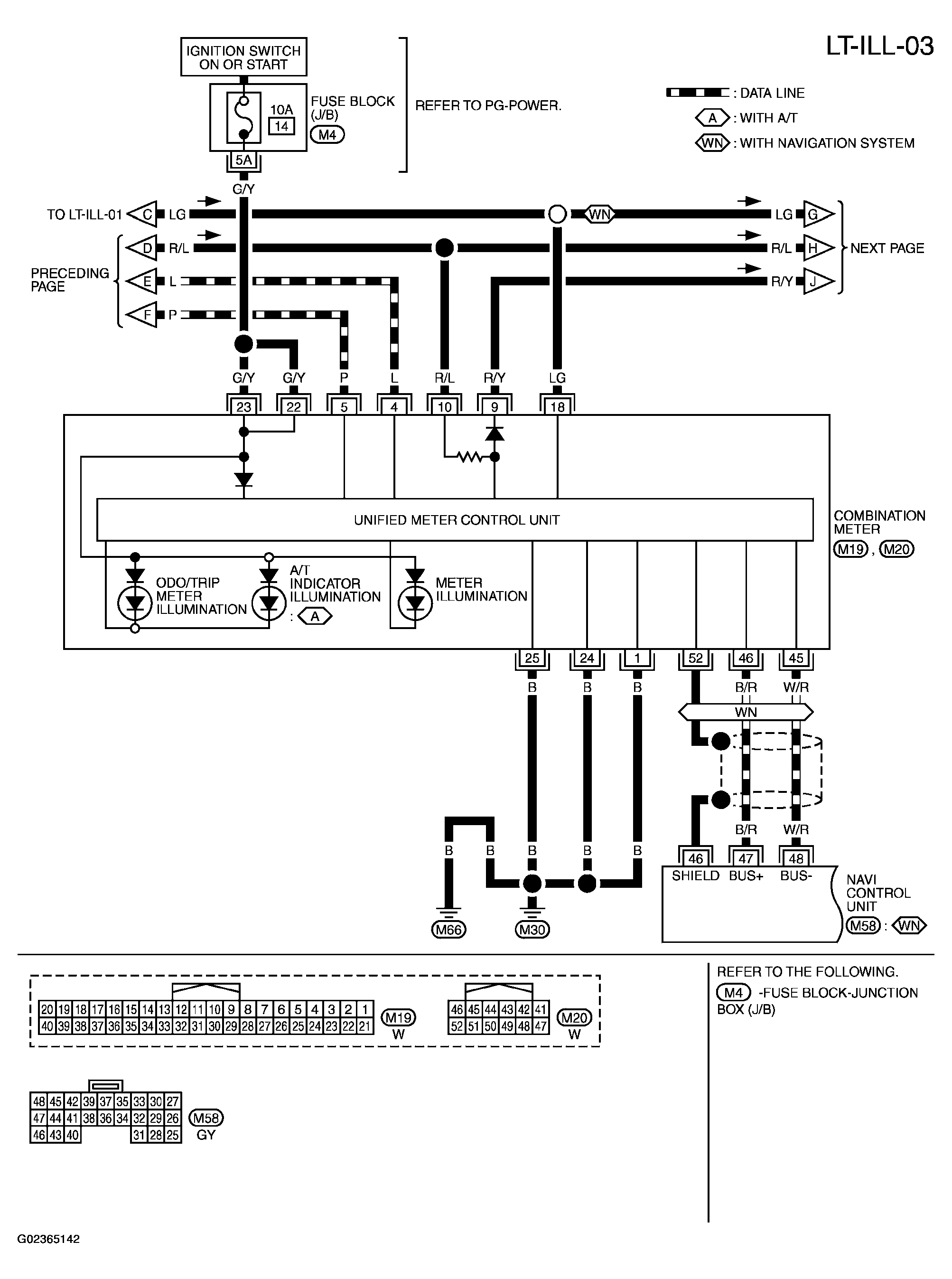

Fig 3: Wiring Diagram - LT-ILL-03

G02365142

Courtesy of NISSAN MOTOR CO., U.S.A.

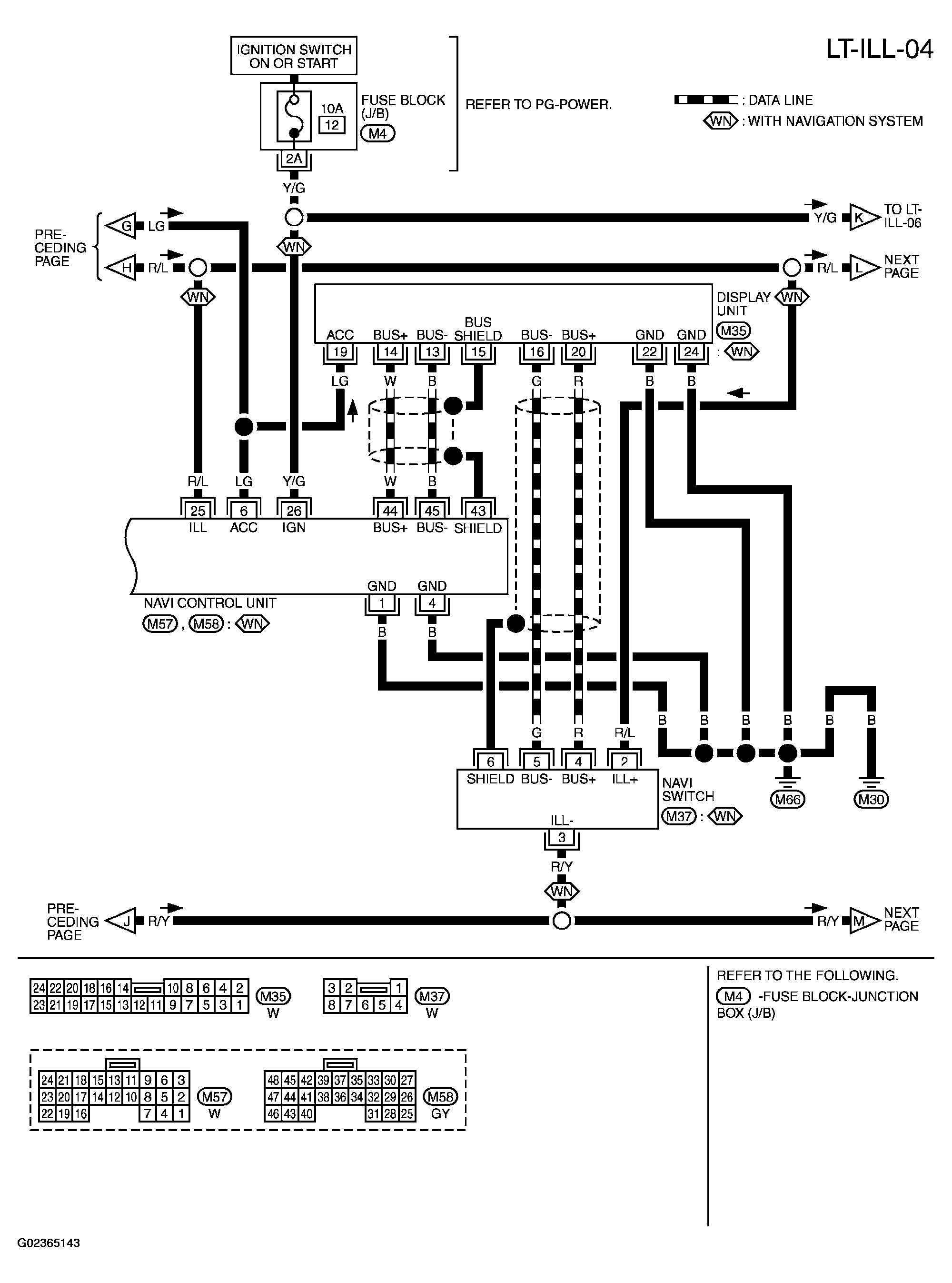

Fig 4: Wiring Diagram - LT-ILL-04

G02365143

Courtesy of NISSAN MOTOR CO., U.S.A.

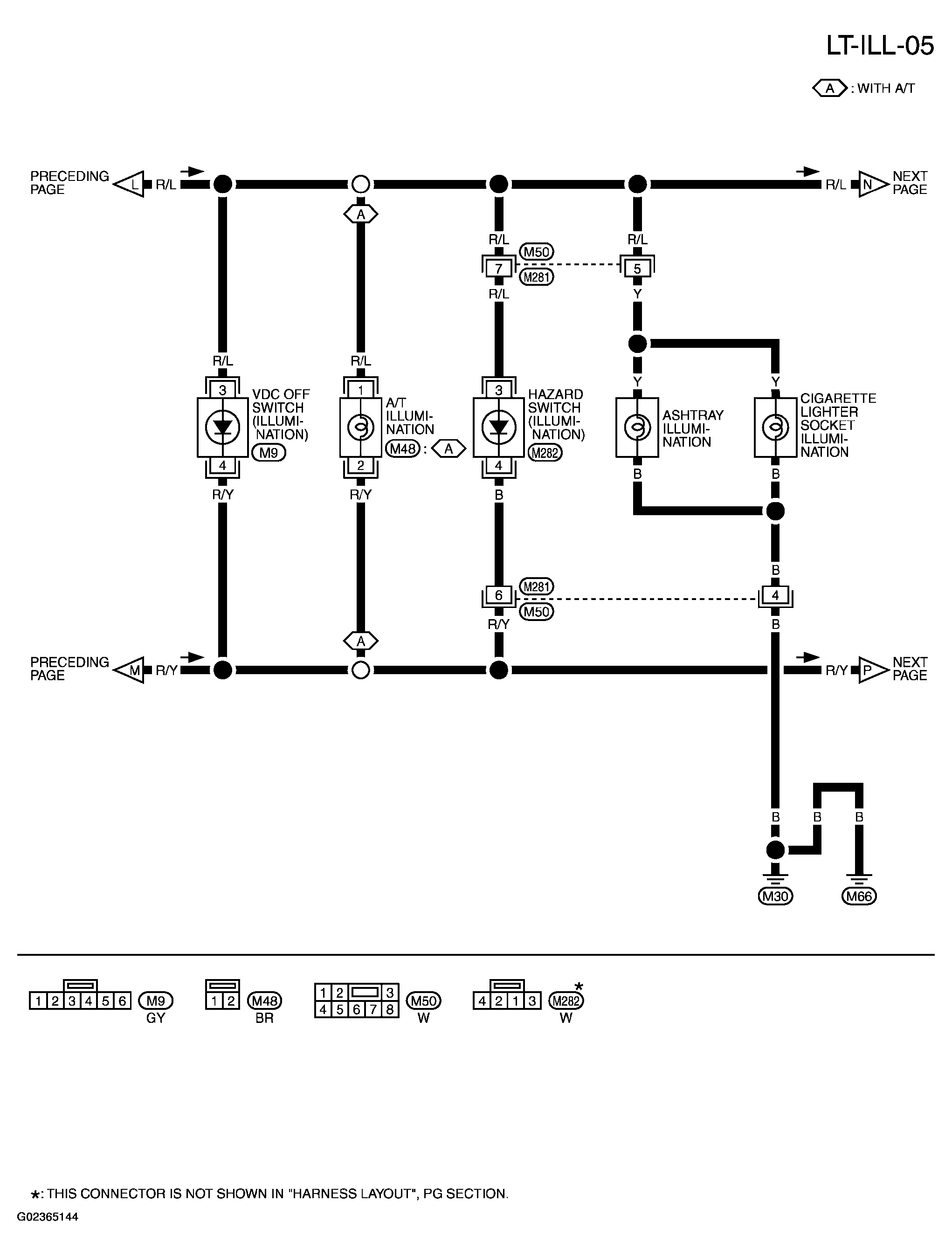

Fig 5: Wiring Diagram - LT-ILL-05

G02365144

Courtesy of NISSAN MOTOR CO., U.S.A.

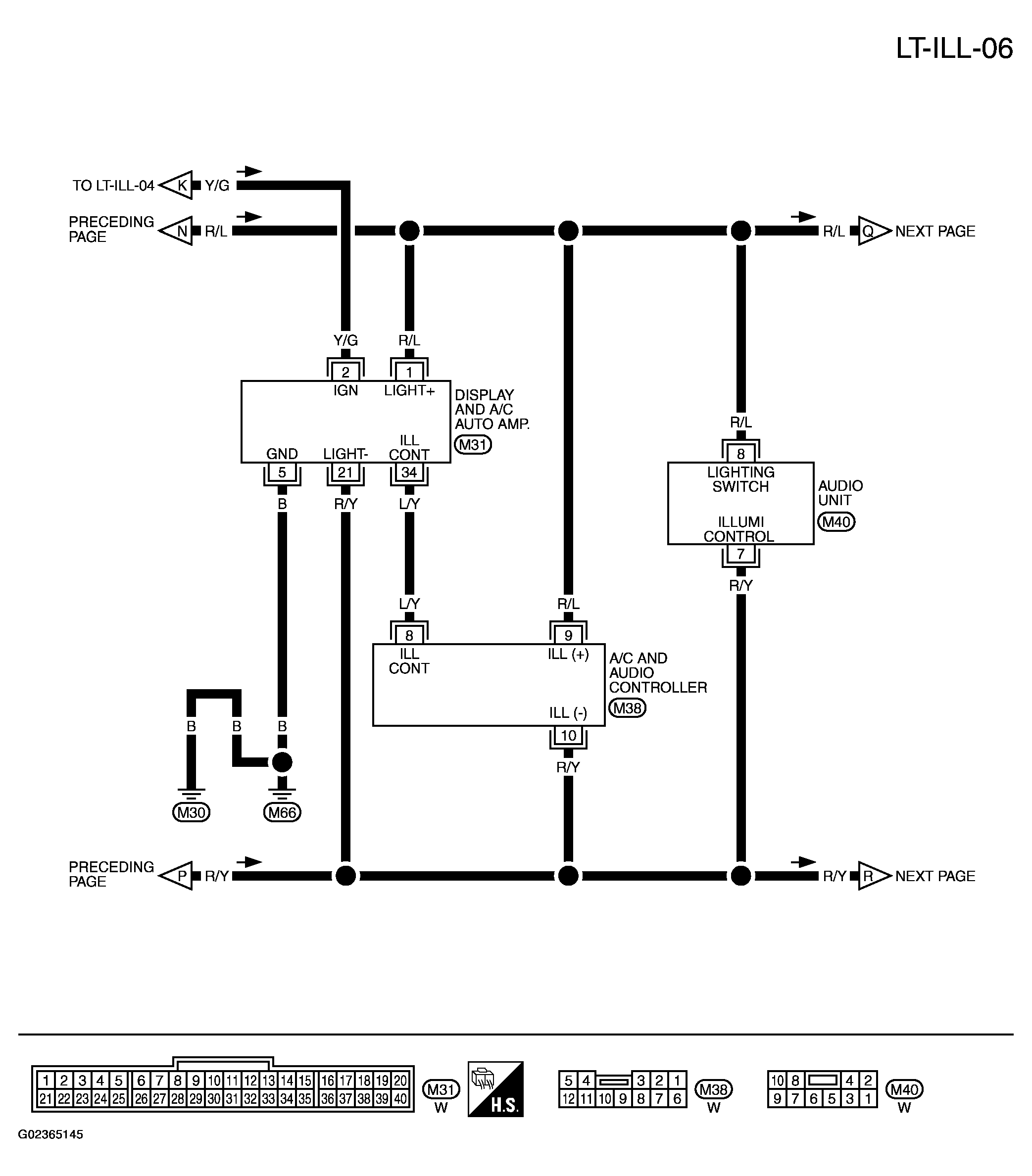

Fig 6: Wiring Diagram - LT-ILL-06

G02365145

Courtesy of NISSAN MOTOR CO., U.S.A.

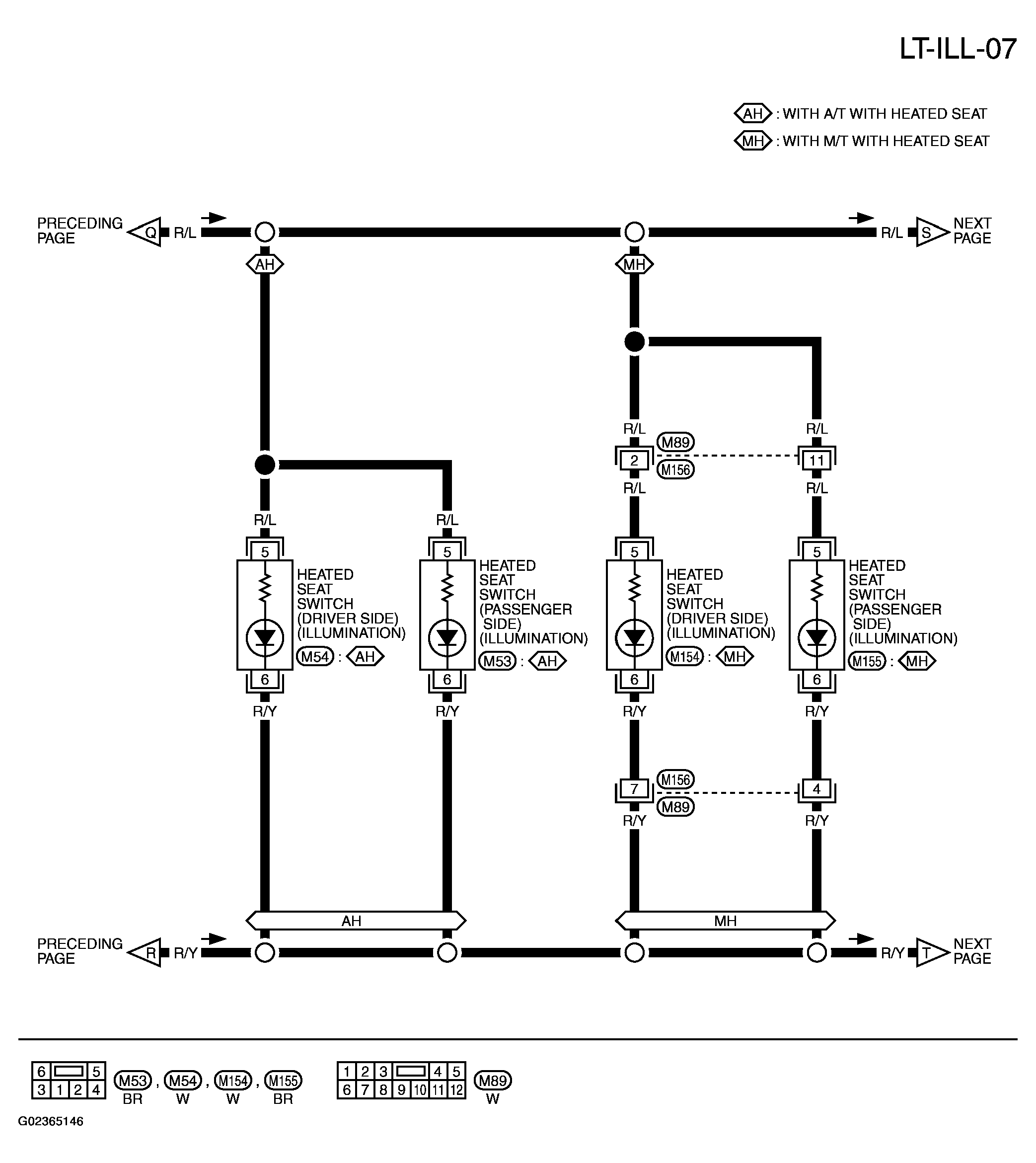

Fig 7: Wiring Diagram - LT-ILL-07

G02365146

Courtesy of NISSAN MOTOR CO., U.S.A.

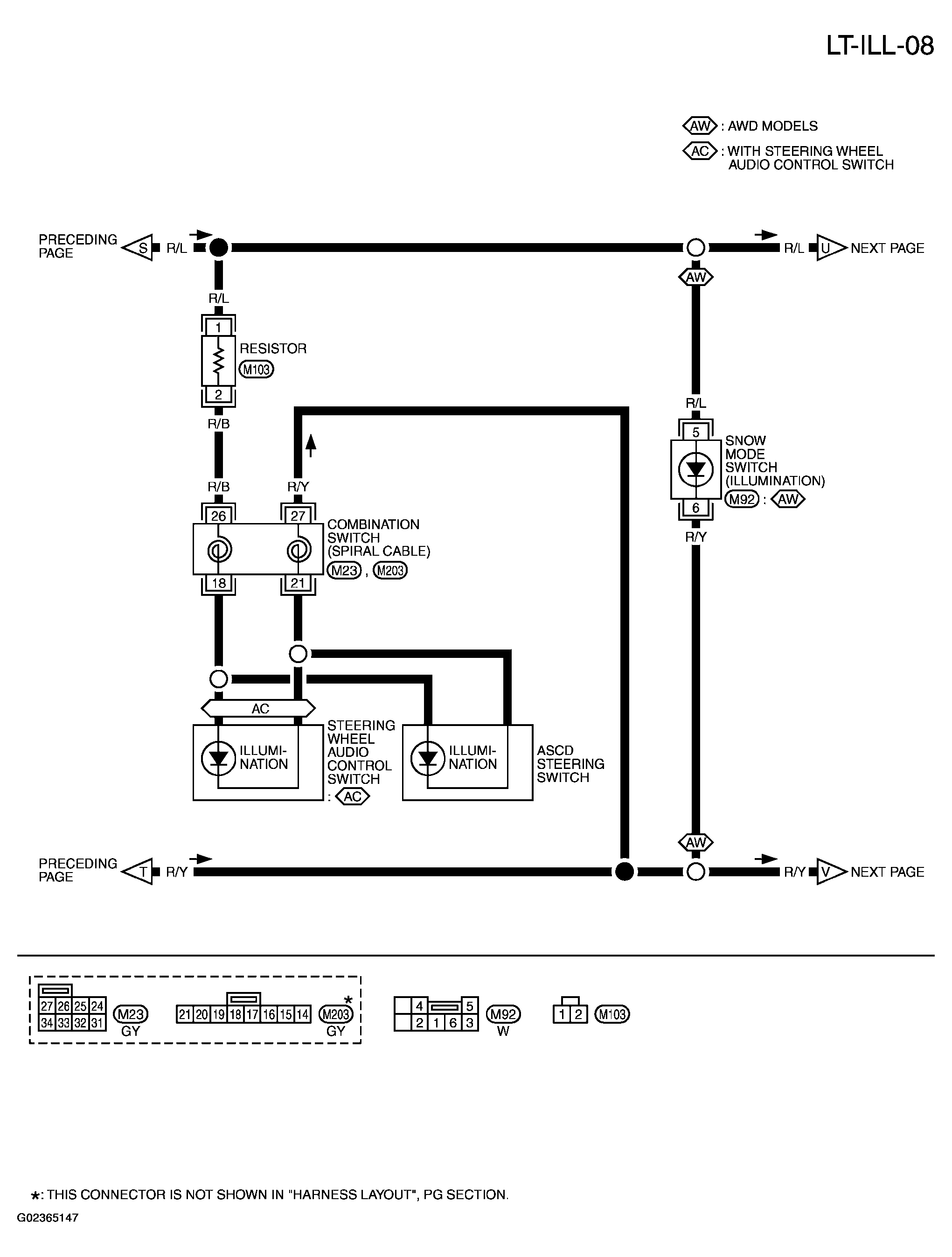

Fig 8: Wiring Diagram - LT-ILL-08

G02365147

Courtesy of NISSAN MOTOR CO., U.S.A.

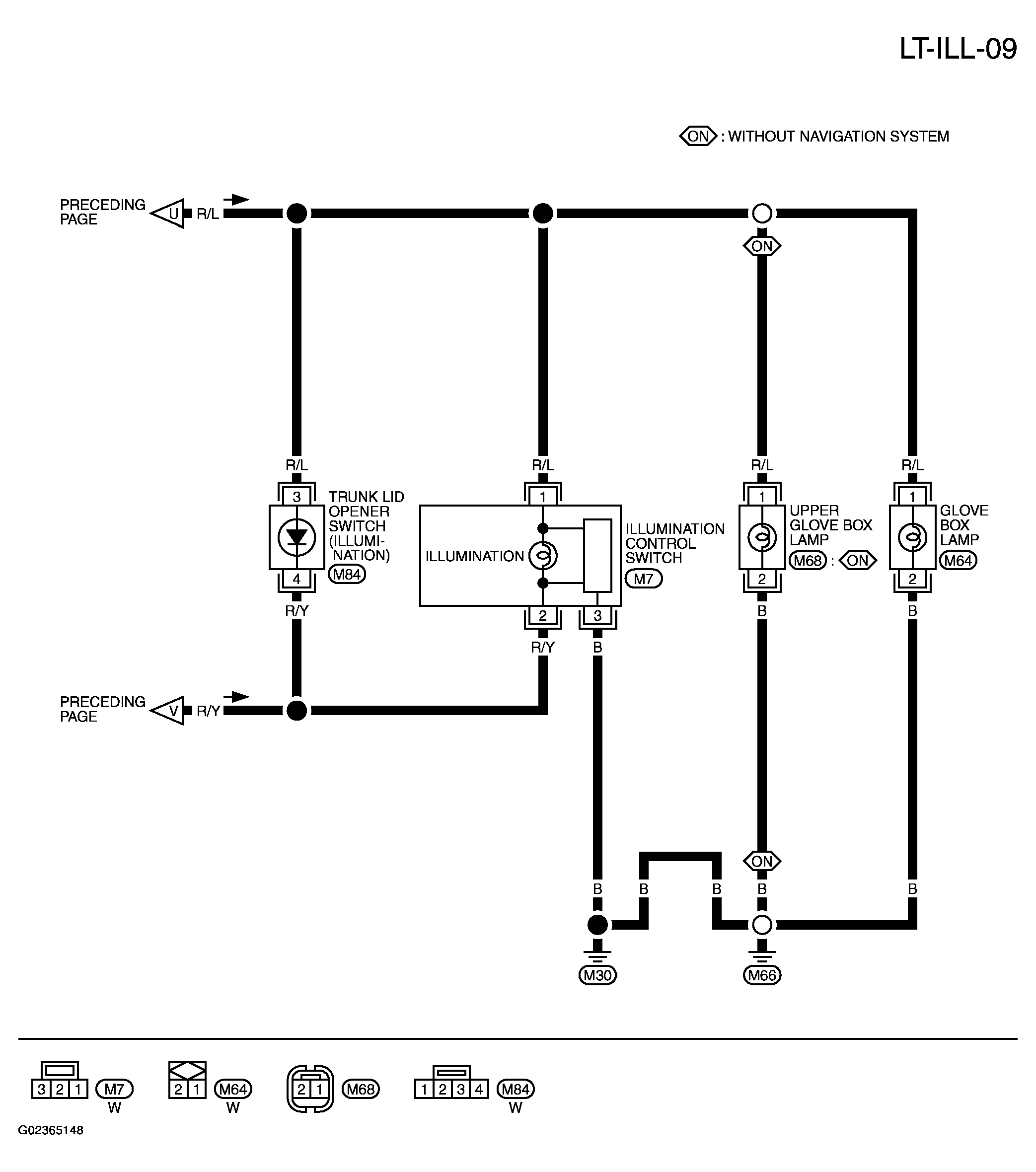

Fig 9: Wiring Diagram - LT-ILL-09

G02365148

Courtesy of NISSAN MOTOR CO., U.S.A.
