Bulb Replacement, Removal and Installation: Removal

Wiring diagram. Refer to INTERIOR LIGHTS .

1. Remove instrument lower passenger panel. Refer to INSTRUMENT PANEL - G35 SEDAN
2. Turn bulb socket left to release lock and remove it.

   Glove box lamp: 12V - 1.4W

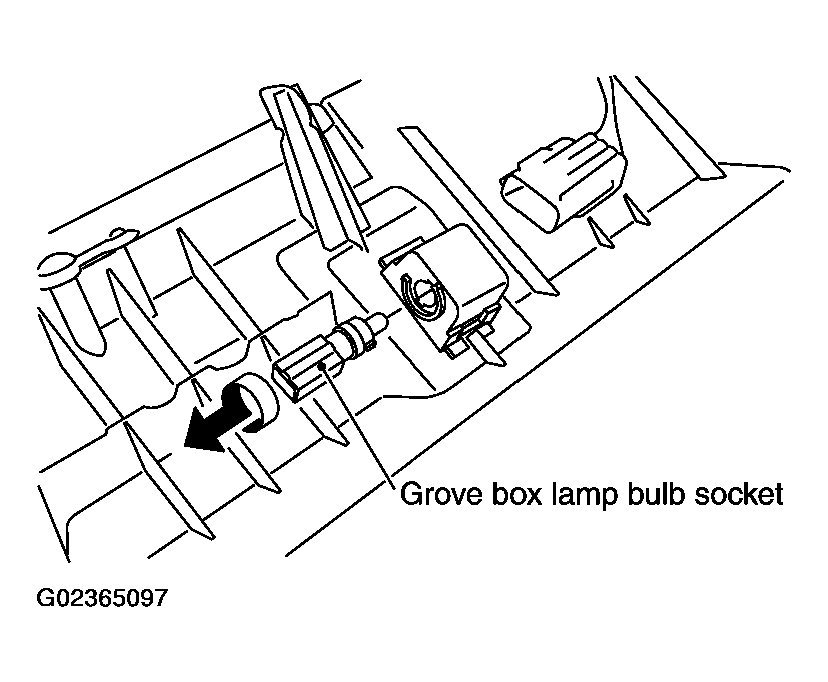

   Fig 1: Turning Bulb Socket Left To Releasing Lock And Removing It

   Courtesy of NISSAN MOTOR CO., U.S.A.
