Bulb Replacement, Removal and Installation: Removal

Wiring diagram. Refer to INTERIOR LIGHTS .

1. Remove console finisher (A/T) or console boot (M/T). Refer to INSTRUMENT PANEL - G35 SEDAN .
2. Turn bulb socket to left to release lock and remove it.

   Ashtray illumination: 12V - 1.4W

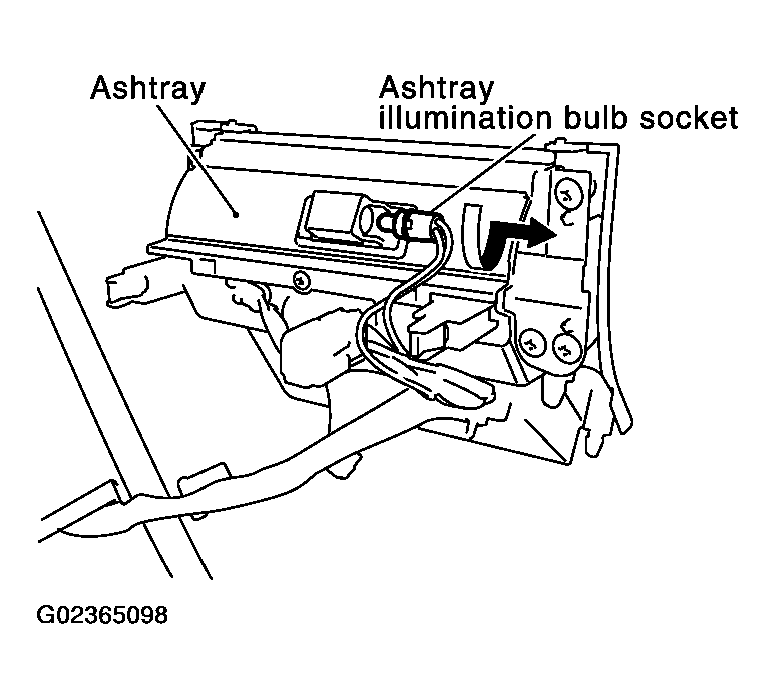

   Fig 1: Turning Bulb Socket Left To Releasing Lock And Remove It

   Courtesy of NISSAN MOTOR CO., U.S.A.
