Center Console (M/T Models): Notes

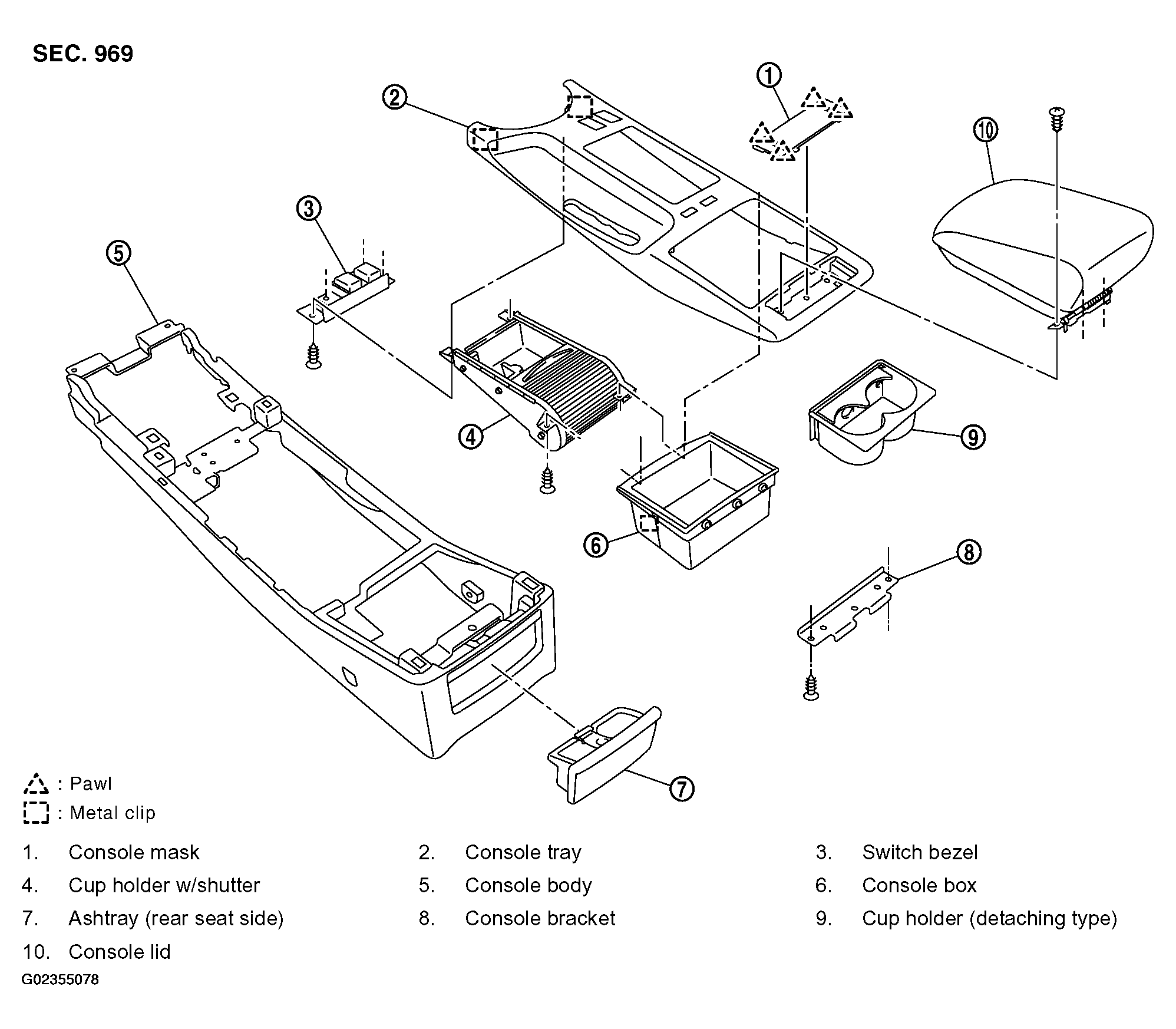

Fig 1: Disassembling/Assembling Center Console (M/T Models)

G02355078

Courtesy of NISSAN MOTOR CO., U.S.A.
