Wiring Diagram - COMPASS -

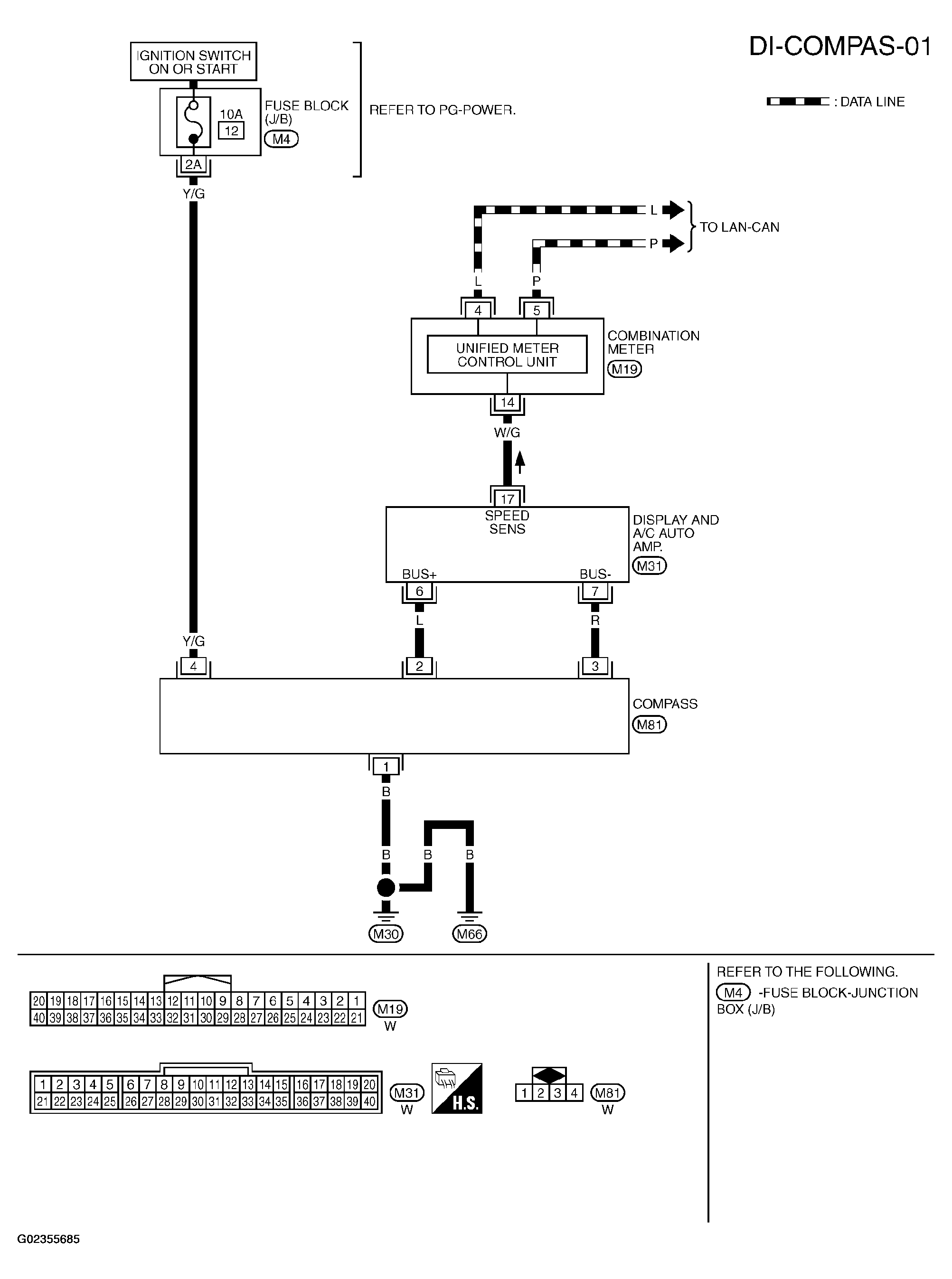

Fig 1: Wiring Diagram - DI-COMPAS-01

G02355685

Courtesy of NISSAN MOTOR CO., U.S.A.
