Removal and Installation of Compass: Removal

  1. Remove instrument panel and pad. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove screw (1), and remove compass.

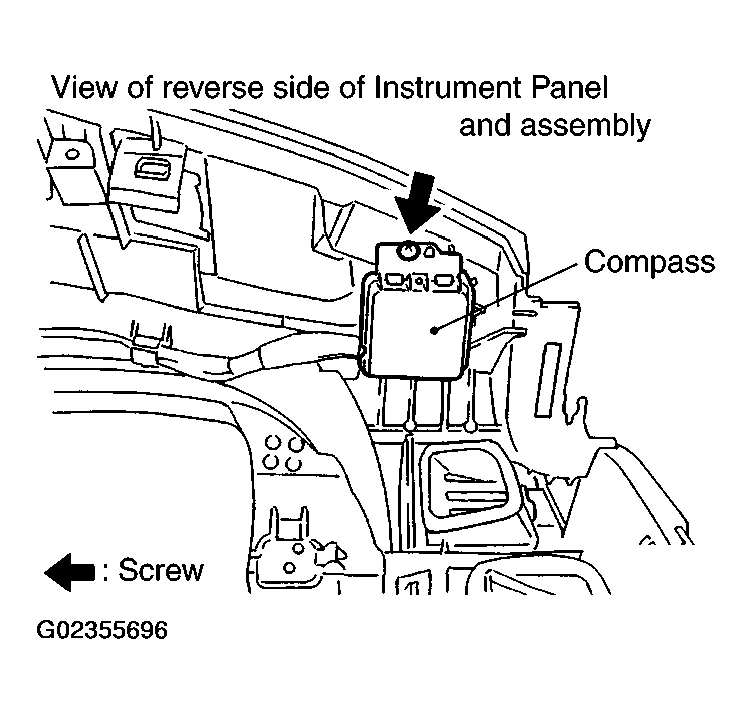

    Fig 1: Removing/Installing Compass
    G02355696Courtesy of NISSAN MOTOR CO., U.S.A.
