Wiring Diagram - METER -

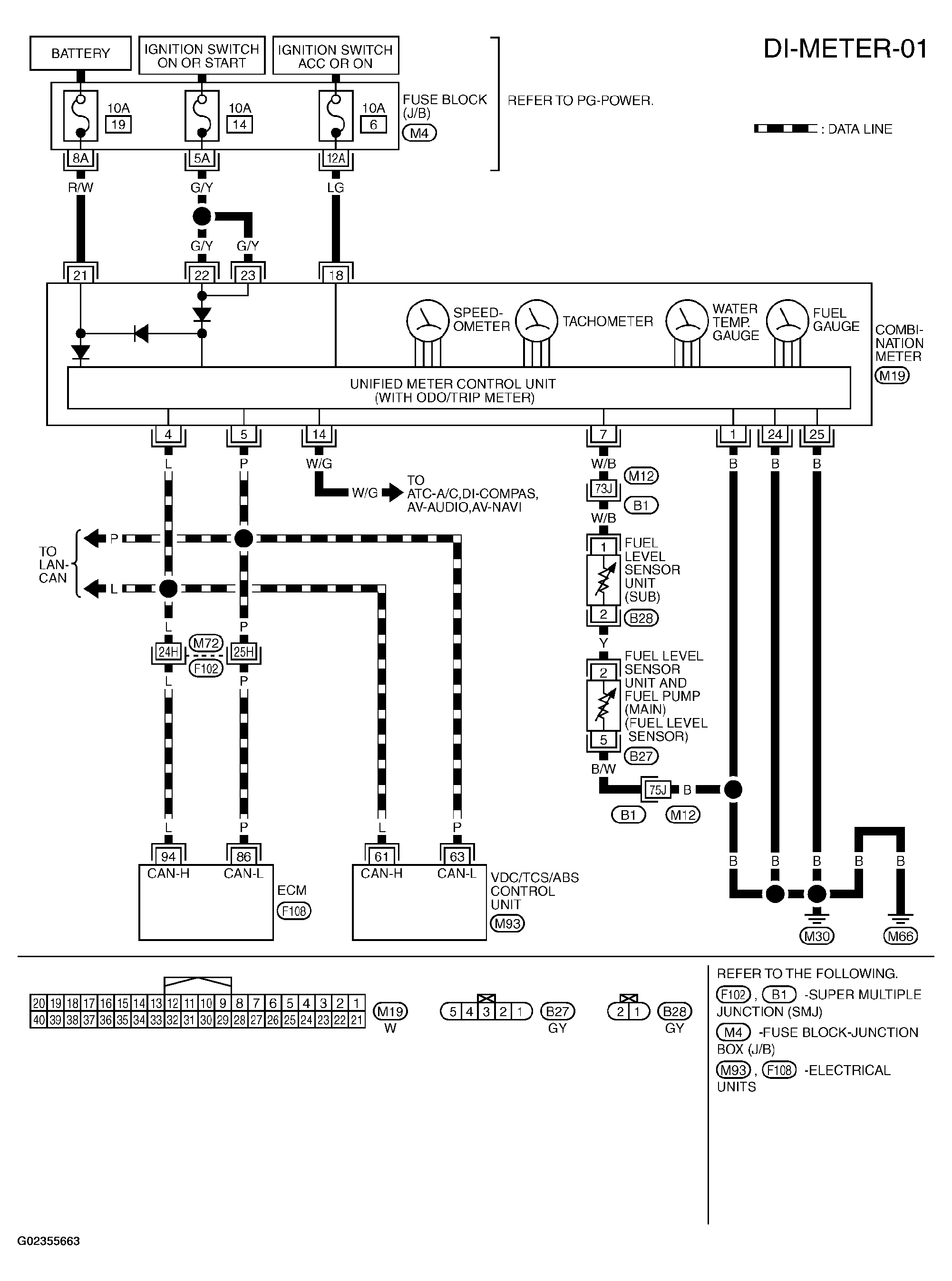

Fig 1: Wiring Diagram - DI-METER-01

G02355663

Courtesy of NISSAN MOTOR CO., U.S.A.
