Preliminary Check

CHECK WARNING LAMP ILLUMINATION
1. Turn ignition switch ON.
2. Make sure that warning lamps (such as MIL and oil pressure warning lamp) illuminate.
Do warning lamps illuminate?
1. YES: GO TO 2.
2. NO: Check power supply circuit of combination meter when ignition switch is ON. Refer to "Power Supply and Ground Circuit Inspection ".
CHECK SELF-DIAGNOSIS OPERATION
Perform combination meter self-diagnosis. Refer to "SELF-DIAGNOSIS FUNCTION ".

Does self-diagnosis function operate?
1. YES: GO TO 4 .
2. NO: GO TO 3.
CHECK POWER SUPPLY AND GROUND CIRCUIT
Check power supply and ground circuit. Refer to "Power Supply and Ground Circuit Inspection ".

OK or NG
1. OK: Replace combination meter.
2. NG: Repair as need.
CHECK ODO/TRIP METER OPERATION
Check segment display status of odo/trip meter and A/T indicator.

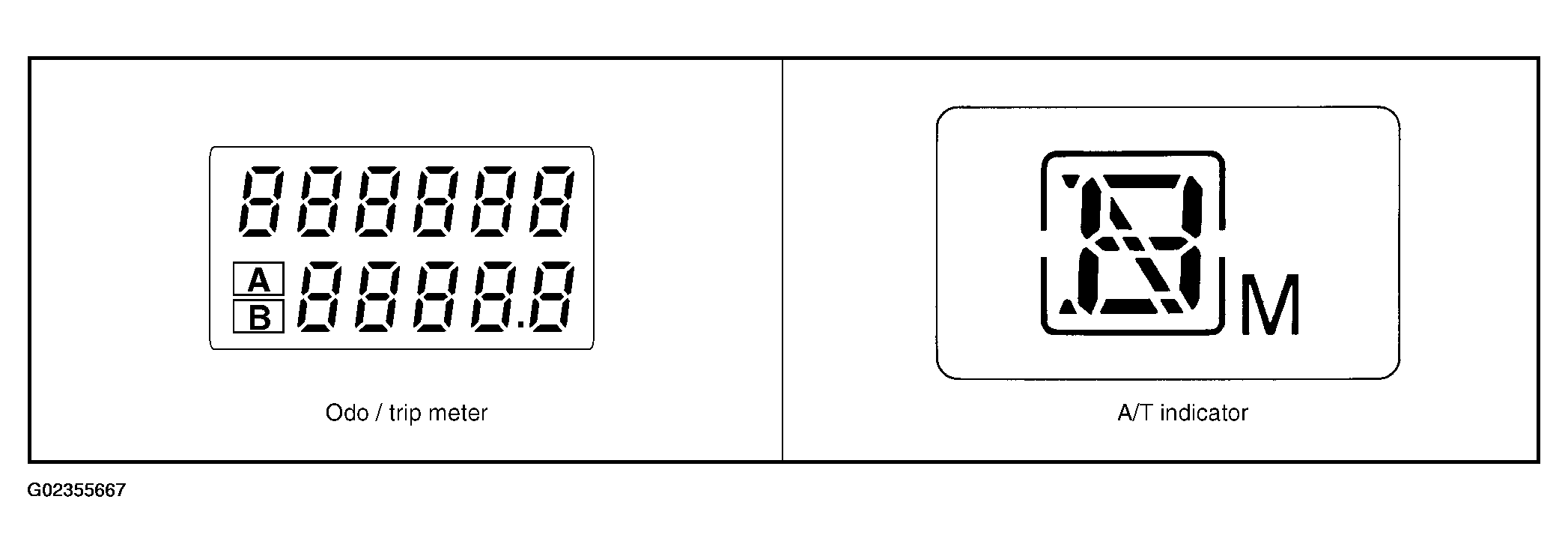

Fig 1: Display Status Of Odo/Trip Meter And A/T Indicator
Courtesy of NISSAN MOTOR CO., U.S.A.

Is the display normal?
1. YES: GO TO 5.
2. NO: Replace combination meter.

CHECK FUEL WARNING LAMP ILLUMINATION

While checking fuel warning lamp, confirm illumination of fuel warning lamp.

FUEL WARNING LAMP CONDITION

Condition of odo/trip meter switch	Fuel warning lamp
Pushed	Does not illuminate.
Released	Illuminates.

OK or NG

OK: GO TO 6.
NG: Replace combination meter.

CHECK METER CIRCUIT
Check indication of each meter/gauge in self-diagnosis mode.

OK or NG
1. OK: Go to "SYMPTOM CHART ".
2. NG: Replace combination meter.

  Fig 2: Checking Indication Of Each Meter/Gauge In Self-Diagnosis Mode
  Courtesy of NISSAN MOTOR CO., U.S.A.
