Operation Procedure
- Turn the ignition switch ON, and switch the odo/trip meter to "trip A" or "trip B".NOTE: If the diagnosis function is activated with the trip meter A displayed, the mileage on the trip meter A will indicate 0000.0 miles, but the actual trip mileage will be retained. (Trip B operates the same way.)
- Turn ignition switch OFF.
- While pushing the odo/trip meter switch, turn ignition switch ON again.
- Make sure that the trip meter displays "0000.0".
- Push the odo/trip meter switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

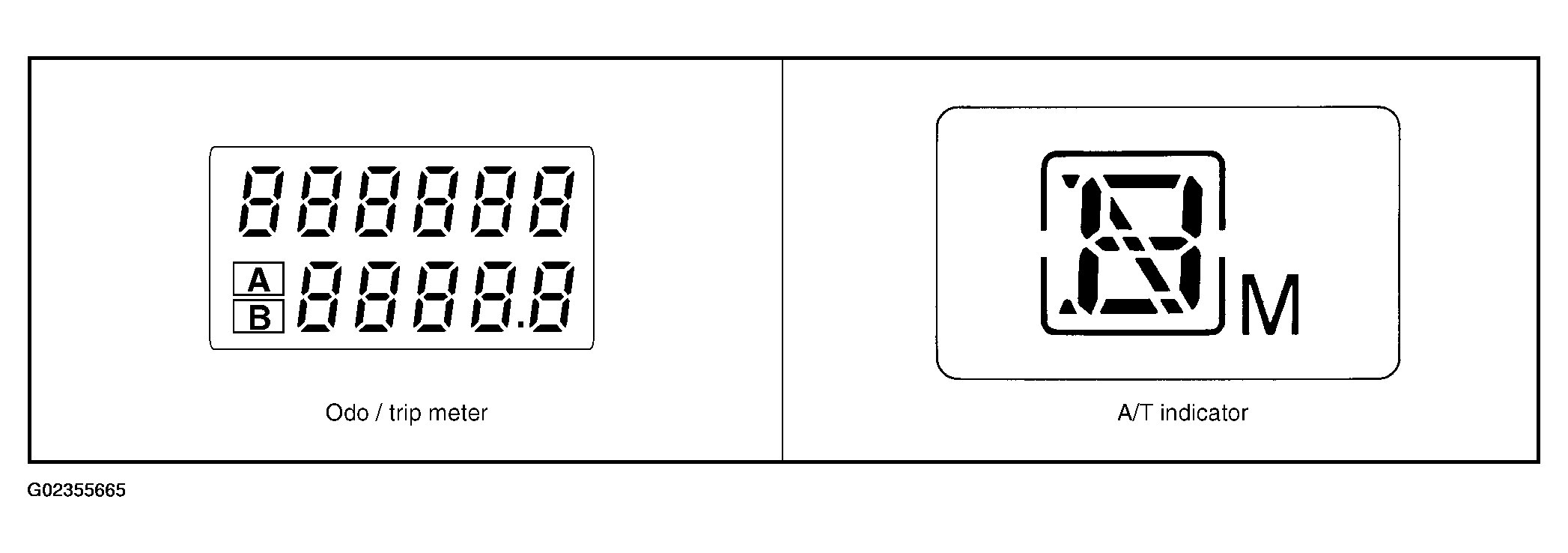

- All the segments on the odo/trip meter and A/T indicator illuminate, and simultaneously the low-fuel warning lamp indicator illuminates. At this time, the unified meter control unit is turned to diagnosis mode.NOTE: If any of the segments is not displayed, replace the combination meter.
- Push the odo/trip meter switch. Each meter/gauge should indicate as shown in the figure while pushing odo/trip meter switch. (At this time, the low-fuel warning lamp goes off).
