Removal and Installation for Combination Meter: Removal

  1. Remove steering column cover. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove lighting and turn signal switch. Refer to LIGHTING AND TURN SIGNAL SWITCH - G35 SEDAN .
  3. Remove front wiper and washer switch. Refer to REMOVAL AND INSTALLATION OF FRONT WIPER AND W .
  4. Remove instrument lower driver panel. Refer to INSTRUMENT PANEL ASSEMBLY .
  5. Remove the screw (4) and remove cluster lid A and combination meter assembly. Refer to INSTRUMENT PANEL ASSEMBLY .
  6. Disconnect connectors and remove combination meter.
  7. Remove the screw (1) and remove Intelligent Key warning buzzer (with Intelligent Key).

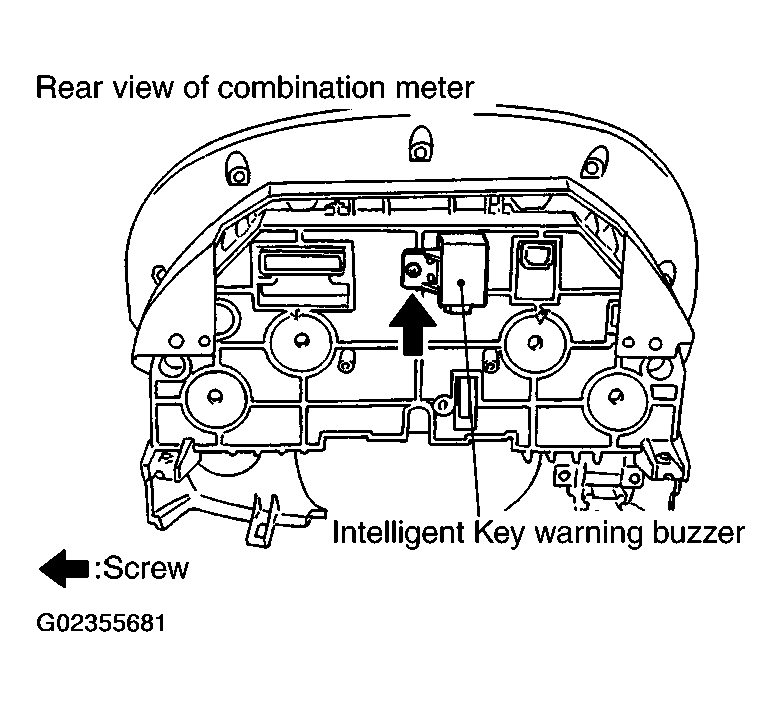

    Fig 1: Removing Intelligent Key Warning Buzzer
    G02355681Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove the screw (9) and disassembly cluster lid A and combination meter.

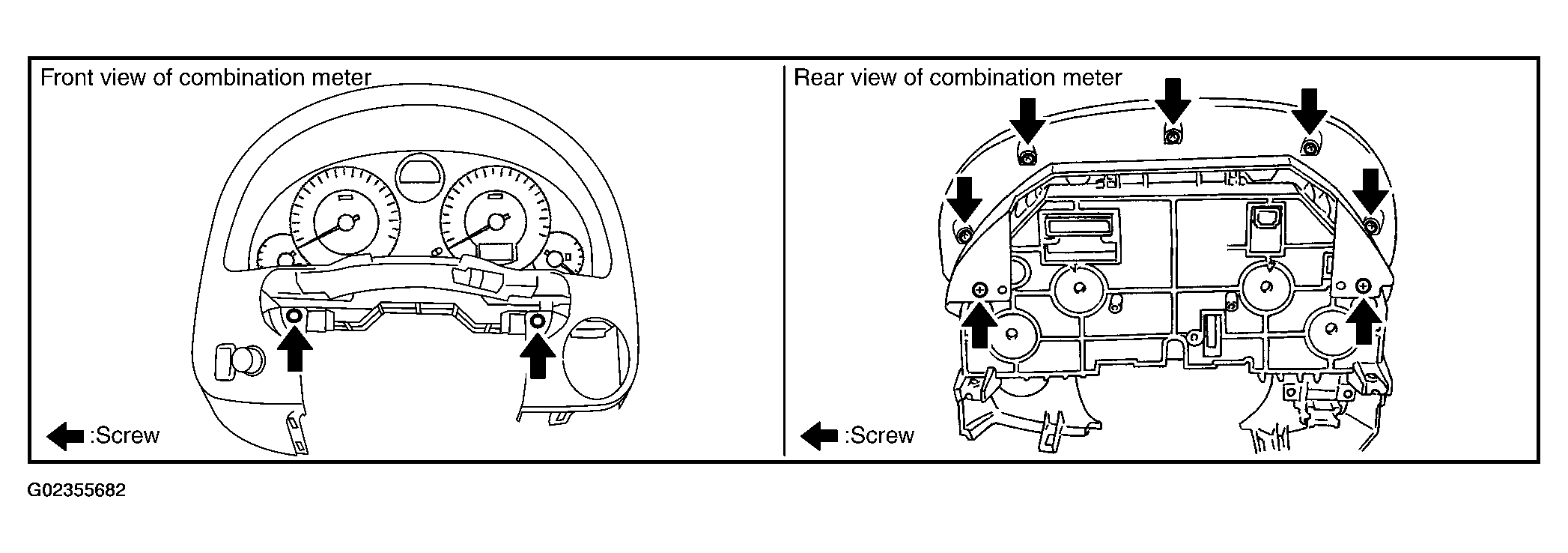

    Fig 2: Removing Screws And Disassembling Cluster Lid A And Combination Meter
    G02355682Courtesy of NISSAN MOTOR CO., U.S.A.
