Removal and Installation of Clock: Removal

  1. Remove the display and A/C amp. and clock assembly. Refer to REMOVAL AND INSTALLATION OF DISPLAY AND A/C A .
    Fig 1: Removing Display And A/C Amp. And Clock Assembly
    G02355748Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Disconnect clock connector.
  3. Disengage tabs (4), and remove clock.

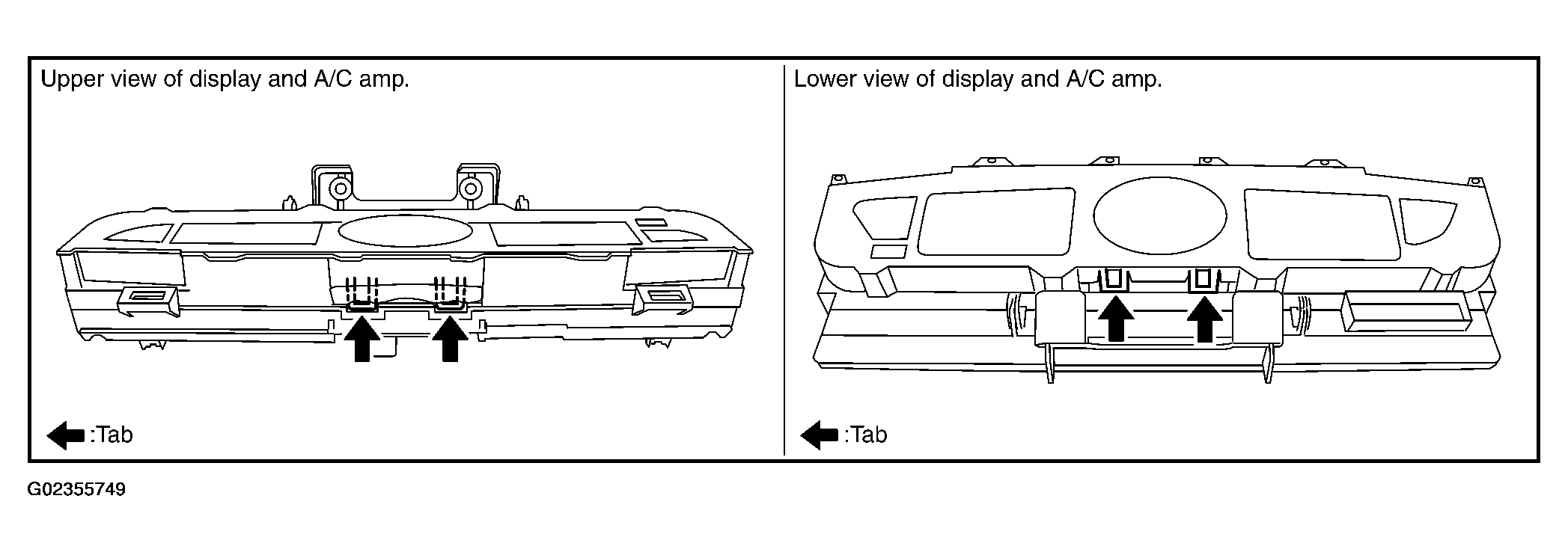

    Fig 2: Disengaging Tabs And Removing Clock
    G02355749Courtesy of NISSAN MOTOR CO., U.S.A.
