Wiring Diagram - TURN -

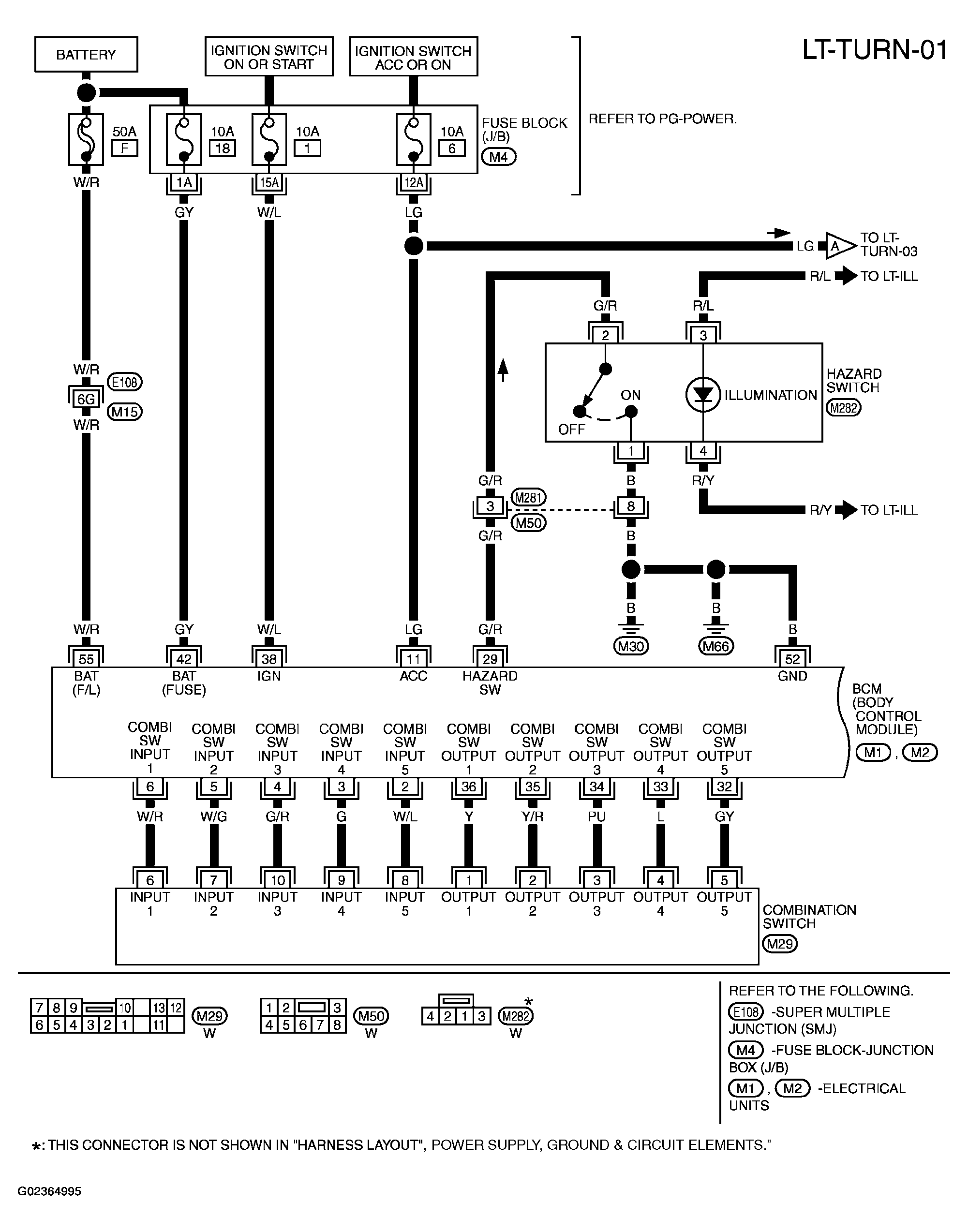

Fig 1: Wiring Diagram - LT-TURN-01
G02364995Courtesy of NISSAN MOTOR CO., U.S.A.

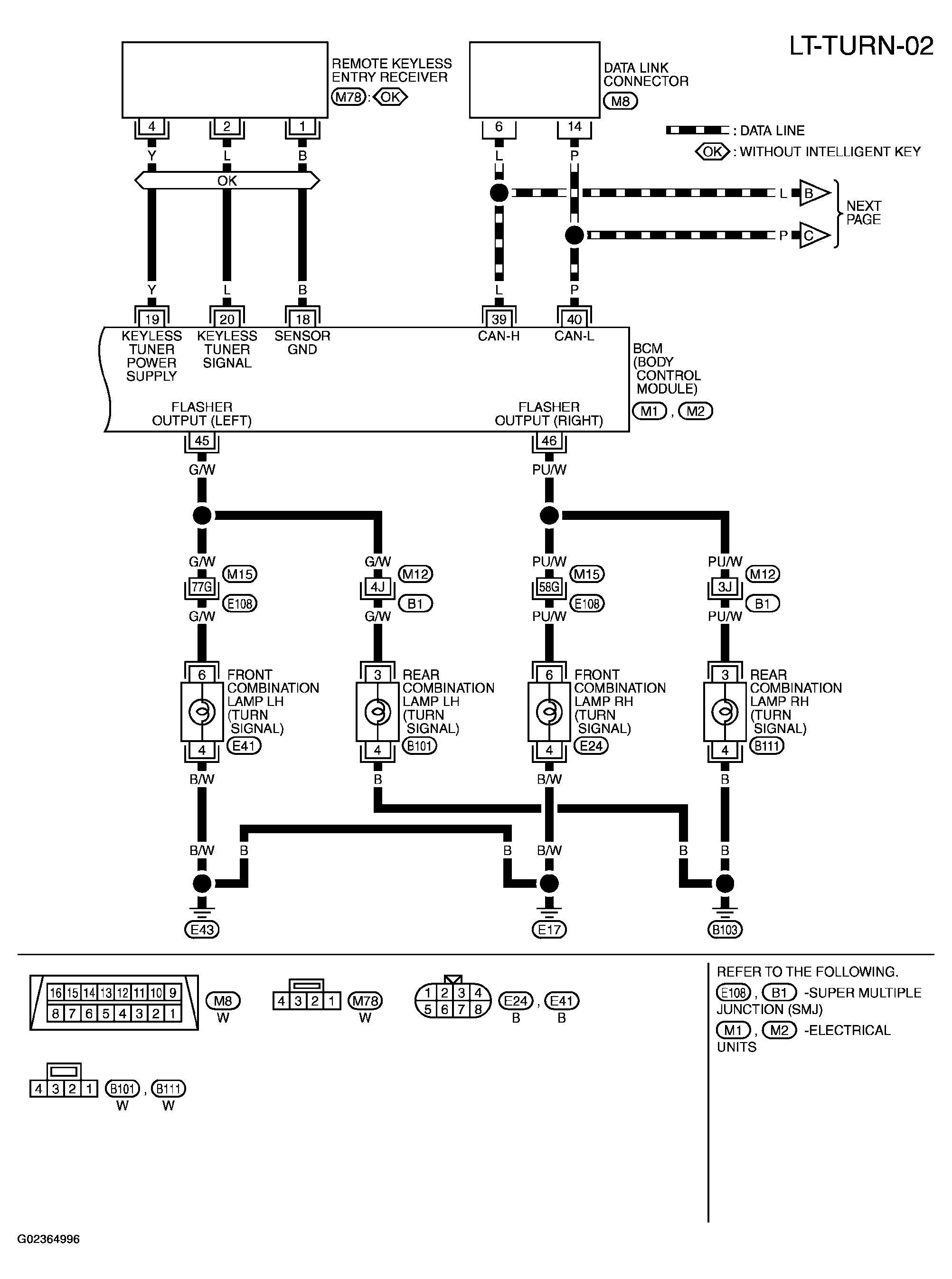

Fig 2: Wiring Diagram - LT-TURN-02
G02364996Courtesy of NISSAN MOTOR CO., U.S.A.

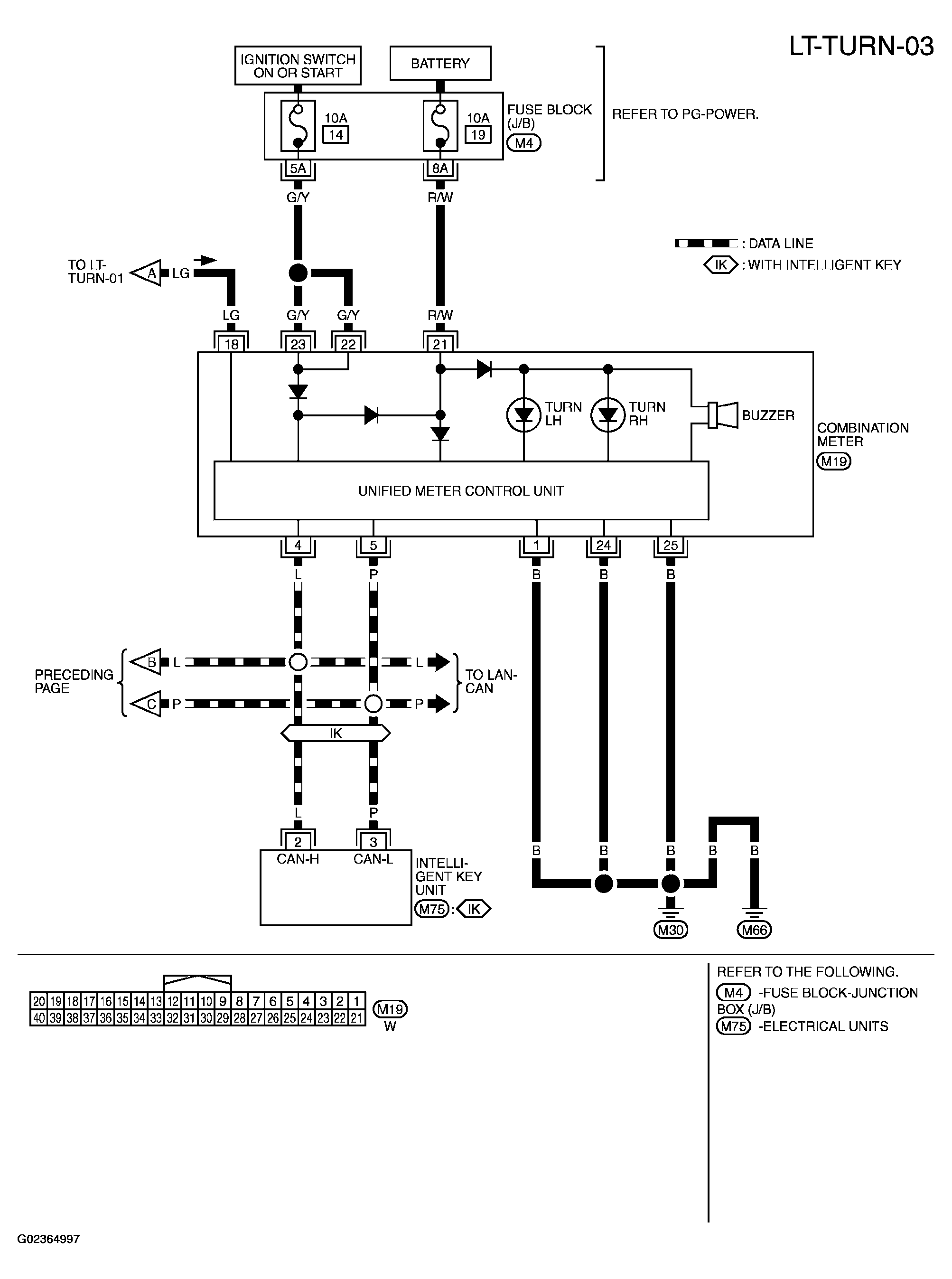

Fig 3: Wiring Diagram - LT-TURN-03
G02364997Courtesy of NISSAN MOTOR CO., U.S.A.
